Draw a circuit diagram that adds 4 separate input signals and then amplifies the added signal by a factor of 135. Please show all work.

science physics

Answer 1

Answer #1

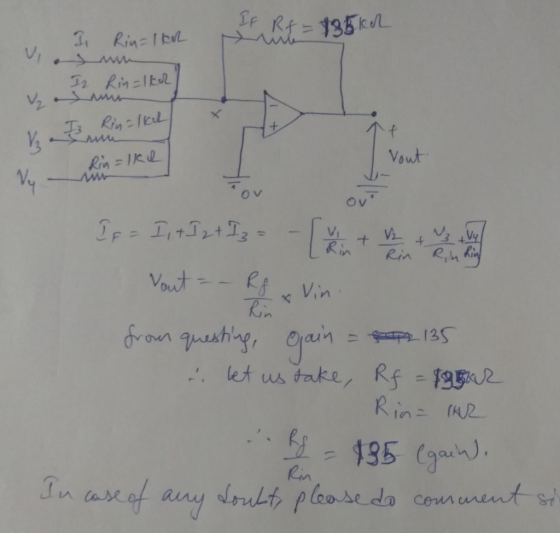

this is designed using op-amp Rialto 个f Vout ov R, Rin LA
