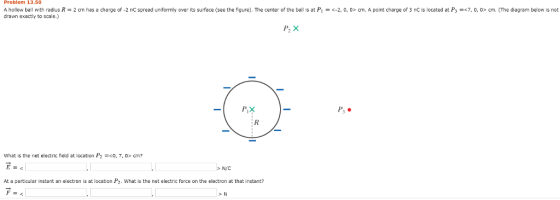

Problem 13.50 A hollow ball with radius drawn exactly to scale.) = 2 cm has a...

Question

Question

science physics

Answer 1

Answer #1

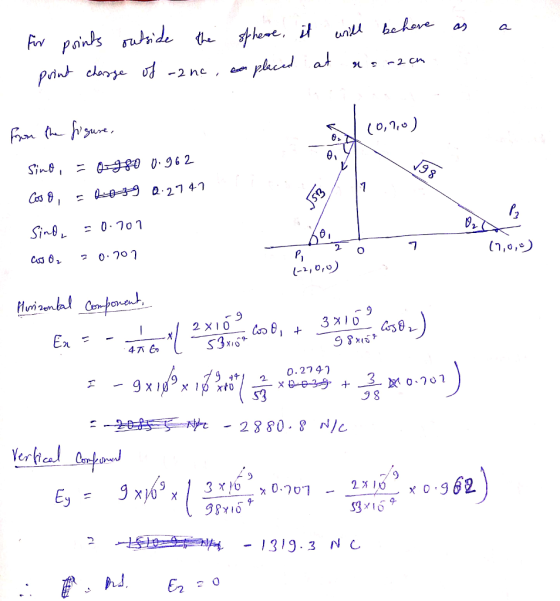

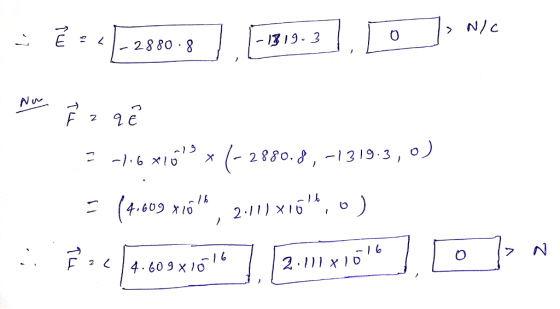

2 O -, 0,o OL 98Y10 sgメ169- - 1319.3 0 F つく ! 4.609x10 2.11x

Answer 2

Similar Homework Help Questions

A hollow ball with radius R- 2 cm has a charge of -2 nC spread uniformly...

A hollow ball with radius R- 2 cm has a charge of -2 nC spread uniformly over its surface (see the figure). The center of the ball is at Pt --3, o, 0> cm. A point charge of 5 nC is located at Ps-<3, 0, 0> cm. (The diagram below is not drawn exactly to scale) Р, Х P3 . What is the net electric field at location P2-0,5, 0 cm? x N/C At a particular instant an electron is...
A hollow ball with radius R = 2 cm has a charge of-4 nC spread uniformly over its surface (see the figure).

A hollow ball with radius R = 2 cm has a charge of-4 nC spread uniformly over its surface (see the figure). The center of the ball is at P1=<-1, 0, 0> cm. A point charge of 6 nC is located at P3=<5, 0, 0> cm. (The diagram below is not drawn exactly to scale.)What is the net electric field at location P2=<0,8,0>cm? At a particular instant an electron is at location P2. What is the net electric force on the...
A hollow ball with radius R = 2 cm has a charge of -1 nC spread uniformly over its surface (see the figure).

A hollow ball with radius R = 2 cm has a charge of -1 nC spread uniformly over its surface (see the figure). The center of the ball is at P1 = <-4, 0, 0> cm. A point charge of 5 nC is located at P3 =<7, 0, 0>cm. (The diagram below is not drawn exactly to scale.) What is the net electric field at location P2 = <0, 6, 0> cm? At a particular instant an electron is at location P2....

A hollow ball with radius R = 2 cm has a charge of -4 nC spread uniformly over its surface (see the figure).

A hollow ball with radius R = 2 cm has a charge of -4 nC spread uniformly over its surface (see the figure). The center of the ball is at P1 = <-4, 0, 0> cm. A point charge of 5 nC is located at P3 =<6, 0, 0>cm. (The diagram below is not drawn exactly to scale.) What is the net electric field at location P2=<0, 0,0 >cm? At a particular instant an electron is at location P2. What is the...
A thin ball shell is shaped like a hollow ball with a radius of 26.6 cm....

A thin ball shell is shaped like a hollow ball with a radius of 26.6 cm. The material is a neutral conductor. A point charge of 395 nC is placed in the center of the ball. How many kN / C is the electric field just outside the ball?
3. A thin, hollow metal sphere with a radius of 11.0 cm carries a net charge...

3. A thin, hollow metal sphere with a radius of 11.0 cm carries a net charge of-35.0 HC. Location P is enved 8.0 cm to the right of the swrface of the sphere. Location P2 is located inside the sphere, exactly halfway b the sphere's center and surface a. (I pt.) On the diagram below, neatly draw between 12 and 16 electric field lines. Indicate direction o field lines with arrow heads b. ( pt.) With a different color pen/pencil...

A hollow metal sphere has an inner radius of 6 cm and an outer radius of 10 cm. The sphere has a charge of +30 nC.

A hollow metal sphere has an inner radius of 6 cm and an outer radius of 10 cm. The sphere has a charge of +30 nC. Inside the sphere is a charged particle located 3 cm from the center of the sphere with a charge of -10 nC. What is the electric field strength at a point P at distance of 20 cm from the center of the sphere?
4. A hollow, metallic sphere with a 25.0 cm radius carries a net charge of 20.0...

4. A hollow, metallic sphere with a 25.0 cm radius carries a net charge of 20.0 uC. Assuming electrostatic conditions, find the electric field value at the following distances from the sphere's center: a) 25.0 cm (the surface of the sphere) b) 50.0 cm (outside the sphere, twice the distance from its center) c) 10.0 cm (inside the sphere) 5. Under normal atmospheric conditions, there exists a weak electric field near the earth's surface, pointing vertically downward, whose value is...
A hollow conducting spherical shell of radius 1.20 cm carries a charge of -5.20 nC. What...

A hollow conducting spherical shell of radius 1.20 cm carries a charge of -5.20 nC. What is the electric field at a distance of 1.50 cm from the center of the shell?

A hollow sphere has a uniform volume charge density of 1.78 nC/m3. The inner radius is...

A hollow sphere has a uniform volume charge density of 1.78 nC/m3. The inner radius is a = 10.3 cm and the outer radius is b = 41.2 cm. +4 +t1 +b+t A hollow sphere has a uniform volume charge density of 1.78 nC/m. The inner radius is a= 10.3 cm and the outer radius is b= 41.2 cm What is the magnitude of the electric field at 16.5 cm from the center of the sphere? What is the magnitude...
