A small insect is placed 5.50 cm from a 6.00-cm-focal-length lens. a) Calculate the position of...

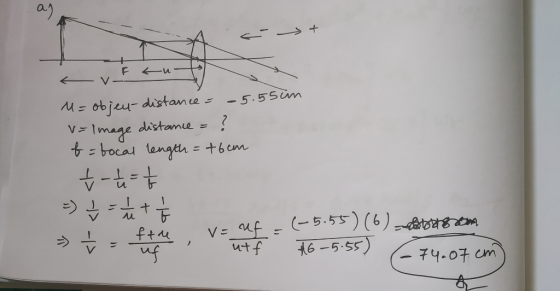

A small insect is placed 5.50 cm from a 6.00-cm-focal-length lens. a) Calculate the position of the image. Follow the sign conventions. Express your answer using two significant figures and include appropriate units. b) Calculate the angular magnification. Express your answer using two significant figures.
Homework Answers
Add Answer to:
A small insect is placed 5.50 cm from a 6.00-cm-focal-length lens. a) Calculate the position of...
A small insect is placed 4.35 cm from a 5.00-cm-focal-length lens. A) Calculate the position of...
A small insect is placed 4.35 cm from a 5.00-cm-focal-length lens. A) Calculate the position of the image. Follow the sign conventions. Express your answer using two significant figures and include the appropriate units. B) Calculate the angular magnification. Express your answer using two significant figures.
A small insect is placed 5.45 cm from a 6.00-cm-focal-length lens. Part A Calculate the position...
A small insect is placed 5.45 cm from a 6.00-cm-focal-length lens. Part A Calculate the position of the image. Follow the sign conventions. Part B Calculate the angular magnification.
A small insect is placed 6.50 cm from a 7.00-cm-focal-length lens. Calculate the angular magnification. Express...
A small insect is placed 6.50 cm from a 7.00-cm-focal-length
lens. Calculate the angular magnification. Express your answer
using two significant figures.
calculate the angular magnification, the distance of the image is
-91cm
<Ch 25 HW Problem 25.26 A small insect is placed 6.50 cm from a 7.00-cm-focal-length lens.
A small insect is placed 5.25 cm from a +6.16 cm focal-length lens. (Use the correct...
A small insect is placed 5.25 cm from a +6.16 cm focal-length lens. (Use the correct sign conventions for the following answers.) (a) Calculate the position of the image. cm (from the lens) (b) Calculate the magnification. x
Alighted candle is placed 36 cm in front of a converging lens of focal length 12...
Alighted candle is placed 36 cm in front of a converging lens of focal length 12 cm, which in turn is 58 cm in front of another converging lens of focal length 17 cm (Figure 11 Part A Calculate the image distance of the final image relative the second lens. Follow the sign conventions. Express your answer to two significant figures and include the appropriate units. ? de = 32 m Submit Previous Answers Best Answer X Incorrect; Try Again;...
A small insect is placed 7.65 cm from a 8.00 cm -focal-length lens. Calculate the angular...
A small insect is placed 7.65 cm from a 8.00 cm -focal-length lens. Calculate the angular magnification.
Two lenses, one converging with focal length 20.0 cm and one diverging with focal length 10.0...
Two lenses, one converging with focal length 20.0 cm and one diverging with focal length 10.0 cm , are placed 25.0 cm apart. An object is placed 60.0 cm in front of the converging lens. Part A Find the final image distance from second lens. Follow the sign conventions. Express your answer to two significant figures and include the appropriate units. OD Å ? di2 = 1 cm Submit Previous Answers Request Answer X Incorrect; Try Again; 5 attempts remaining...
A stamp collector uses a converging lens with focal length 29 cm to view a stamp...
A stamp collector uses a converging lens with focal length 29 cm to view a stamp 16 cm cm in front of the lens. A: Find the image distance. Follow the sign conventions. B: What is the magnification? Follow the sign conventions. Express your answer using two significant figures.
Problem 23.61 Two lenses, one converging with focal length 20.5 cm and one diverging with focal...
Problem 23.61 Two lenses, one converging with focal length 20.5 cm and one diverging with focal length 11.5 cm , are placed 25.0 cm apart An object is placed 60.0 cm in front of the converging lens. Part A Find the final image distance from second lens. Follow the sign conventions. Express your answer to two significant figures and include the appropriate units. d2 13 cm ubmit Previous Answers Correct Part B Determine the magnification of the final image formed....
Problem 23.59 12 of 15 Part A Constants Two 21.7-cm-focal-length converging lenses ar placed 16.5 cm...
Problem 23.59 12 of 15 Part A Constants Two 21.7-cm-focal-length converging lenses ar placed 16.5 cm apart. An object is placed 35.0 cm in front of one lens. Where will the final image formed by the second lens be located? Determine the image distance from the second lens. Follow the sign conventions. Express your answer to three significant figures and include the appropriate units dp-Value Units Submit Request Answer Part B What is the total magnification? Follow the sign conv...
A small insect is placed 6.50 cm from a 7.00-cm-focal-length
lens. Calculate the angular magnification. Express your answer
using two significant figures.
calculate the angular magnification, the distance of the image is
-91cm
<Ch 25 HW Problem 25.26 A small insect is placed 6.50 cm from a 7.00-cm-focal-length lens.
Alighted candle is placed 36 cm in front of a converging lens of focal length 12 cm, which in turn is 58 cm in front of another converging lens of focal length 17 cm (Figure 11 Part A Calculate the image distance of the final image relative the second lens. Follow the sign conventions. Express your answer to two significant figures and include the appropriate units. ? de = 32 m Submit Previous Answers Best Answer X Incorrect; Try Again;...
Two lenses, one converging with focal length 20.0 cm and one diverging with focal length 10.0 cm , are placed 25.0 cm apart. An object is placed 60.0 cm in front of the converging lens. Part A Find the final image distance from second lens. Follow the sign conventions. Express your answer to two significant figures and include the appropriate units. OD Å ? di2 = 1 cm Submit Previous Answers Request Answer X Incorrect; Try Again; 5 attempts remaining...
Problem 23.61 Two lenses, one converging with focal length 20.5 cm and one diverging with focal length 11.5 cm , are placed 25.0 cm apart An object is placed 60.0 cm in front of the converging lens. Part A Find the final image distance from second lens. Follow the sign conventions. Express your answer to two significant figures and include the appropriate units. d2 13 cm ubmit Previous Answers Correct Part B Determine the magnification of the final image formed....
Problem 23.59 12 of 15 Part A Constants Two 21.7-cm-focal-length converging lenses ar placed 16.5 cm apart. An object is placed 35.0 cm in front of one lens. Where will the final image formed by the second lens be located? Determine the image distance from the second lens. Follow the sign conventions. Express your answer to three significant figures and include the appropriate units dp-Value Units Submit Request Answer Part B What is the total magnification? Follow the sign conv...
