Homework Answers

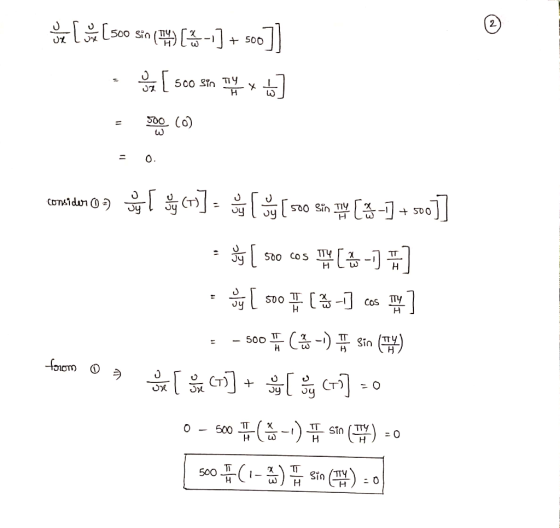

![2 Sin +500 5co 오n ㅠy COTsidun H . 퓨[뉴-] 퓨] Soo Cos NY H TT H TY H COS H Sin (T모 H 500 T ㅠ Sto (TTY H 500 H ( TT 500 TT Sio 끄](http://img.homeworklib.com/images/221e2ec3-6b58-4466-8486-4885c2171902.png?x-oss-process=image/resize,w_560)
Add Answer to:
Steady, 2-D conduction takes place in a rectangular solid having height (in the y-direction), H, and...
Steady, 2-D conduction takes place in a rectangular solid having height (in the y-direction), H, and...

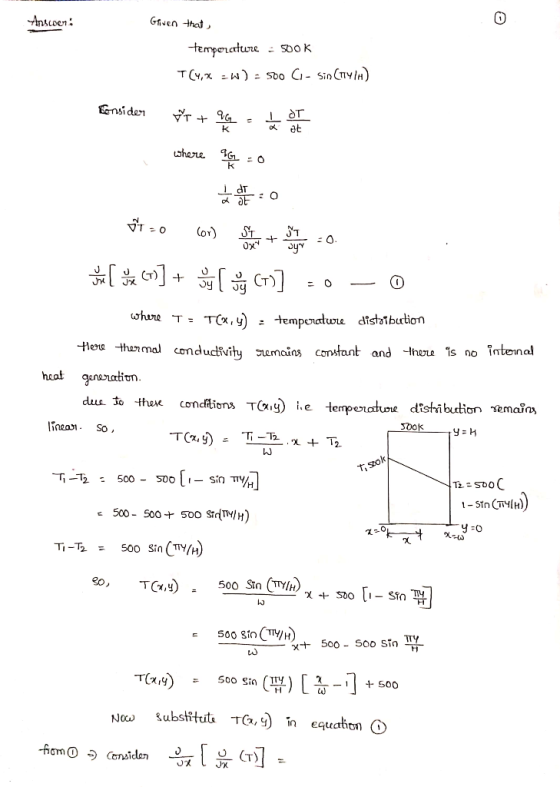

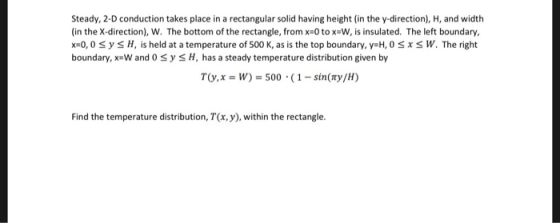

Steady, 2-D conduction takes place in a rectangular solid having height (in the y-direction), H, and width (in the X-direction), W. The bottom of the rectangle, from x-0 to x-W, is insulated. The left boundary, x0, 0 ys H, is held at a temperature of 500 K, as is the top boundary, y=H, 0 sxs W. The right boundary, x=W and0 Sys H, has a steady temperature distribution given by TOy,x W) 500 (1-sin(ny/H) Find the temperature distribution, T(x, y),...
Steady, 2-D conduction takes place in a rectangular solid having height (in the y-direction), H, and...
Steady, 2-D conduction takes place in a rectangular solid having height (in the y-direction), H, and width (in the X-direction), W. The bottom of the rectangle, from x-0 to x-W, is insulated. The left boundary, x0, 0 ys H, is held at a temperature of 500 K, as is the top boundary, y=H, 0 sxs W. The right boundary, x=W and0 Sys H, has a steady temperature distribution given by TOy,x W) 500 (1-sin(ny/H) Find the temperature distribution, T(x, y),...
Steady, 2-D conduction takes place in a rectangular solid having height (in the y-direction), H, and...
Steady, 2-D conduction takes place in a rectangular solid having height (in the y-direction), H, and width (in the X-direction), W. The bottom of the rectangle, from x=0 to x-W, is insulated. The left boundary x-0, 0 y s H, is held at a temperature of 500 K, as is the top boundary, y=H, 0 s x sW. The right boundary, x=W and 0 Sys H, has a steady temperature distribution given by Ty,x W) 500 (1-sin(ny/H) Find the temperature...
3. (20 points) Denote u(ar, y) the steady-state temperature in a rectangle area 0 z 10,...
3. (20 points) Denote u(ar, y) the steady-state temperature in a rectangle area 0 z 10, 0yS 1. Find the temperature in the rectangle if the temperature on the up side is kept at 0°, the lower side at 10° while the temperature on the left side is S0)= sin(y) and the right side is insulated. Answer the following questions. (a) (10 points) Write the Dirichlet problem including the Laplace's equation in two dimensions and the boundary conditions. (b) (10...
Problem 2(30 points) Consider the steady-state temperature distribution in a square plate with dimensions 2 m...
Problem 2(30 points) Consider the steady-state temperature distribution in a square plate with dimensions 2 m x 2 m. There is a heat generation of ġ(x.y)=6x [W/my], and the thermal conductivity of k=1[W/(m-°C)]. The temperature on the top boundary is given by a piecewise function, f(x), which is defined below. x(4- x²)+10 0<x<1 | x(4- x?) + 20, 1<x<2 The bottom boundary is insulated. The temperatures on left-handed and right-handed boundary are maintained at constants 10[°C] and 20 [°C] as...
Project: 2D, S/S Heat Conduction in a Rectangle with Heat Generation Write a code in MATLAB that ...
Project: 2D, S/S Heat Conduction in a Rectangle with Heat Generation Write a code in MATLAB that can calculate the temperature inside a thin, rectangular, metal plate, T(x, y) at some selected points as shown in the figure. The temperatures at the boundaries are constant and there is heat generation inside the plate. The problem is steady- state and k = 100 W/(m·K) with L = 1m and H = 0.5 m. The equation to be solved is, 50 °C...
Consider the steady temperature T (2,y) in a rectangular plate that occupies 0 <<< 9 and...
Consider the steady temperature T (2,y) in a rectangular plate that occupies 0 <<< 9 and 0 <y<5, which is heated at constant temperature 150 at 9 and 0 along its other three sides. (a) For separation solutions T(1,y) = F(x)G(y), you are given that admissible F(1) are the eigenfunctions Fn (1) = sinh(An I) for n=1,2,... and G(y) are the eigenfunctions Gn(y) = sin(Any) for n=1,2,... A for In = (b) The solution is the superposition T(z,y) = an...
3. (7 points) Let u(x, y) be the steady-state temperature u(r, y) in a rectangular plate...
3. (7 points) Let u(x, y) be the steady-state temperature u(r, y) in a rectangular plate whose vertical r0 and 2 are insulated. When no heat escapes, we have to solve the following the boundary value problem: a(z,0) = 0, u(z,2) = x, 0 < x < 2 (a) By setting u(x, g) -X(x)Y(u), separate the equation into two ODE 0 What ane the sewr homdany condiome hoald Xe) watiy (37)2. (c) Find x(r) for the case when λ-0 and...
Two-Dimensional Steady and Transient Conduction - Cooling a very large scale microelectronic chip, A simplified representation...
Two-Dimensional Steady and Transient Conduction - Cooling a very
large scale microelectronic chip,
A simplified
representation for cooling in very large-scale integration (VLSI)
of microelectronics is shown in the sketch below. A silicon chip is
mounted in a dielectric substrate, and one surface of the system is
convectively cooled, while the reminding surfaces are well
insulated from the surrounding. The problem is rendered two
dimensional by assuming the system to be very large in the
direction perpendicular to the paper....
You will need to use program like Matlab. The upper and lower sides of the rectangular aluminum block(L-10mm, D-3mm)...
You will need to use program like Matlab.
The upper and lower sides of the rectangular aluminum block(L-10mm, D-3mm) are insulated as shown below. The left and right sides have temperature boundary conditions and convective boundary conditions, respectively. Surface temperature T 100 C, Outside te Heat transfer coefficent h 120W/(m2k) mperatureT -20 C Alumium thermal conductivity K-220 W ( Specific heat C-896J/ (kg K) k), density p 2707kg/m3, Assuming the aluminum block is a two-dimensional shape, calculate the temperature on...
Steady, 2-D conduction takes place in a rectangular solid having height (in the y-direction), H, and width (in the X-direction), W. The bottom of the rectangle, from x-0 to x-W, is insulated. The left boundary, x0, 0 ys H, is held at a temperature of 500 K, as is the top boundary, y=H, 0 sxs W. The right boundary, x=W and0 Sys H, has a steady temperature distribution given by TOy,x W) 500 (1-sin(ny/H) Find the temperature distribution, T(x, y),...
Steady, 2-D conduction takes place in a rectangular solid having height (in the y-direction), H, and width (in the X-direction), W. The bottom of the rectangle, from x-0 to x-W, is insulated. The left boundary, x0, 0 ys H, is held at a temperature of 500 K, as is the top boundary, y=H, 0 sxs W. The right boundary, x=W and0 Sys H, has a steady temperature distribution given by TOy,x W) 500 (1-sin(ny/H) Find the temperature distribution, T(x, y),...
Steady, 2-D conduction takes place in a rectangular solid having height (in the y-direction), H, and width (in the X-direction), W. The bottom of the rectangle, from x=0 to x-W, is insulated. The left boundary x-0, 0 y s H, is held at a temperature of 500 K, as is the top boundary, y=H, 0 s x sW. The right boundary, x=W and 0 Sys H, has a steady temperature distribution given by Ty,x W) 500 (1-sin(ny/H) Find the temperature...
3. (20 points) Denote u(ar, y) the steady-state temperature in a rectangle area 0 z 10, 0yS 1. Find the temperature in the rectangle if the temperature on the up side is kept at 0°, the lower side at 10° while the temperature on the left side is S0)= sin(y) and the right side is insulated. Answer the following questions. (a) (10 points) Write the Dirichlet problem including the Laplace's equation in two dimensions and the boundary conditions. (b) (10...
Problem 2(30 points) Consider the steady-state temperature distribution in a square plate with dimensions 2 m x 2 m. There is a heat generation of ġ(x.y)=6x [W/my], and the thermal conductivity of k=1[W/(m-°C)]. The temperature on the top boundary is given by a piecewise function, f(x), which is defined below. x(4- x²)+10 0<x<1 | x(4- x?) + 20, 1<x<2 The bottom boundary is insulated. The temperatures on left-handed and right-handed boundary are maintained at constants 10[°C] and 20 [°C] as...
Project: 2D, S/S Heat Conduction in a Rectangle with Heat Generation Write a code in MATLAB that can calculate the temperature inside a thin, rectangular, metal plate, T(x, y) at some selected points as shown in the figure. The temperatures at the boundaries are constant and there is heat generation inside the plate. The problem is steady- state and k = 100 W/(m·K) with L = 1m and H = 0.5 m. The equation to be solved is, 50 °C...
Consider the steady temperature T (2,y) in a rectangular plate that occupies 0 <<< 9 and 0 <y<5, which is heated at constant temperature 150 at 9 and 0 along its other three sides. (a) For separation solutions T(1,y) = F(x)G(y), you are given that admissible F(1) are the eigenfunctions Fn (1) = sinh(An I) for n=1,2,... and G(y) are the eigenfunctions Gn(y) = sin(Any) for n=1,2,... A for In = (b) The solution is the superposition T(z,y) = an...
3. (7 points) Let u(x, y) be the steady-state temperature u(r, y) in a rectangular plate whose vertical r0 and 2 are insulated. When no heat escapes, we have to solve the following the boundary value problem: a(z,0) = 0, u(z,2) = x, 0 < x < 2 (a) By setting u(x, g) -X(x)Y(u), separate the equation into two ODE 0 What ane the sewr homdany condiome hoald Xe) watiy (37)2. (c) Find x(r) for the case when λ-0 and...
Two-Dimensional Steady and Transient Conduction - Cooling a very
large scale microelectronic chip,
A simplified
representation for cooling in very large-scale integration (VLSI)
of microelectronics is shown in the sketch below. A silicon chip is
mounted in a dielectric substrate, and one surface of the system is
convectively cooled, while the reminding surfaces are well
insulated from the surrounding. The problem is rendered two
dimensional by assuming the system to be very large in the
direction perpendicular to the paper....
You will need to use program like Matlab.
The upper and lower sides of the rectangular aluminum block(L-10mm, D-3mm) are insulated as shown below. The left and right sides have temperature boundary conditions and convective boundary conditions, respectively. Surface temperature T 100 C, Outside te Heat transfer coefficent h 120W/(m2k) mperatureT -20 C Alumium thermal conductivity K-220 W ( Specific heat C-896J/ (kg K) k), density p 2707kg/m3, Assuming the aluminum block is a two-dimensional shape, calculate the temperature on...
