Homework Answers
Answer is option A.

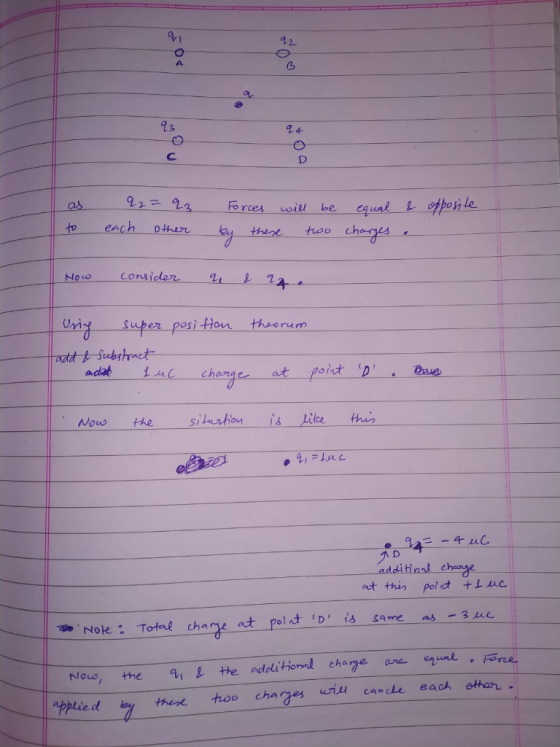

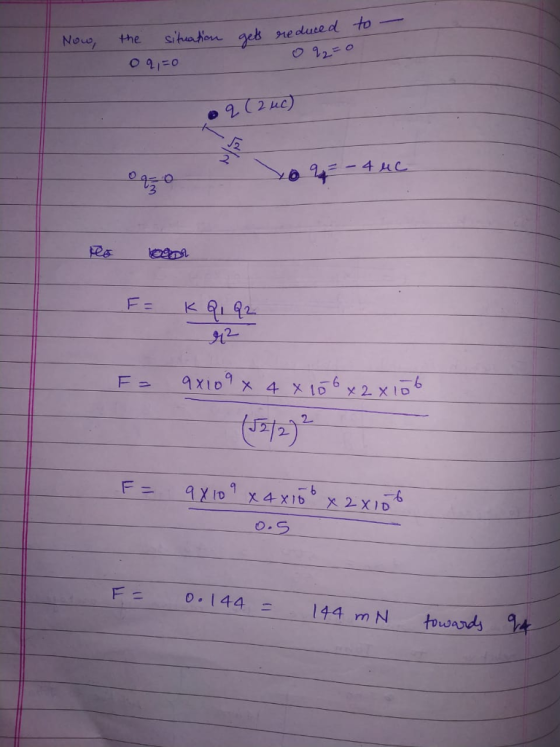

We will use superposition theorem to find the solution to this problem.
Add Answer to:

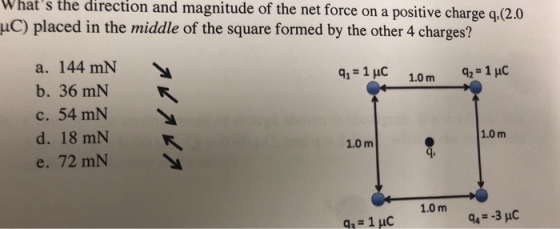

What's the direction and magnitude of the net force on a positive charge q.(2.0 uC) placed...
(Figure 1) shows five electric charges. Four charges with the magnitude of the charge 2.0 nC...
(Figure 1) shows five electric charges. Four charges with the magnitude of the charge 2.0 nC form a square with the size a = 1.5 cm . Positive charge with the magnitude of q = 8.0 nC is placed in the center of the square. What is the magnitude of the force on the 8.0 nC charge in the middle of the figure due to the four other charges? What is the direction of the force on the 8.0 nC...
(Figure 1) shows five electric charges. Four charges with themagnitude of the charge 2.0 nC...
(Figure 1) shows five electric charges. Four charges with the
magnitude of the charge 2.0 nC form a square with the size a = 1.0
cm . Positive charge with the magnitude of q = 6.5 nC is placed in
the center of the square.1. What is the magnitude of the force on the 6.5 nC charge in
the middle of the figure due to the four other charges?2. What is the direction of the force on the 6.5 nC...
la) Calculate the net force, magnitude and direction, on charge 42. Charge 42 and 43 are...
la) Calculate the net force, magnitude and direction, on charge 42. Charge 42 and 43 are separated by 25 cm, 42 to P is 20 cm and q. is above the line joining the latter by 5 cm. qi= 15 uc 5 cm 20 cm P 42 = 10 uC 43 = -25 uc 1b) Calculate the electric field (magnitude and direction) due to these 3 charges at P. 10.69 (10) NC at 30.4' SE 1e) what force (magnitude and...
(Figure 1) shows five electric charges. Four charges with the magnitude of the charge 2.0 nC form a square with the size a = 3.0 cm
(Figure 1) shows five electric charges. Four charges with the magnitude of the charge 2.0 nC form a square with the size a = 3.0 cm. Positive charge with the magnitude of q = 7.5 nC is placed in the center of the square. Part A What is the magnitude of the force on the 7.5 nC charge in the middle of the figure due to the four other charges? Part B What is the direction of the force on the 7.5 nC charge...
(Figure 1) shows five electric charges Four charges with the magnitude of the charge 2.0 nC form a square with the size a = 4.0 cm
(Figure 1) shows five electric charges Four charges with the magnitude of the charge 2.0 nC form a square with the size a = 4.0 cm. Positive charge with the magnitude of q = 4.0 nC is placed in the center of the square. Part AWhat is the magnitude of the force on the 4.0 nC charge in the middle of the figure due to the four other charges? Part B What is the direction of the force on the 4.0 nC charge...
(Figure 1) shows five electric charges. Four charges with the magnitude of the charge 2.0 nC form a square with the size α = 4.0 cm.
(Figure 1) shows five electric charges. Four charges with the magnitude of the charge 2.0 nC form a square with the size α = 4.0 cm. Positive charge with the magnitude of q = 1.5 nC is placed in the center of the square.Part A What is the magnitude of the force on the 1.5 nC charge in the middle of the figure due to the four other charges? Part B What is the direction of the force on the 1.5 nC charge...
(Figure 1) shows five electric charges. Four charges with themagnitude of the charge 2.0 nC...
(Figure 1) shows five electric charges. Four charges with the
magnitude of the charge 2.0 nC form a square with the sizea = 3.0 cm. Positive charge with the magnitude of q = 7.0 nC is placed in the center of the square.What is the direction of the force on the 7.0 nC charge in the
middle of the figure due to the four other charges? What is the
direction of the force on the 7.0 nC charge in the middle of...
Fk q-9.00 x 10 Nm c 1. Determine the force in N between two charges of...
Fk q-9.00 x 10 Nm c 1. Determine the force in N between two charges of magnitude 1.0 C each separated by 1.0 m. 2. Calculate the magnitude of the force between two charges, q-1.0 uC, q that are separated by 30.0 cm. 2.0 uC 2. 3. Determine the net force on charge q,due to q, and a, q2 0.10 m- +2.0 uC g0.15 m +1.0 uC 3 4.0 uC 4. Find the net force on charge a due to...
Calculate the magnitude of the electric force between a 1.0 uC charge and a 2.0 uC...
Calculate the magnitude of the electric force between a 1.0 uC charge and a 2.0 uC charge that are separated by 3.0 m. Calculate the electric potential energy for the same situation. Hint: Make sure that you end up with appropriate units for all quantities instead of simply tacking the units on at the end.
two point charges of magnitude positive 3 UC and -5 UCare placed along the x-axis...
two point charges of magnitude positive 3 UC and -5 UC are placed along the x-axis at x equals 0 centimeters and y equals 40 cm respectively.where must a third charge q be placed along the x axis so that it does not experience any net force because of the other two charges.
(Figure 1) shows five electric charges. Four charges with the
magnitude of the charge 2.0 nC form a square with the size a = 1.0
cm . Positive charge with the magnitude of q = 6.5 nC is placed in
the center of the square.1. What is the magnitude of the force on the 6.5 nC charge in
the middle of the figure due to the four other charges?2. What is the direction of the force on the 6.5 nC...
la) Calculate the net force, magnitude and direction, on charge 42. Charge 42 and 43 are separated by 25 cm, 42 to P is 20 cm and q. is above the line joining the latter by 5 cm. qi= 15 uc 5 cm 20 cm P 42 = 10 uC 43 = -25 uc 1b) Calculate the electric field (magnitude and direction) due to these 3 charges at P. 10.69 (10) NC at 30.4' SE 1e) what force (magnitude and...
(Figure 1) shows five electric charges. Four charges with the
magnitude of the charge 2.0 nC form a square with the sizea = 3.0 cm. Positive charge with the magnitude of q = 7.0 nC is placed in the center of the square.What is the direction of the force on the 7.0 nC charge in the
middle of the figure due to the four other charges? What is the
direction of the force on the 7.0 nC charge in the middle of...
Fk q-9.00 x 10 Nm c 1. Determine the force in N between two charges of magnitude 1.0 C each separated by 1.0 m. 2. Calculate the magnitude of the force between two charges, q-1.0 uC, q that are separated by 30.0 cm. 2.0 uC 2. 3. Determine the net force on charge q,due to q, and a, q2 0.10 m- +2.0 uC g0.15 m +1.0 uC 3 4.0 uC 4. Find the net force on charge a due to...
Calculate the magnitude of the electric force between a 1.0 uC charge and a 2.0 uC charge that are separated by 3.0 m. Calculate the electric potential energy for the same situation. Hint: Make sure that you end up with appropriate units for all quantities instead of simply tacking the units on at the end.
