Taking moment about the hinge,
Sum of moments = 0
(T x 1.5 sin(37)) - (3 x 1.5/2) x 9.8 - (100 x 1.4) = 0
Force, T = 179.51 N
Comment in case any doubt please rate my answer....
Add Answer to:

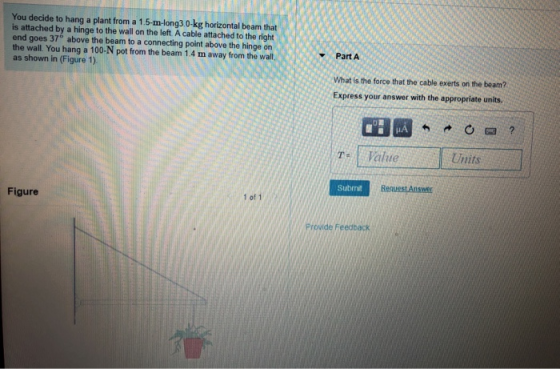

You decide to hang a plant from a 1.5-m-long30-kg horizontal beam that is attached by a...
