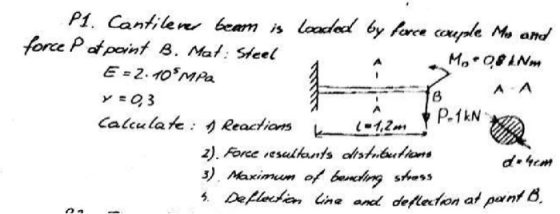

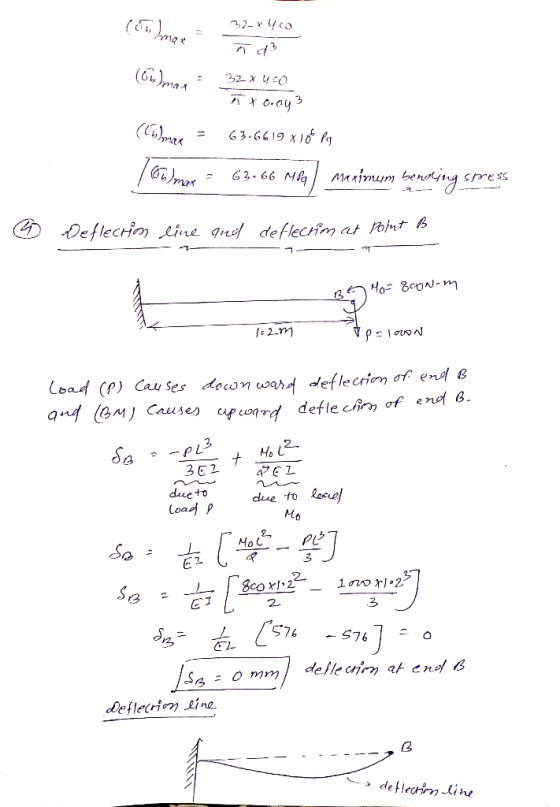

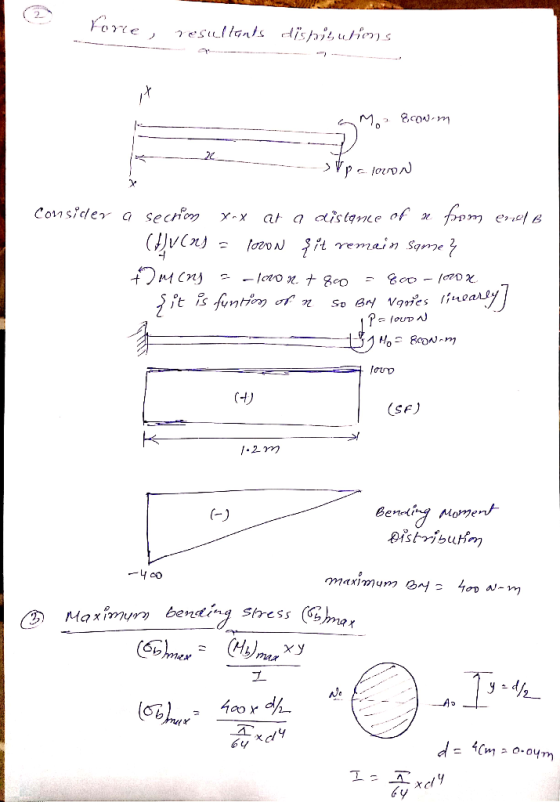

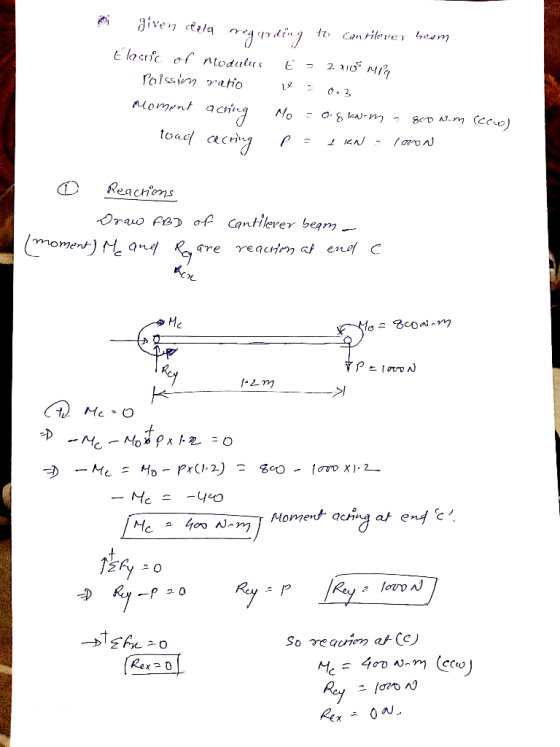

P1. Cantilen beam is loaded by fare ccuple Mo and force Pot paint B. Mat: Steel...
A Semi-infinite beam is loaded by force P at distance a from its
end, as shown in figure. (a) Obtain formulas for deflection, slope,
moment, and shear force, Using the results from part (a), consider
a 2-m-long steel bar (E = 210 GPa) of 75mm´75mm square cross
section that rests with a side on a rubber foundation with a
modulus of k = 24 MPa. If a concentrated load P = 100 kN is applied
at the distance of a...
Beam with bending loadThe beam AD below is made of steel A-36 and has a cross section as indicated. This beam is loaded between A and B with a distributed load with intensity w and at D with a vertical force P downwards. At A the beam is supported with a fixed clamping and at C with a roller bearing. The own weight of the beam may be neglected. Handle the orientation of the given x-y axis system. L=185Determine all support...
Consider the simply supported beam and loaded as shown in the M figure. Perform the following: 1. Determine the support reactions. 2. Plot SFD and BMD 3. if L=9 m, the beam will fail when the maximum shear force is Vmax= 5 kN or the maximum bending moment is Mmax=22 kN.m. Determine the largest couple moment Mo the beam will support.
P11.062 A W250 × 32.7 structural steel [E-200 GPa] wideflange shape is loaded and supported as shown. A uniformly distributed load of w 23 kN/m is applied to the beam, causing the roller support at B to settle downward (i.e., displace downward) by 16 mm. Determine: (a) the reactions at supports A, B, and C. (b) the maximum bending stress ơmax in the beam. Assume LAB = 3.3 m, LBC = 6.2 m. LAB BC Answers: (a) A - (b)...
The W33 x221 steel simply supported beam is loaded with
concentrated loads and uniform
load as shown with the load P= 150kip and w = 10kip/ft. For
this beam do the following;
a) Draw the shear and bending moment diagram
b) Calculate the maximum compressive and tensile stress
c) Calculate the maximum shear stress
P Р 3 ft 3 ft w 10 ft
it
says a beam is loaded until a a deflection of 0.2 the rollers are
steel Ra=Rc which is 0.25 and Rb= 0.5 modulus of elasticity is E=30
msi sigma y = 42 ksi the beam is A2318 magnesium alloy sigma y=
22ksi E=6.5 base =0.5 h=1 its asking to calculate factor of safety
for yielding due to contact pressure for the beam at points A,B,
and C don't know any other info that you will need
Homework & Consider...
The beam is loaded as shown in the diagram below. The beam is uniformly loaded at 3 kN/m for the length of 4 m from B. The beam also has two point loads, 4 KN at 2 m from A and 3 KN at 3 m from B. 2 KN 3 KN 3KN/m A 2 m 2 m 11 m 3 m Fig. Q2 Draw a shear force and bending moment diagram. Also determine the location of maximum bending moment...
For the beam shown in Fig.3, q1= 10kN/m, Mo=15kN.m. a) Find all
support reactions. b) Find the expressions for the shear force V
and bending moment M. c) Draw the shear-force and bending-moment
diagrams. Note that Mo acts at C, and dV/dx = -q, dM/dx = V
Calculate (a) the maximum shear stress in each segment; (b) the angles of twist (in d at the mid-span of the larger segment. Given: r-Trllp Ti 91 T: Fig. 2 Fig. 3 q,-10...
For the beam shown in Fig.3, q1= 10kN/m, Mo=15kN.m. a) Find all
support reactions. b) Find the expressions for the shear force V
and bending moment M. c) Draw the shear-force and bending-moment
diagrams. Note that Mo acts at C, and dV/dx = -q, dM/dx = V
Calculate (a) the maximum shear stress in each segment; (b) the angles of twist (in d at the mid-span of the larger segment. Given: r-Trllp Ti 91 T: Fig. 2 Fig. 3 q,-10...
Figure Q1(b) shows a beam AD which is loaded with the force F.
The coefficient of static friction at the top and bottom surfaces
of the wedge are ???=0.25 and ???=0.35, respectively. Neglect the
weight, size of the wedge and the thickness of the beam.
Considering the value of F from the Table Q1(b) attached, answer
the following;
(i) Draw the free body diagram of the given problem with all forces
and support reactions.
(2 marks)
(ii) Determine the horizontal...
