Part of a control linkage for an airplane consists of a rigid member CB and a...
6- Part of a control linkage for an airplane consists of a rigid member CB and...
6- Part of a control linkage for an airplane consists of a rigid member CB and a flexible cable AB. If a force is applied to the end B of the member and causes a normal strain in the cable of 0.004 mm/mm, determine the displacement of point B. Originally the cable is unstretched. 800 mm 600 mm -
Part of a control linkage for an airplane consists of a rigid member CB and a...
Part of a control linkage for an airplane consists of a rigid member CB and a flexible cable AB BO 900 mm Originally the cable is unstretched. Part A If a force is applied to the end B of the member and causes it to rotate by B=0.35°, determine the normal strain in the cable. Express your answer to three significant figures. VALOlt veco ? mm/mm Submit Request Answer

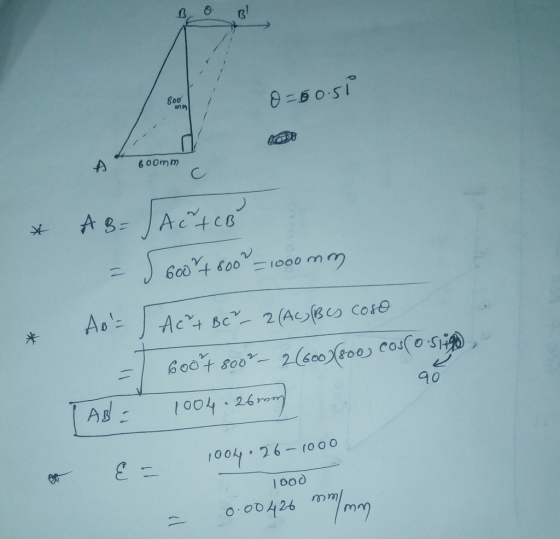

Part of a control linkage for an airplane consists of a rigid member CB and a flexible cable AB. Originally the cable...
Part of a control linkage for an airplane consists of a rigid
member CB and a flexible cable
AB. Originally the cable is unstretched. If a
force is applied to the end B of the member and causes it
to rotate by ?=0.58?, determine the normal strain in the
cable.
Part of a control linkage for an airplane consists of a rigid member CB and a...
Part of a control linkage for an airplane consists of a rigid member CB and a flexible cable AB Originally the cable is unstretched ԱԼԱՍ Ո) Է Ւ Յ Թեանն՝ ա ռասան՝ առասան եւ սա է If a force is applied to the end B of the member and causes it to rotate by 0-0.61", determine the normal strain in the cable Express your answer to three significant figures. IVO 424 VOC RO D? mm/mm
Part A If a force is applied to the end B of the member and causes...
Part A
If a force is applied to the end B of the member and
causes a normal strain in the cable of 0.00478 mm/mm, determine the
displacement of point B.

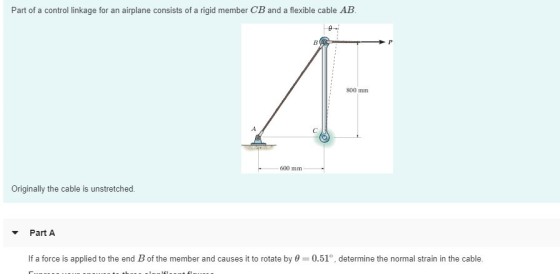

Problem 2.15 Part of a control linkage for an airplane consists of a rigid member CB and a flexible cable AB 800 mm 600 mm Originally the cable is unstretched.
If a force is applied to the end B of the member and causes a normal...
If a force is applied to the end B of the member and causes a
normal strain in the cable of 0.00367 mm/mm, determine the
displacement of point B.
Part of a control linkage for an airplane consists of a rigid member CB and a flexible cable AB. e- 800 mm 600 mm Originally the cable is unstretched
Problem 2.7 7 of 8 The pin-connected rigid rods AB and BC are inclined at θ-30°...
Problem 2.7 7 of 8 The pin-connected rigid rods AB and BC are inclined at θ-30° when they are unloaded. When the force P is applied θ becomes 30.2°. (Figure 1) Part A Determine the average normal strain developed in wire AC Express your answer using three significant figures vec Figure 1 of 1 Submit Answer Provide Feedback Next> 600 mm
0 Required information Problem 16.138 General plane motion: System of rigid bodies: Rod and piston DEPENDENT...
0 Required information Problem 16.138 General plane motion: System of rigid bodies: Rod and piston DEPENDENT MULTI PART PROBLEM - ASSIGN ALL PARTS NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. In the engine system shown, /=250 mm and b=100 mm. The connecting rod BD is assumed to be a 1.7-kg uniform slender rod and is attached to the 1.8-kg piston During a test of the system, crank...
Express your answer using three significant figures. Review VAEc ? The force applied at the handle...
Express your answer using three significant figures. Review VAEc ? The force applied at the handle of the rigid lever causes the of le The wires are unstretched when the lever is in the 2.4 horizontal position. (Figure 1) (CAHA mm/mm Request Answer Submit Part B wire CG. Determine the average normal strain developed Express your answer using three significant figures. vec AE ww (eccg mm/mm Request Answer Submit Figure 1 of 1 Part C wire DF. Determine the average...
Member CB has a square cross section of 30 mm on each side. (Figure 1) Part...
Member CB has a square cross section of 30 mm on each side. (Figure 1) Part A Determine the largest intensity w of the uniform loading that can be applied to the frame without causing either the average normal stress or the average shear stress at section b-b to exceed o= 12 MPa and t= 16 MPa, respectively. Express your answer to three significant figures and include appropriate units. ? c': Å * * o a Value Units Figure <...
6- Part of a control linkage for an airplane consists of a rigid member CB and a flexible cable AB. If a force is applied to the end B of the member and causes a normal strain in the cable of 0.004 mm/mm, determine the displacement of point B. Originally the cable is unstretched. 800 mm 600 mm -
Part of a control linkage for an airplane consists of a rigid member CB and a flexible cable AB BO 900 mm Originally the cable is unstretched. Part A If a force is applied to the end B of the member and causes it to rotate by B=0.35°, determine the normal strain in the cable. Express your answer to three significant figures. VALOlt veco ? mm/mm Submit Request Answer
Part of a control linkage for an airplane consists of a rigid
member CB and a flexible cable
AB. Originally the cable is unstretched. If a
force is applied to the end B of the member and causes it
to rotate by ?=0.58?, determine the normal strain in the
cable.
Part of a control linkage for an airplane consists of a rigid member CB and a flexible cable AB Originally the cable is unstretched ԱԼԱՍ Ո) Է Ւ Յ Թեանն՝ ա ռասան՝ առասան եւ սա է If a force is applied to the end B of the member and causes it to rotate by 0-0.61", determine the normal strain in the cable Express your answer to three significant figures. IVO 424 VOC RO D? mm/mm
Part A
If a force is applied to the end B of the member and
causes a normal strain in the cable of 0.00478 mm/mm, determine the
displacement of point B.
Problem 2.15 Part of a control linkage for an airplane consists of a rigid member CB and a flexible cable AB 800 mm 600 mm Originally the cable is unstretched.
If a force is applied to the end B of the member and causes a
normal strain in the cable of 0.00367 mm/mm, determine the
displacement of point B.
Part of a control linkage for an airplane consists of a rigid member CB and a flexible cable AB. e- 800 mm 600 mm Originally the cable is unstretched
Problem 2.7 7 of 8 The pin-connected rigid rods AB and BC are inclined at θ-30° when they are unloaded. When the force P is applied θ becomes 30.2°. (Figure 1) Part A Determine the average normal strain developed in wire AC Express your answer using three significant figures vec Figure 1 of 1 Submit Answer Provide Feedback Next> 600 mm
0 Required information Problem 16.138 General plane motion: System of rigid bodies: Rod and piston DEPENDENT MULTI PART PROBLEM - ASSIGN ALL PARTS NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. In the engine system shown, /=250 mm and b=100 mm. The connecting rod BD is assumed to be a 1.7-kg uniform slender rod and is attached to the 1.8-kg piston During a test of the system, crank...
Express your answer using three significant figures. Review VAEc ? The force applied at the handle of the rigid lever causes the of le The wires are unstretched when the lever is in the 2.4 horizontal position. (Figure 1) (CAHA mm/mm Request Answer Submit Part B wire CG. Determine the average normal strain developed Express your answer using three significant figures. vec AE ww (eccg mm/mm Request Answer Submit Figure 1 of 1 Part C wire DF. Determine the average...
Member CB has a square cross section of 30 mm on each side. (Figure 1) Part A Determine the largest intensity w of the uniform loading that can be applied to the frame without causing either the average normal stress or the average shear stress at section b-b to exceed o= 12 MPa and t= 16 MPa, respectively. Express your answer to three significant figures and include appropriate units. ? c': Å * * o a Value Units Figure <...
