The average power used by a stereo speaker is 55 W. Assuming that the speaker can...

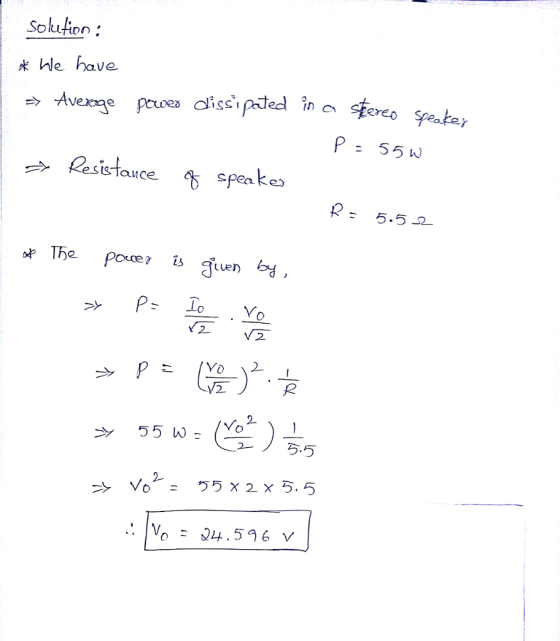

The average power used by a stereo speaker is 55 W. Assuming that the speaker can be treated as a 5.5-Ω resistance, find the peak value of the ac voltage applied to the speaker.
Homework Answers
Add Answer to:
The average power used by a stereo speaker is 55 W. Assuming that the speaker can...
76. *A stereo speaker has a resistance of 8 Ω. If the power output is 40...

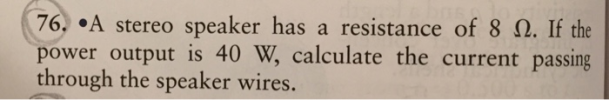

76. *A stereo speaker has a resistance of 8 Ω. If the power output is 40 W, calculate the current passing through the speaker wires.
