The magnetic field direction can be given by
B =
I L x r/4 π r2
Therefore we calculate magnetic field due to the arc using this formula for dl then integrate for arc length
Add Answer to:

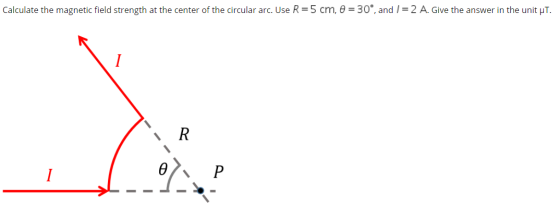

Calculate the magnetic field strength at the center of the circular arc. Use R=5 cm, 8...
A long wire is bent to form a 90 degree angle using a circular arc with...
A long wire is bent to form a 90 degree angle using a circular
arc with a radius r=2cm. The wire carries a current I=0.5A as
shown. Point P is located in the plane of the wire at the center of
the circular arc.
2. A long wire is bent to form a 90° angle using a circular arc with a radius R 2 cm. The wire carries a current I = 0.5 A as shown. Point P is located...
1. Calculate the magnetic field at distance at r=13.5 cm from the center of the conductor...
1. Calculate the magnetic field at distance at r=13.5 cm from
the center of the conductor 2. calculate the magnetic firld at
distance r=27cm from the center of the conductor. 3. direction of
the magnetic field at point P in the figure.
P Flag question Question 19 Not yet answered Points out of 7.00 A hollow cylindrical conductor of inner radius a = 9 cm, and outer radius b = 22.5 has a non-uniform current density J = r^2 in...
Questions/Assignments an expression for the magnetic field at the center of circular loop of current carrying...
Questions/Assignments an expression for the magnetic field at the center of circular loop of current carrying wire erive an expression for the magnetic field at a point on the axis of circular current carrying wire. 3. D erive an expression for the magnetic field at a point distance x away(along the dipole) due to magnetic dipole of moment M. 4. Derive an expression for the magnetic field at a point distance x away (along the perpendicular bisector) due to a...
A circular loop with radius R is in a magnetic field that is perpendicular to it....
A circular loop with radius R is in a magnetic field that is perpendicular to it. Assume that the normal to the loop is in the same direction as the field. The strength of the field, as a function of radial distance from the center r, is given by B=kr (where k is a constant). What is the flux over the loop? My plan for this problem was to take the integral of the function of the magnetic field B=kr....
Three point charges are located on a circular arc as shown in the figure below. (Take r = 3.64 cm. Let to the right be...
Three point charges are located on a circular arc as shown in the
figure below. (Take r = 3.64 cm. Let to the right be the +x
direction and up along the screen be the +y direction.)(a) What is the total electric field at P, the center of the
arc? = _________ + __________(b) Find the electric force that would be exerted on a -5.43 nC
point charge placed at P. = + Three point charges are located on a...
..............The magnetic field strength of a current-carrying, circular loop along an x-axis running perpendicular to the...
..............The magnetic field strength of a current-carrying, circular loop along an x-axis running perpendicular to the loop and passing through its center is given by: Bx = µ0IR2 2(x2 + R2)3/2 where R is the radius of the loop and I is the current. At what x position is Bx half the maximum found at the center of the loop?
5. Use Ampére's law to determine the magnetic field strength... a. a distance r away from...
5. Use Ampére's law to determine the magnetic field strength... a. a distance r away from an infinitely long current carrying wire b. anywhere on either side of an infinite, flat sheet with a surface current density σ c. inside a solenoid with n turns per unit length
a) Calculate the strength of the magnetic field that the top wire experiences (produced by the...
a) Calculate the strength of the magnetic field that the top wire experiences (produced by the current in the bottom wire) if the top wire carries a current of 10 A and the bottom wire carries a current of 15 A and they are separated by 5.0 cm. 2. b) Calculate the strength of the magnetic field that the bottom wire experiences (produced by the current in the top wire.) c) Calculate the strength of the magnetic force on the...
A circular loop of radius 11.7 cm is placed in a uniform magnetic field. (a) If...
A circular loop of radius 11.7 cm is placed in a uniform magnetic field. (a) If the field is directed perpendicular to the plane of the loop and the magnetic flux through the loop is 7.70 ✕ 10−3 T · m2, what is the strength of the magnetic field? T (b) If the magnetic field is directed parallel to the plane of the loop, what is the magnetic flux through the loop? T · m2
A 141 turn circular coil of radius 2.61 cm is immersed in a uniform magnetic field...
A 141 turn circular coil of radius 2.61 cm is immersed in a
uniform magnetic field that is perpendicular to the plane of the
coil. Over an interval of 0.177 s , the magnetic field strength
increases from 53.1 mT to 96.9 mT . Find the magnitude of the
average emf avg induced in the coil during this time interval, in
millivolts.
A 141 turn circular coil of radius 2.61 cm is immersed in a uniform magnetic field that is...
A long wire is bent to form a 90 degree angle using a circular
arc with a radius r=2cm. The wire carries a current I=0.5A as
shown. Point P is located in the plane of the wire at the center of
the circular arc.
2. A long wire is bent to form a 90° angle using a circular arc with a radius R 2 cm. The wire carries a current I = 0.5 A as shown. Point P is located...
1. Calculate the magnetic field at distance at r=13.5 cm from
the center of the conductor 2. calculate the magnetic firld at
distance r=27cm from the center of the conductor. 3. direction of
the magnetic field at point P in the figure.
P Flag question Question 19 Not yet answered Points out of 7.00 A hollow cylindrical conductor of inner radius a = 9 cm, and outer radius b = 22.5 has a non-uniform current density J = r^2 in...
Questions/Assignments an expression for the magnetic field at the center of circular loop of current carrying wire erive an expression for the magnetic field at a point on the axis of circular current carrying wire. 3. D erive an expression for the magnetic field at a point distance x away(along the dipole) due to magnetic dipole of moment M. 4. Derive an expression for the magnetic field at a point distance x away (along the perpendicular bisector) due to a...
Three point charges are located on a circular arc as shown in the
figure below. (Take r = 3.64 cm. Let to the right be the +x
direction and up along the screen be the +y direction.)(a) What is the total electric field at P, the center of the
arc? = _________ + __________(b) Find the electric force that would be exerted on a -5.43 nC
point charge placed at P. = + Three point charges are located on a...
5. Use Ampére's law to determine the magnetic field strength... a. a distance r away from an infinitely long current carrying wire b. anywhere on either side of an infinite, flat sheet with a surface current density σ c. inside a solenoid with n turns per unit length
a) Calculate the strength of the magnetic field that the top wire experiences (produced by the current in the bottom wire) if the top wire carries a current of 10 A and the bottom wire carries a current of 15 A and they are separated by 5.0 cm. 2. b) Calculate the strength of the magnetic field that the bottom wire experiences (produced by the current in the top wire.) c) Calculate the strength of the magnetic force on the...
A 141 turn circular coil of radius 2.61 cm is immersed in a
uniform magnetic field that is perpendicular to the plane of the
coil. Over an interval of 0.177 s , the magnetic field strength
increases from 53.1 mT to 96.9 mT . Find the magnitude of the
average emf avg induced in the coil during this time interval, in
millivolts.
A 141 turn circular coil of radius 2.61 cm is immersed in a uniform magnetic field that is...
