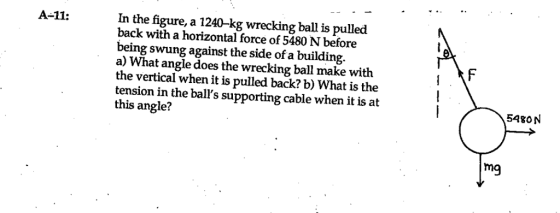

A-11; In the figure, a 1240-kg wrecking ball is pulled back with a horizontal force of 5480 N before being swung against the side of a building. a) What angle does the wrecking ball make with the vertical when it is pulled back? b) What is the tension in the balls supporting cable when it is at this angle? 5480N mg

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

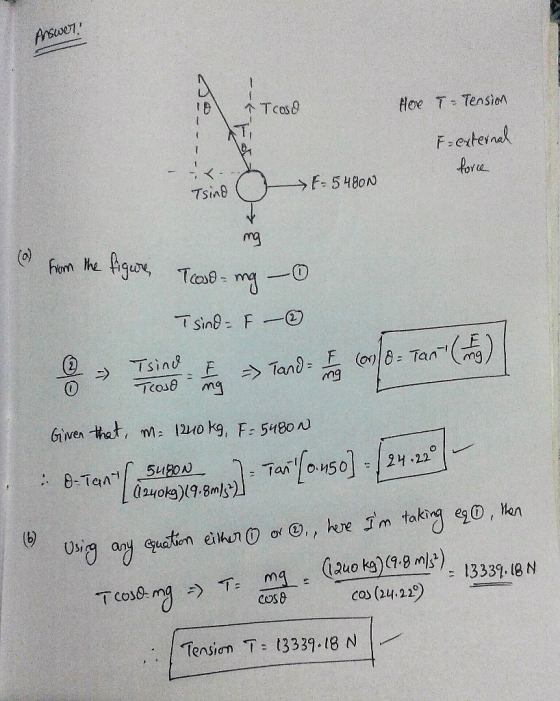

Answer #1


1 0
Add a comment
Know the answer?
Add Answer to:
A-11; In the figure, a 1240-kg wrecking ball is pulled back with a horizontal force of...
