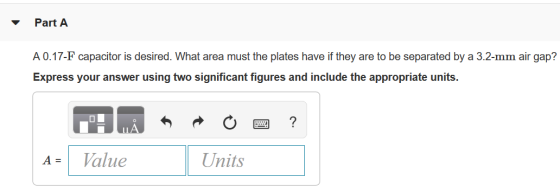

A 0.17-F capacitor is desired. What area must the plates have if they are to be separated by a 3.2-mm air gap?

Question

Question

A 0.17- $F$ capacitor is desired. What area must the plates have if they are to be separated by a 3.2- $m m$ air gap?

physics

Answer 1

Answer #1

A = C*d/eo

= (0.17*3.2*10^-3)/(8.85*10^-12)

= 0.614*10^8 m^2

Answer 2

Answer #2

It's 6.1x10⁷ m²

Answer 3
