Review | Constants A series L-R-C circuit is driven with AC voltage of amplitude Vin and...

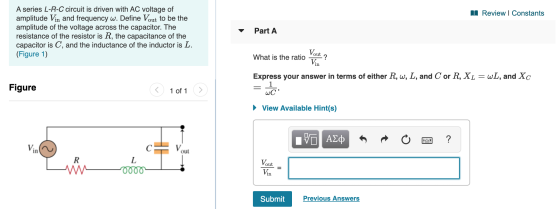

A series L-R-C circuit is driven with AC voltage of amplitude Vin and frequency ω. Define...
A series L-R-C circuit is driven with AC voltage of
amplitude Vin and frequency ω. Define Vout to be the amplitude of
the voltage across the capacitor. The resistance of the resistor is
R, the capacitance of the capacitor is C, and the inductance of the
inductor is L.(Figure 1)

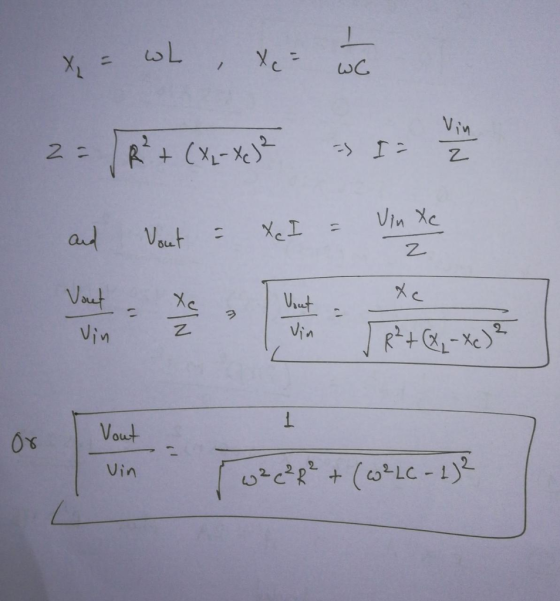

What is the ratio VoutVin?
Express your answer in terms of either R, ω, L, and C or R, XL
=ωL, and XC =1ωC.
Vin c+ Vout
