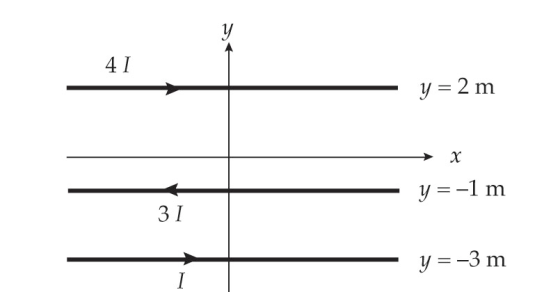

Three long wires parallel to the x axis carry currents as shown. If I = 20 A, what is the magnitude and direction of the magnetic field at the origin?

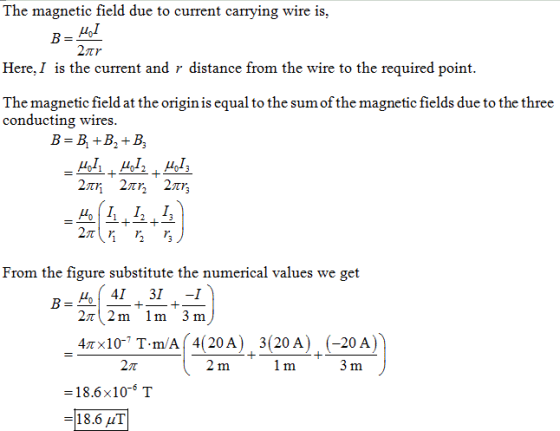

Homework Answers
Add Answer to:
Three long wires parallel to the x axis carry currents as shown.
If I = 20...
