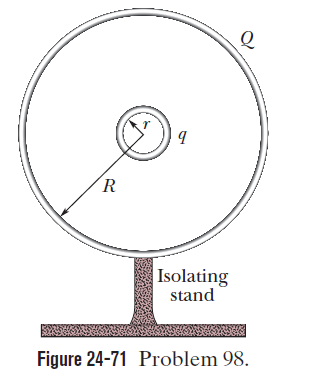

In Fig. 24-71, a metal sphere with charge q = 5.00 mC and radius r = 3.00 cm is concentric with a larger metal sphere with charge Q = 15.0 mC and radius R = 6.00 cm.
(a)What is the potential difference between the spheres?
If we connect the spheres with a wire, what then is the charge on (b) the smaller sphere and (c) the larger sphere?

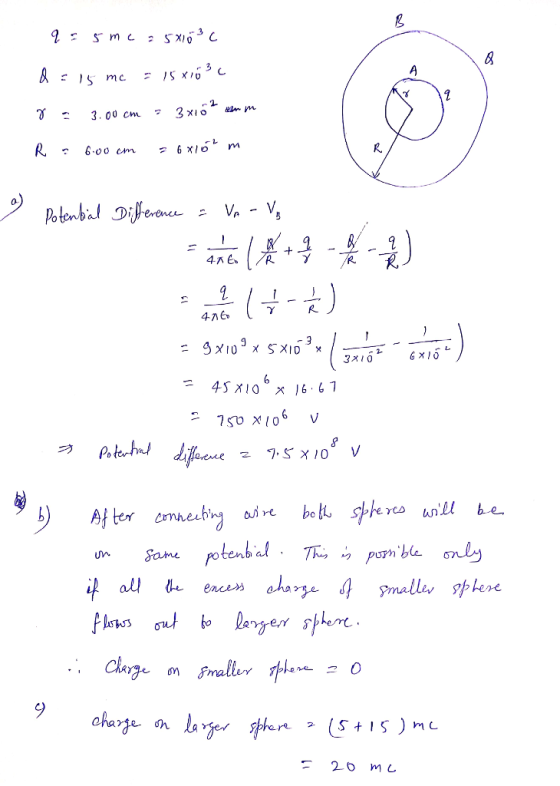

Homework Answers
Add Answer to:
In Fig. 24-71, a metal sphere with charge q = 5.00 mC and radius
r =...
R Q1-Ch23 A conducting solid sphere of radius R with unknown charge Q is at the...
R Q1-Ch23 A conducting solid sphere of radius R with unknown charge Q is at the center of a conducting hollow sphere of inner radius 3R and outer radius 4R. The hollow sphere has charge -2q. Take the origin as the center of the spheres. Take the potential at infinity as zero. a) Calculate Q if the electric potential at r = 2R is zero. b) Suppose that a conducting thin wire is connected between the spheres. How much electron...
A metal sphere with radius ra is supported on an insulating stand at the center of a hollow, metal, spherical shell with radius rb.
A metal sphere with radius ra is supported on an insulating stand at the center of a hollow, metal, spherical shell with radius rb. There is charge +q on the inner sphere and charge −q on the outer spherical shell. Take V to be zero when r is infinite. Part H Suppose the charge on the outer sphere is not -q but a negative charge of different magnitude, say -Q. Find the electric field at any point between the spheres ( ra...
4. Two conducting spheres are far apart. The smaller sphere has radius R and carries a...
4. Two conducting spheres are far apart. The smaller sphere has radius R and carries a total charge of Q. The larger sphere has a radius 2R and is neutral. After the two spheres are connected by a conducting wire, find the potential of each sphere (5points) the new charges on each sphere. (10 points) (iii) the electric field on each sphere due to its new charge (10 points)
4. Two conducting spheres are far apart. The smaller sphere has radius R and carries a...
4. Two conducting spheres are far apart. The smaller sphere has radius R and carries a total charge of Q. The larger sphere has a radius 2R and is neutral. After the two spheres are connected by a conducting wire, find (1) the potential of each sphere (5points) the new charges on each sphere. (10 points) the electric field on each sphere due to its new charge (10 points)
4. Two conducting spheres are far apart. The smaller sphere has radius R and carries a...
4. Two conducting spheres are far apart. The smaller sphere has radius R and carries a total charge of Q. The larger sphere has a radius 2R and is neutral. After the two spheres are connected by a conducting wire, find (1) the potential of each sphere (Spoints) the new charges on each sphere. (10 points) (iii) the electric field on each sphere due to its new charge (10 points)
4. Two conducting spheres are far apart. The smaller sphere has radius R and carries a...
4. Two conducting spheres are far apart. The smaller sphere has radius R and carries a total charge of Q. The larger sphere has a radius 2R and is neutral. After the two spheres are connected by a conducting wire, find (1) the potential of each sphere (Spoints) the new charges on each sphere. (10 points) (iii) the electric field on each sphere due to its new charge (10 points)
A metal sphere with radius ra = 1.30 cm is supported on an insulating stand at...
A metal sphere with radius ra = 1.30 cm is supported on an insulating stand at the center of a hollow, metal, spherical shell with radius rb = 9.00 cm . Charge +q is put on the inner sphere and charge −q on the outer spherical shell. The magnitude of q is chosen to make the potential difference between the spheres 430 V , with the inner sphere at higher potential. Part A Calculate q. Part B Are the electric...
Metal sphere A of radius 13.0 cm carries 7.00 uC of charge, and metal sphere B...
Metal sphere A of radius 13.0 cm carries 7.00 uC of charge, and metal sphere B of radius 16.0 cm carries -3.00 uC of charge. If the two spheres are attached by a very long conducting thread, what is the final distribution of charge on the two spheres? 2.87 charge on sphere A Your response differs from the correct answer by more than 10%. Double check your calculations. UC 7.0 charge on sphere B Your response differs from the correct...
A metal sphere of radius R has an electric charge +q on it. A) Determine an...
A metal sphere of radius R has an electric charge +q on it. A) Determine an expression for the electric potential V on the sphere's surface. Express your answer in terms of some or all of the variables R, q. Use k for the constant from Coulomb's law. B)Use the definition of capacitance to determine an expression for the capacitance of a metal sphere of radius R. (Hint: Assume the other plate is infinitely far away.) Express your answer in...
A metal sphere with radius ra = 1.30 cm is supported on an insulating stand at...
A metal sphere with radius ra = 1.30 cm is supported on an insulating stand at the center of a hollow, metal, spherical shell with radius rb = 9.10 cm . Charge +q is put on the inner sphere and charge −q on the outer spherical shell. The magnitude of q is chosen to make the potential difference between the spheres 440 V , with the inner sphere at higher potential. A - Calculate q. q-....................................C B - Are the...
R Q1-Ch23 A conducting solid sphere of radius R with unknown charge Q is at the center of a conducting hollow sphere of inner radius 3R and outer radius 4R. The hollow sphere has charge -2q. Take the origin as the center of the spheres. Take the potential at infinity as zero. a) Calculate Q if the electric potential at r = 2R is zero. b) Suppose that a conducting thin wire is connected between the spheres. How much electron...
4. Two conducting spheres are far apart. The smaller sphere has radius R and carries a total charge of Q. The larger sphere has a radius 2R and is neutral. After the two spheres are connected by a conducting wire, find the potential of each sphere (5points) the new charges on each sphere. (10 points) (iii) the electric field on each sphere due to its new charge (10 points)
4. Two conducting spheres are far apart. The smaller sphere has radius R and carries a total charge of Q. The larger sphere has a radius 2R and is neutral. After the two spheres are connected by a conducting wire, find (1) the potential of each sphere (5points) the new charges on each sphere. (10 points) the electric field on each sphere due to its new charge (10 points)
4. Two conducting spheres are far apart. The smaller sphere has radius R and carries a total charge of Q. The larger sphere has a radius 2R and is neutral. After the two spheres are connected by a conducting wire, find (1) the potential of each sphere (Spoints) the new charges on each sphere. (10 points) (iii) the electric field on each sphere due to its new charge (10 points)
4. Two conducting spheres are far apart. The smaller sphere has radius R and carries a total charge of Q. The larger sphere has a radius 2R and is neutral. After the two spheres are connected by a conducting wire, find (1) the potential of each sphere (Spoints) the new charges on each sphere. (10 points) (iii) the electric field on each sphere due to its new charge (10 points)
Metal sphere A of radius 13.0 cm carries 7.00 uC of charge, and metal sphere B of radius 16.0 cm carries -3.00 uC of charge. If the two spheres are attached by a very long conducting thread, what is the final distribution of charge on the two spheres? 2.87 charge on sphere A Your response differs from the correct answer by more than 10%. Double check your calculations. UC 7.0 charge on sphere B Your response differs from the correct...
