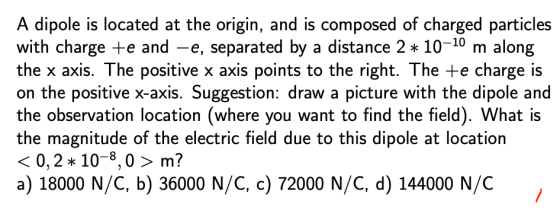

A dipole is located at the origin, and is composed of charged particles with charge e and -e, separated by a distance 2 10-10 m along the x axis. The positive x axis points to the right. The te charge is on the positive x-axis. Suggestion: draw a picture with the dipole and the observation location (where you want to find the field). What is the magnitude of the electric field due to this dipole at location 〈 0,2 * 10-8,0 〉 m? a) 18000 N/C, b) 36000 N/C, c) 72000 N/C, d)1 44000 N/C

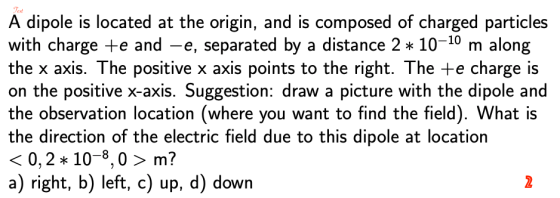

exd A dipole is located at the origin, and is composed of charged particles with charge e and -e, separated by a distance 2 10-10 m along the x axis. The positive x axis points to the right. The te charge is on the positive x-axis. Suggestion: draw a picture with the dipole and the observation location (where you want to find the field). What is the direction of the electric field due to this dipole at location 〈0, 2 * 10-8, 0 〉 m? a) right, b) left, c) up, d) down

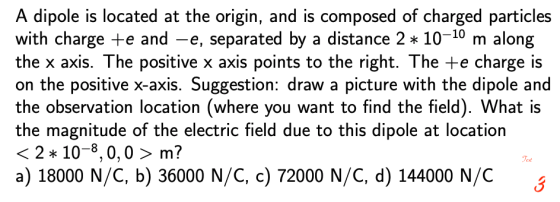

A dipole is located at the origin, and is composed of charged particles with charge e and -e, separated by a distance 2 10-10 m along the x axis. The positive x axis points to the right. The +e charge is on the positive x-axis. Suggestion: draw a picture with the dipole and the observation location (where you want to find the field). What is the magnitude of the electric field due to this dipole at location 〈 2 * 10-8, 0, 0 〉 m? a) 18000 N/C, b) 36000 N/C, c) 72000 N/C, d) 144000 N/C

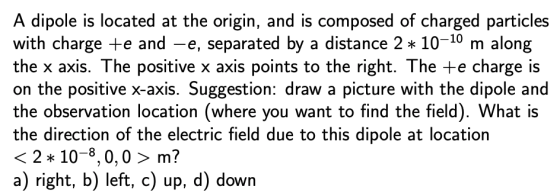

A dipole is located at the origin, and is composed of charged particles with charge te and -e, separated by a distance 2 * 10-10 m along the x axis. The positive x axis points to the right. The +e charge is on the positive x-axis. Suggestion: draw a picture with the dipole and the observation location (where you want to find the field). What is the direction of the electric field due to this dipole at location 〈 2 * 10-8,0,0 〉 m? a) right, b) left, c) up, d) down

If you double the distance between the center of the dipole and the location where you calculate the electric field (on the dipole axis), what will happen to the magnitude of the electric field? Hint: what is the distance-dependence of the field? a) Stay constant, b) increase by a factor of 2, c) increase by a factor of 4, d) increase by a factor of 8, e) decrease by a factor of 2, f) decrease by a factor of 4, g) decrease by a factor of 8

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

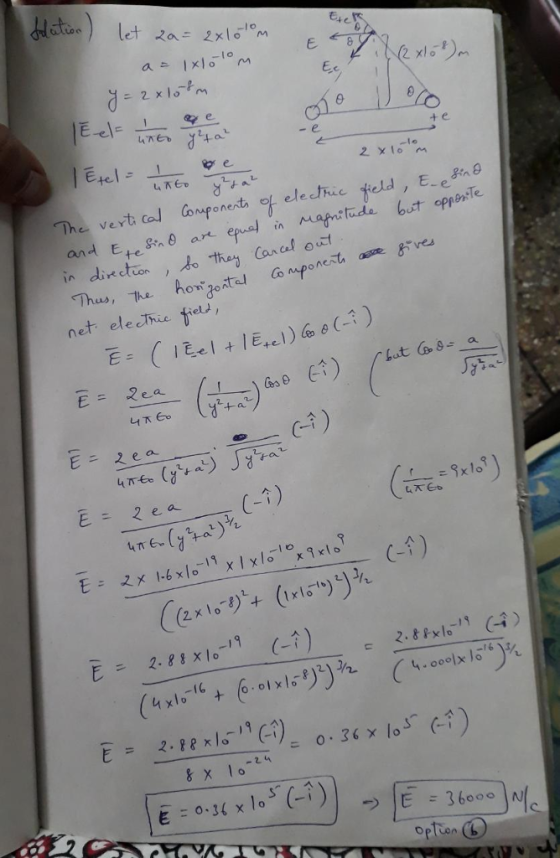

Solution) A dipole consists of two equal and opposite charges separated by distance d

let and Etegn θ are net, et e Jhie, feu I E E= 는 (t+z)0.se. (ht 6s: 57に Et) e a (4xl: +6-1x1リ2)Zg. (4.oooIxlasy. option ④dive ctrn Towar a leit Aduit») toc.tere. ( 2x1。8, o,») m e Cal ieo E,-en e. ±e.D Ele.thie +ela let field dto duifu + e, ty a
