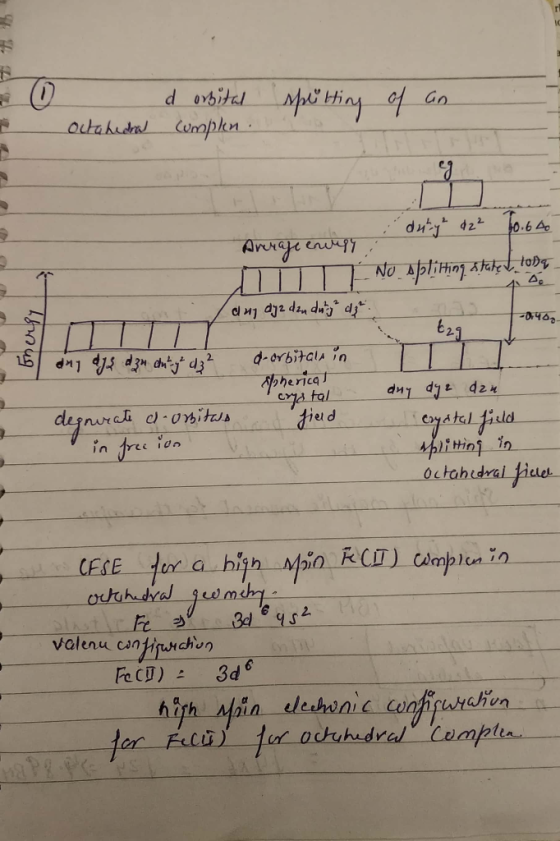

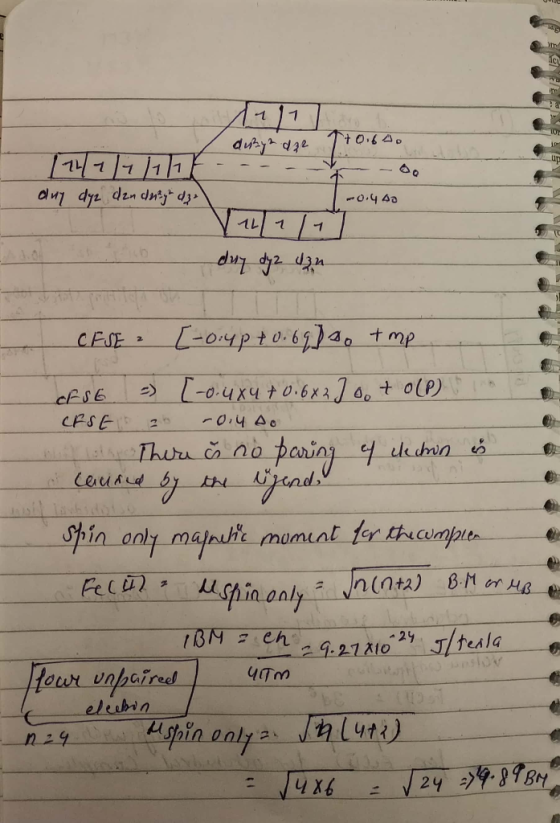

5) Draw d orbital splitting of an octahedral complex. Calculate CFSE for a high spin Fe(II)...
3) The d orbital electron configuration of octahedral complexes can either be described as high- spin...
3) The d orbital electron configuration of octahedral complexes can either be described as high- spin with the maximum possible number of unpaired d-electrons, or low-spin containing one or more paired d-electrons. [Fe(H20)62 is a high-spin octahedral complex. What is its spin- state (S-?)? Draw a d-orbital splitting diagram for this complex and fill it with the appropriate number of electrons. Where does the final electron go in this diagram? If you were to oxidize this molecule do you think...
Which dorbital configuration has the highest crystal field stabilization energy (CFSE) in a low spin octahedral...
Which dorbital configuration has the highest crystal field stabilization energy (CFSE) in a low spin octahedral crystal field? d4 d3 d6 ОООО g8 d? Predic whether the following complex is diamagnetic or paramagentic. 72+ paramagnetic need more information to answer this question diamagnetic The magnetic property of a transition metal complex can be predicted using crystal field theory. If we assume that the magnetic moment arises entirely from unpaired electron spins then the "spin only magnetic moment (us) is given...
How do I draw the octahedral crystal field splitting diagram for Fe^2+ (high and low spin)...
How do I draw the octahedral crystal field splitting diagram for Fe^2+ (high and low spin) and Co^3+ (high spin)?
4. Given the d orbital splitting diagrams below, determine which M and calculate the CFSE for...
4. Given the d orbital splitting diagrams below, determine which M and calculate the CFSE for each. EXAMPLE PROVIDED The metal has THREE d electrons; H2O is neutral and Br is a -1. The overall chage on the metal complex is +1 LLL M + -1 = +1 M +2 charge M that has lost 2 electrons and has 3 electrons left therefore M = V (which has 5 valence electrons as a neutral metal) M(H20)Br* CFSE - 3(-2/5)Ao 6/5...
2.) Starting with the octahedral (ML6) crystal field splitting pattern below: A.) Draw the d-orbital splitting...
2.) Starting with the octahedral (ML6) crystal field splitting pattern below: A.) Draw the d-orbital splitting for a tetragonally compressed compound (ML6). This is where the ligands along the z-axis are pushed closer to the metal center, and the ligands along the x and y-axis are pulled further from the metal center (10 marks). B.) Continue this trend until the ligands along the x and y axes are completely removed, and show the d-orbital splitting for the resulting linear complex...
For [Fe2L3], L=C25H20N4 How many d electrons are in the Fe(ii) centre? Sketch the d-orbital energy...
For [Fe2L3], L=C25H20N4 How many d electrons are in the Fe(ii) centre? Sketch the d-orbital energy level diagram for the Fe centre considering its coordination geometry? Populate the orbitals with the appropriate number of electrons? Is the complex high or low spin?
The transition metal ion, Fe(III), can form octahedral or tetrahedral complexes depending on the ligand it...
The transition metal ion, Fe(III), can form octahedral or tetrahedral complexes depending on the ligand it binds to. (a) (i) [Fe(CN)6]3- is a strong field octahedral complex of Fe(III). Draw a labelled orbital energy level diagram that shows both the splitting of the d-orbitals and their electron occupancy in [Fe(CN)6]. (3 marks) (ii) Fe(III) can also form tetrahedral complexes, most of which are weak field. Draw a labelled orbital energy level diagram that shows both the splitting of the d-orbitals...
2.) Starting with the octahedral (ML6) crystal field splitting pattern below: A.) Draw the d-orbital splitting...
2.) Starting with the octahedral (ML6) crystal field splitting pattern below: A.) Draw the d-orbital splitting for a tetragonally compressed compound (ML6). This is where the ligands along the z-axis are pushed closer to the metal center, and the ligands along the x and y-axis are pulled further from the metal center (10 marks). B.) Continue this trend until the ligands along the x and y axes are completely removed, and show the d-orbital splitting for the resulting linear complex...
Which of the following ions CANNOT form both a high spin and low spin octahedral complex...
Which of the following ions CANNOT form both a high spin and low spin octahedral complex ion? Select one or more: +2 a. Co +3 b. Cr +3 c. Mn +3 d. Fe
Make two d-orbital diagrams for each of the transition metal compounds, that show the low and...
Make two d-orbital diagrams for each of the transition metal compounds, that show the low and high-spin states. Assume the compounds have an octahedral geometry. Determine the value of the spin-only magnetic moment for each of these configurations. Explanation of determining the value of spin-only magnetic moment would help. Ty! tris(acetylacetonato)manganese(III) tris(acetylacetonato)iron(III) tris(acetylacetonato)cobalt(III)
3) The d orbital electron configuration of octahedral complexes can either be described as high- spin with the maximum possible number of unpaired d-electrons, or low-spin containing one or more paired d-electrons. [Fe(H20)62 is a high-spin octahedral complex. What is its spin- state (S-?)? Draw a d-orbital splitting diagram for this complex and fill it with the appropriate number of electrons. Where does the final electron go in this diagram? If you were to oxidize this molecule do you think...
Which dorbital configuration has the highest crystal field stabilization energy (CFSE) in a low spin octahedral crystal field? d4 d3 d6 ОООО g8 d? Predic whether the following complex is diamagnetic or paramagentic. 72+ paramagnetic need more information to answer this question diamagnetic The magnetic property of a transition metal complex can be predicted using crystal field theory. If we assume that the magnetic moment arises entirely from unpaired electron spins then the "spin only magnetic moment (us) is given...
4. Given the d orbital splitting diagrams below, determine which M and calculate the CFSE for each. EXAMPLE PROVIDED The metal has THREE d electrons; H2O is neutral and Br is a -1. The overall chage on the metal complex is +1 LLL M + -1 = +1 M +2 charge M that has lost 2 electrons and has 3 electrons left therefore M = V (which has 5 valence electrons as a neutral metal) M(H20)Br* CFSE - 3(-2/5)Ao 6/5...
2.) Starting with the octahedral (ML6) crystal field splitting pattern below: A.) Draw the d-orbital splitting for a tetragonally compressed compound (ML6). This is where the ligands along the z-axis are pushed closer to the metal center, and the ligands along the x and y-axis are pulled further from the metal center (10 marks). B.) Continue this trend until the ligands along the x and y axes are completely removed, and show the d-orbital splitting for the resulting linear complex...
The transition metal ion, Fe(III), can form octahedral or tetrahedral complexes depending on the ligand it binds to. (a) (i) [Fe(CN)6]3- is a strong field octahedral complex of Fe(III). Draw a labelled orbital energy level diagram that shows both the splitting of the d-orbitals and their electron occupancy in [Fe(CN)6]. (3 marks) (ii) Fe(III) can also form tetrahedral complexes, most of which are weak field. Draw a labelled orbital energy level diagram that shows both the splitting of the d-orbitals...
2.) Starting with the octahedral (ML6) crystal field splitting pattern below: A.) Draw the d-orbital splitting for a tetragonally compressed compound (ML6). This is where the ligands along the z-axis are pushed closer to the metal center, and the ligands along the x and y-axis are pulled further from the metal center (10 marks). B.) Continue this trend until the ligands along the x and y axes are completely removed, and show the d-orbital splitting for the resulting linear complex...
Which of the following ions CANNOT form both a high spin and low spin octahedral complex ion? Select one or more: +2 a. Co +3 b. Cr +3 c. Mn +3 d. Fe
