Problem 1 A parallel plate capacitor has bottom plate on the x-y plane. The sepa- ration...

Question

Question

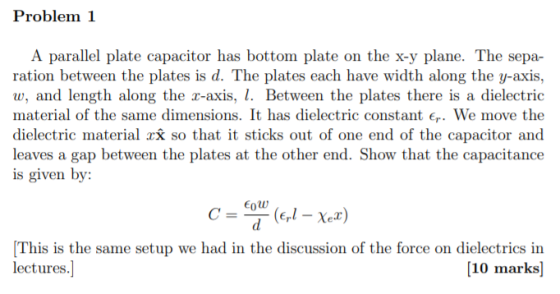

Problem 1 A parallel plate capacitor has bottom plate on the x-y plane. The sepa- ration between the plates is d. The plates

science physics

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

hat the dielectric material is displaced by one at a time to then, / Capacitance due to the gelp, C = E(wr) & Capacitance due

please upvote...thank u:)

Add a comment

Answer 2

Similar Homework Help Questions

Problem 1 A parallel plate capacitor has bottom plate on the x-y plane. The sepa- ration...

Problem 1 A parallel plate capacitor has bottom plate on the x-y plane. The sepa- ration between the plates is d. The plates each have width along the y-axis w, and length along the r-axis, l. Between the plates there is a dielectric material of the same dimensions. It has dielectric constant e,. We move the dielectric material rt so that it sticks out of one end of the capacitor and leaves a gap between the plates at the other...
Multi-Layer Capacitor Use MATLAB to plot the capacitance of a parallel-plate capacitor versus the separation distance...

Multi-Layer Capacitor Use MATLAB to plot the capacitance of a parallel-plate capacitor versus the separation distance d e [0.01, 1]mm between its two plates (take a suitable discretization step value). The capacitor has an area S = 1 cm-. The dielectric material between the two plates has relative permiativity Er that gradually increases from the positive plate along the distance d, until reaching the negative plate. The equation for Er is given by Er = 1+x where x is the...
Problem 1. Electrostatics (1) As shown in the Figure below, a parallel-plate capacitor of plate area A is filled with two layers of dielectrics, ch and d2 thick, with permittivities fringe effect...

Problem 1. Electrostatics (1) As shown in the Figure below, a parallel-plate capacitor of plate area A is filled with two layers of dielectrics, ch and d2 thick, with permittivities fringe effect at the four edges (assuming rectangular plates), find the fields Ei and Es in the two dielectrics if a voltage V (assumed positive) is applied to the top plate with regard to the bottom plate. (Note: both magnitudes and directions needed.) and a, respectively. Ignoring the (2) Find...

A parallel plate capacitor is made using two rectangular plates with dimension 1.1mX0.6m containing two dielectrics between the conducting plates. One plate is at x-0m plane and the other plate i...

A parallel plate capacitor is made using two rectangular plates with dimension 1.1mX0.6m containing two dielectrics between the conducting plates. One plate is at x-0m plane and the other plate is at x -3m plane. Let -2.0 for 0 < z < 0.5 m, and ε,2 = 4.5 for 0.5m< z < 0.6m. Draw this capacitor and find the capacitance. A parallel plate capacitor is made using two rectangular plates with dimension 1.1mX0.6m containing two dielectrics between the conducting plates....
A parallel-plate capacitor has a plate area of A = 250 cm2 and a separation of...

A parallel-plate capacitor has a plate area of A = 250 cm2 and a separation of d = 2.00 mm. The capacitor is charged to a potential difference of V0 = 150 V by a battery. A dielectric sheet (κ = 3.50) of the same area but thickness ℓ = 1.00 mm is placed between the plates without disconnecting the battery. (See figure 24-18 on page 642). Determine the initial capacitance of the air-filled capacitor. Determine the charge on the...
A parallel plate capacitor has the following geometrical structure: +Qfee QfEe а-х The capacitor is initially...

A parallel plate capacitor has the following geometrical structure: +Qfee QfEe а-х The capacitor is initially empty and charged withQree Then, it is partially filled up with a bar of dielectric material () with area A-ab and thickness d (the same dimensions used for the capacitor) Dielectric bar penetrates into the capacitor by a distance x a) Calculate the force generated by the energy stored in the capacitor and applied to the dielectric along the x-direction. b) State if the...

Question 4 1 pts A parallel-plate capacitor of capacitance C has the area of plates A...

Question 4 1 pts A parallel-plate capacitor of capacitance C has the area of plates A and distance between plates d. Capacitor is connected to the battery of voltage V, fully charged and then disconnected. A slab of dielectric material with dielectric constant 4 is then inserted into capacitor, completely filling region between plates. Electric field between plates of capacitor: decreases twice stays the same increases twice decreases 4 times increases 4 times
An air-filled parallel plate capacitor with a plate spacing of 1.90 cm has a capacitance of...

An air-filled parallel plate capacitor with a plate spacing of 1.90 cm has a capacitance of 4.10 μF. The plate spacing is now doubled and a dielectric is inserted, completely filling the space between the plates. As a result the capacitance becomes 16.9 μF. Calculate the dielectric constant of the inserted material.
An air-filled parallel plate capacitor with a plate spacing of 1.30 cm has a capacitance of...

An air-filled parallel plate capacitor with a plate spacing of 1.30 cm has a capacitance of 2.70 μF. The plate spacing is now doubled and a dielectric is inserted, completely filling the space between the plates. As a result the capacitance becomes 12.9 μF. Calculate the dielectric constant of the inserted material.

Question 4 1 pts A parallel-plate capacitor of capacitance C has the area of plates A...

Question 4 1 pts A parallel-plate capacitor of capacitance C has the area of plates A and distance between plates d. Capacitor is connected to the battery of voltage V, fully charged and stays connected. A slab of dielectric material with dielectric constant 4 is then inserted into capacitor, completely filling region between plates. Electric field between plates of capacitor: O stays the same O increases twice O decreases twice O decreases 4 times O increases 4 times
