fundamental of fluid mechanics

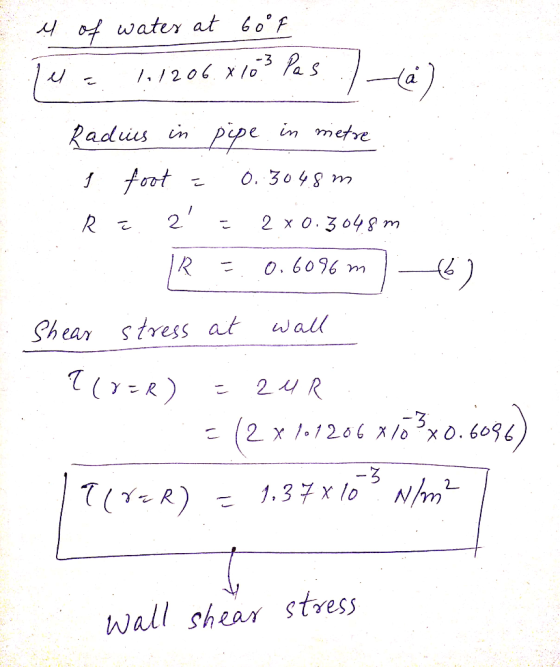

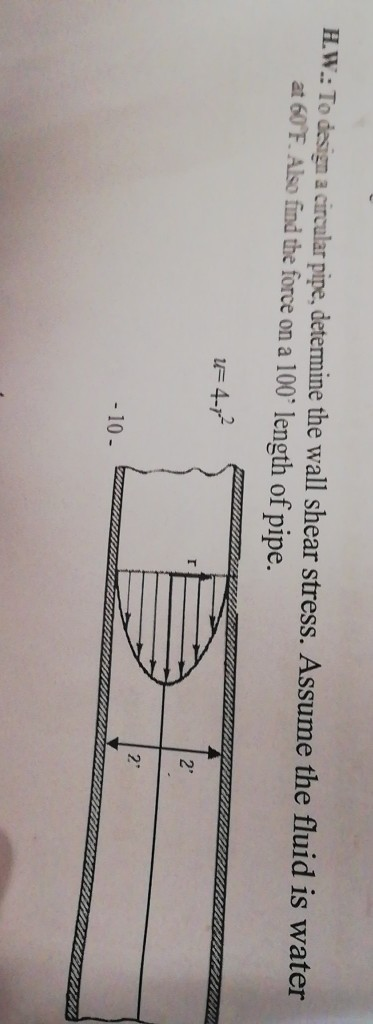

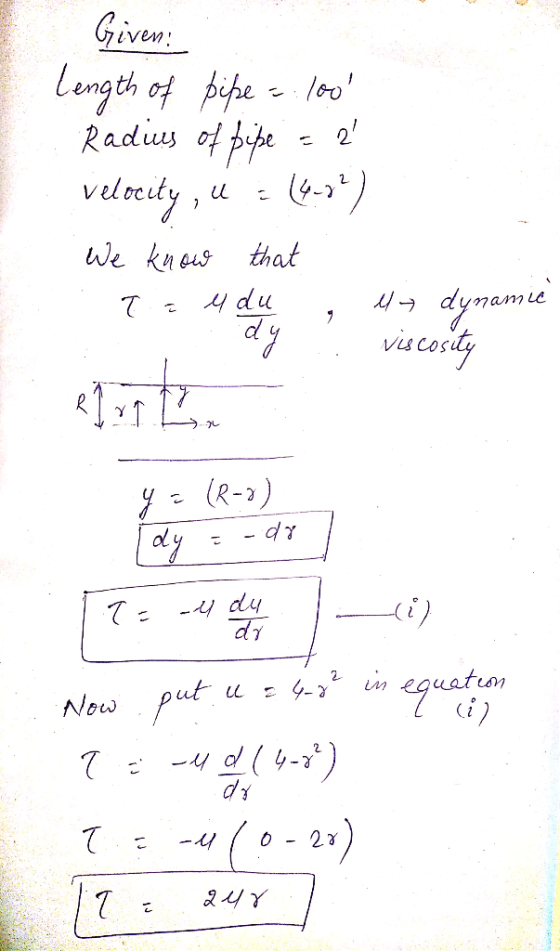

H.W: To design a circular pipe, determine the wall shear stress. Assume...
In a solid, shear stress is related to shear strain. In a fluid, shear stress is...
In a solid, shear stress is related to shear strain. In a fluid, shear stress is related to: The magnitude of the shear strain The slope of the shear strain The time rate of change of the shear strain The viscosity The Reynolds' number Flag this Question Question 21 pts Picture the flow of a fluid which has a non-zero viscosity in a pipe. Where is the velocity of this flow the greatest? At the wall fo the pipe Half...
Please Show work Assume that the wall shear stress, Tw, created when a fluid flows through...
Please Show work
Assume that the wall shear stress, Tw, created when a fluid flows through a pipe (see Figure a) depends on the pipe diameter, D, the flowrate, Q, the fluid density, p, and the kinematic viscosity, U. Some model tests run in a laboratory using water in a 0.2-ft-diameter pipe yield the vs. Q data shown in Figure b. Perform a dimensional analysis and use model data to predict the wall shear stress in a 0.5-ft-diameter pipe through...
CIVL 130 - FLUID MECHANICS Es. Given: Outflow structure Discharges through circular pipe Neglect Friction Assume...

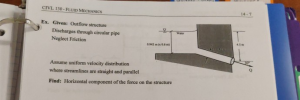

CIVL 130 - FLUID MECHANICS Es. Given: Outflow structure Discharges through circular pipe Neglect Friction Assume uniform velocity distribution where streamlines are straight and parallel Find: Horizontal component of the force on the structure
A C14500 hard copper pipe has an inner radius of 0.5 in. and a wall thickness...
A C14500 hard copper pipe has an inner radius of 0.5 in. and a wall thickness of 0.125 in. If the fluid flowing through it changes the temperature of the pipe to 180°F, determine the thermal stress in the pipe. The pipe was fitted between the walls when the pipe was at 60°F. Also determine if Hooke's law is valid, if it is safe and the axial force the bar exerts on the walls. Assume the wall is rigid. 8...
If the shear stress on the wall of a 30 cm pipe is 5 kg /...
If the shear stress on the wall of a 30 cm pipe is 5 kg / cm² and f = 0.04, what is the average velocity if water flows at 21 ° C and if oil of relative density 0.7 flows?
Carefully understand the concept and ansewr. FLuid Mechanics Consider a pipe system as shown in Figure...
Carefully understand the concept and ansewr. FLuid Mechanics
Consider a pipe system as shown in Figure 1. The pipe is connected to a mercury manometer at point 1 and point 2. Prove that the pipe wall between these points is exerting less than 600 N of fluid force. The frictional losses along the pipe is not negligible Water 1.5 m 1 0.15 m 2. 30° 0.15 m Mercury,SG 13.5
1. Some non-Newtonian fluids behave as a Bingham plastic for which shear stress can be expressed...
1. Some non-Newtonian fluids behave as a Bingham plastic for which shear stress can be expressed as + For laminar flow of a Bingham plastic in a horizontal pipe of radius R, the velocity profile is given as 4wr -R)+ (r-R), where AP/L is the constant pressure drop along the pipe per unit length, is the dynamic viscosity,r is the radial distance from the centerline, and is the yield stress of Bingham plastic. Develop a relation for (a) the shear...
A circular pipe, with an outside diameter of 30 mm and a wall thickness of 4 mm, is held stationary in a stream of air...
A circular pipe, with an outside diameter of 30 mm and a wall thickness of 4 mm, is held stationary in a stream of air for which T-30°C, F-1 atm , and V-25 m/s . The pipe, which is made of PVC, experiences cross-flow conditions in the moving air 1) The temperature at the inner surface of the pipe is maintained at 90°C. The outer surface of the pipe is smooth. Also, assume that steady-state conditions exist. Since the outer...
Engineering Fluid Mechanics PO 17: Water flows through a section of a pipe of length L...
Engineering Fluid Mechanics
PO 17: Water flows through a section of a pipe of length L and diameter D as indicated in the figure. The pipe has a roughness of k, = 0.3mm. The discharge is Q = 1m/s. The kinematic viscosity of water is V = 10 m/s. (a) What is the friction factor ? (Moody diagram on next page). (b) What is the head loss over the pipe section of length L? (c) What horizontal force is required...
maximum shear stress 10 in. 16 in. 8 in. 6 in. B G D E F...
maximum shear stress
10 in. 16 in. 8 in. 6 in. B G D E F H The pipe which has a diameter of 1.5 in. and weight of 0.8 lb/in is fixed to the wall at B. If a force, F, of 5 lb is applied, determine the maximum shear stress in the pipe at C and its location. Neglect the weight of the cross-bar where the forces, F, are applied. Maximum shear stress
Please Show work
Assume that the wall shear stress, Tw, created when a fluid flows through a pipe (see Figure a) depends on the pipe diameter, D, the flowrate, Q, the fluid density, p, and the kinematic viscosity, U. Some model tests run in a laboratory using water in a 0.2-ft-diameter pipe yield the vs. Q data shown in Figure b. Perform a dimensional analysis and use model data to predict the wall shear stress in a 0.5-ft-diameter pipe through...
CIVL 130 - FLUID MECHANICS Es. Given: Outflow structure Discharges through circular pipe Neglect Friction Assume uniform velocity distribution where streamlines are straight and parallel Find: Horizontal component of the force on the structure
A C14500 hard copper pipe has an inner radius of 0.5 in. and a wall thickness of 0.125 in. If the fluid flowing through it changes the temperature of the pipe to 180°F, determine the thermal stress in the pipe. The pipe was fitted between the walls when the pipe was at 60°F. Also determine if Hooke's law is valid, if it is safe and the axial force the bar exerts on the walls. Assume the wall is rigid. 8...
Carefully understand the concept and ansewr. FLuid Mechanics
Consider a pipe system as shown in Figure 1. The pipe is connected to a mercury manometer at point 1 and point 2. Prove that the pipe wall between these points is exerting less than 600 N of fluid force. The frictional losses along the pipe is not negligible Water 1.5 m 1 0.15 m 2. 30° 0.15 m Mercury,SG 13.5
1. Some non-Newtonian fluids behave as a Bingham plastic for which shear stress can be expressed as + For laminar flow of a Bingham plastic in a horizontal pipe of radius R, the velocity profile is given as 4wr -R)+ (r-R), where AP/L is the constant pressure drop along the pipe per unit length, is the dynamic viscosity,r is the radial distance from the centerline, and is the yield stress of Bingham plastic. Develop a relation for (a) the shear...
A circular pipe, with an outside diameter of 30 mm and a wall thickness of 4 mm, is held stationary in a stream of air for which T-30°C, F-1 atm , and V-25 m/s . The pipe, which is made of PVC, experiences cross-flow conditions in the moving air 1) The temperature at the inner surface of the pipe is maintained at 90°C. The outer surface of the pipe is smooth. Also, assume that steady-state conditions exist. Since the outer...
Engineering Fluid Mechanics
PO 17: Water flows through a section of a pipe of length L and diameter D as indicated in the figure. The pipe has a roughness of k, = 0.3mm. The discharge is Q = 1m/s. The kinematic viscosity of water is V = 10 m/s. (a) What is the friction factor ? (Moody diagram on next page). (b) What is the head loss over the pipe section of length L? (c) What horizontal force is required...
maximum shear stress
10 in. 16 in. 8 in. 6 in. B G D E F H The pipe which has a diameter of 1.5 in. and weight of 0.8 lb/in is fixed to the wall at B. If a force, F, of 5 lb is applied, determine the maximum shear stress in the pipe at C and its location. Neglect the weight of the cross-bar where the forces, F, are applied. Maximum shear stress
