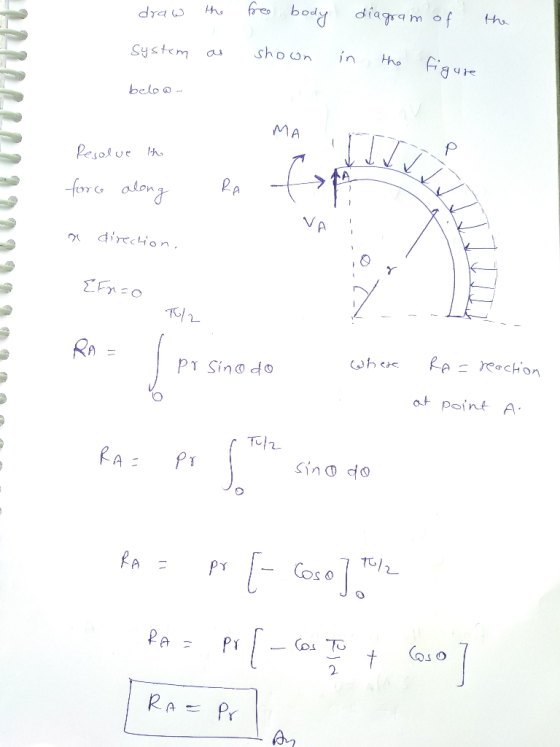

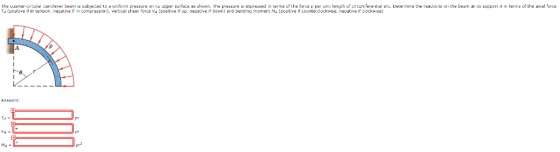

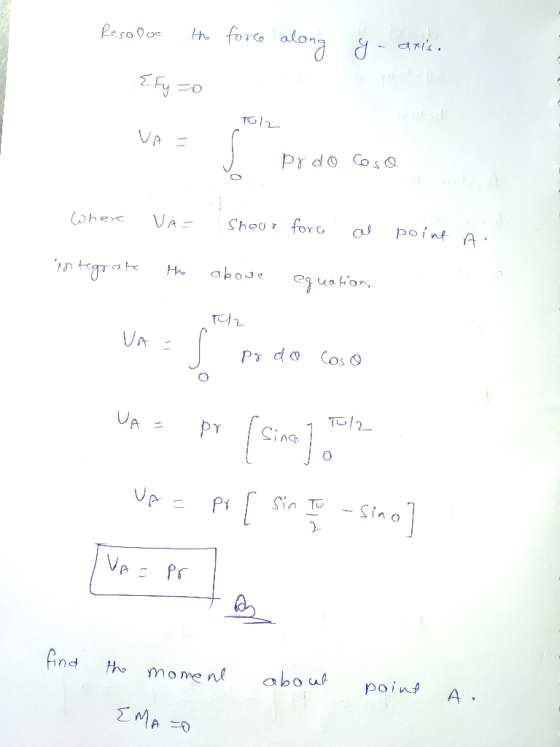

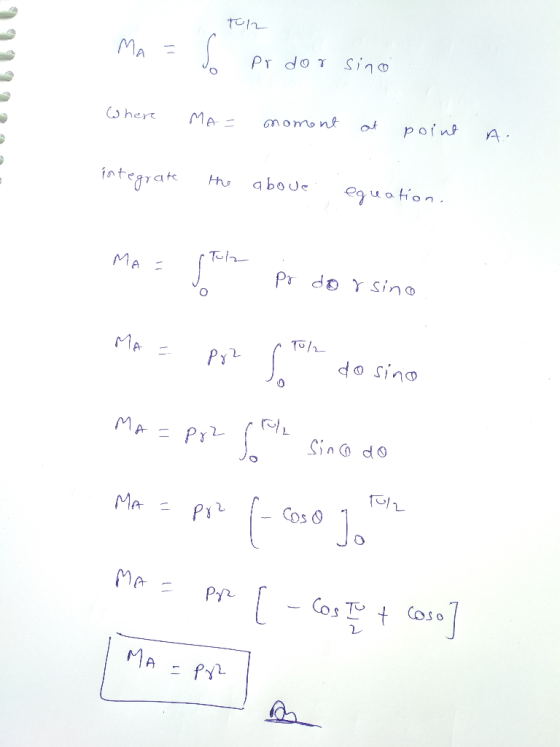

etermine the reactions uri the beam at its sugpurt A in terms of the axial fotcH...
Mechanics of Solids Assignment I Fall 2018 . Weights W are attached by cables to beam BE at its midpoint D and at its end E, as shown in the fig. The beam is supported by a pin at B and by an inclined cable from A to D. Determine (a) the tension in cable AD, and the reaction force at pin B. (b) the internal resultants (axial force, shear force, and bending moment) on the cross section at C...
Calculate....
1. Calculate the support reactions and draw the axial force, shear force and bending moment diagrams for the beams and frame shown in Fig. 1, labelling all important values (such as, but not necessarily limited to, locations of points of inflection and values of shears and moments at supports, intersections and discontinuities). For the portal frame in li) assume there are points of inflection in the columns located 2.4m up from the ground and one in the beam midway...
2) For the beam given below, calculate reactions at both supports A and B. Draw the shear and moment diagrams. Label the maximum shear and moment values on the diagrams. (20 pts) 8/ 59% ART 5'-0" T4'-0" 30"
3 (a) For the beam shown in Figure Q3.1, E 200GPa and I 22:10 m throughout. By using the stiffness method and neglecting axial effects: (i) Calculate the rotations of each of the supports [5 marks (ii) Calculate the bending moment and shear force diagrams. [10 marks] (iii) Calculate the reactions and check equilibrium. [5 marks] 7.5kNm SkNm 2 2 Im Im Figure Q3.1
3 (a) For the beam shown in Figure Q3.1, E 200GPa and I 22:10 m throughout....
3 (a) For the beam shown in Figure Q3.1, E 200GPa and I 22:10 m throughout. By using the stiffness method and neglecting axial effects: (i) Calculate the rotations of each of the supports [5 marks (ii) Calculate the bending moment and shear force diagrams. [10 marks] (iii) Calculate the reactions and check equilibrium. [5 marks] 7.5kNm SkNm 2 2 Im Im Figure Q3.1
3 (a) For the beam shown in Figure Q3.1, E 200GPa and I 22:10 m throughout....
The simple beam consisted of a hinge A and a roller B. Draw (a)
axial force diagram (b) shear force diagram (c) moment diagram of
Member AB. Please write the calculation solution in detail.
2m 20KN 2kN/m 10KN ITI 2m 2m1 B А. с 5 m 5 m 8 m J2m
The figure below depicts the cantilever beam. Determine the magnitudes of bending moment (M) in kNm, axial stress() in kN/m2, and shear force (V) in kN acting at point A. The equation for finding the axial stress is = Axial load / cross-section area. Cable XX XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXI BT Beam (0.2 m × 0.2 m) Frictionless Pulley 3 m 50 kN Select one: a Bending moment (M) = 150 kNm, Shear force = 50 kN and axial stress = 1250 kN/m2...
Calculate the reactions of the beam in Figure 2. Draw a bending
moment diagram (BMD) and a shear force diagram (SFD) for the beam.
A simply supported beam as shown in the figure. The beam section is W18x211. The beam must support its own weight and must carry the following loading: Super-imposed distributed dead load = 0.25 kip/ft Distributed live load = 1 kip/ft Concentrated dead load = 12 kip The beam span L = 26 ft and the distance of the concentrated load from the right support a=6 ft. Consider analy- sis of beam subjected to load combination 1.2 dead + 1.6 live....
Problem 1 Indeterminate Beam Reactions (50 pts.) With reference to Figure 1, determine the beam reactions (forces and moments). Use the slope deflection method. Draw the shear and bending moment diagrams E 29,000 ksi I 1830 in FIGURE 1 3
