The frame ACD is hinged at A and D and is supported by a cable that passes through a ring...

The frame ACD is hinged at A and D and is supported by a cable that passes through a ring at B and is attached to hooks at G and H. Knowing that the tension in the cable is 450 N, determine the moment about the diagonal AD of the force exerted on the frame by portion BH of the cable.

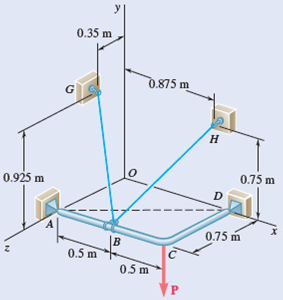

Fig. P3.45
