A force P is applied to a bent rod ABC, which can be supported in four different ways as s...

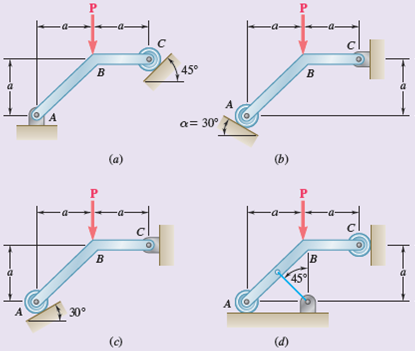

A force P is applied to a bent rod ABC, which can be supported in four different ways as shown. In each case, if possible, determine the reactions at the supports.
Fig. P4.107
