Problem

A 200-mm lever and a 240-mm-diameter pulley are welded to axle BE, which is supported by b...

A 200-mm lever and a 240-mm-diameter pulley are welded to axle BE, which is supported by bearings at C and D. If a 720-N vertical load is applied at A when the lever is horizontal, determine (a) the tension in the cord, (b) the reactions at C and D. Assume that the bearing at D does not exert any axial thrust.

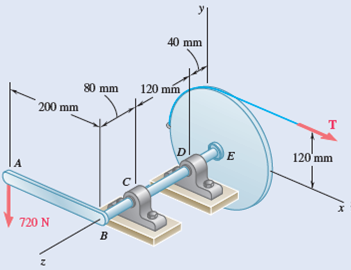

Fig. P4.55

Step-by-Step Solution

Request Professional Solution

Request Solution!

We need at least 10 more requests to produce the solution.

0 / 10 have requested this problem solution

The more requests, the faster the answer.

Request! (Login Required)

All students who have requested the solution will be notified once they are available.

Add your Solution
