(Financial application: tax calculator) Create an applet to compute tax, as shown in Fig...

(Financial application: tax calculator) Create an applet to compute tax, as shown in Figure 18.17c. The applet lets the user select the tax status and enter the taxable income to compute the tax based on the 2001 federal tax rates, as shown in Programming Exercise 10.8.

Ref prb:

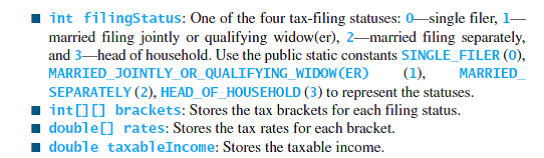

(Financial: the Tax class) Programming Exercise 7.12 writes a program for computing taxes using arrays. Design a class named Tax to contain the following instance data fields:

Provide the get and set methods for each data field and the getTax() method that returns the tax. Also provide a no-arg constructor and the constructor

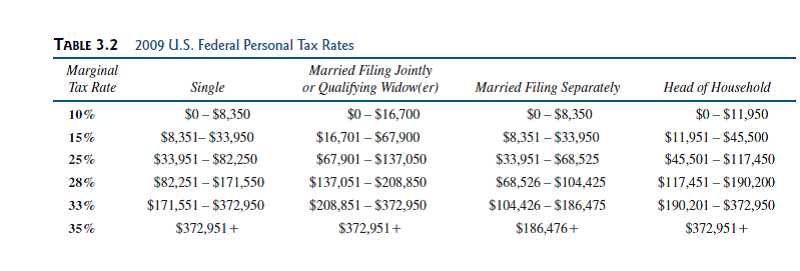

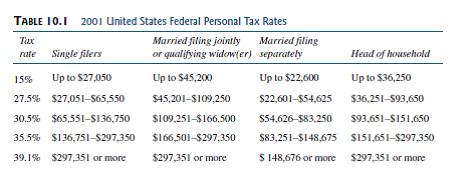

Draw the UML diagram for the class and then implement the class. Write a test program that uses the Tax class to print the 2001 and 2009 tax tables for taxable income from $50,000 to $60,000 with intervals of $1,000 for all four statuses. The tax rates for the year 2009 were given in Table 3.2. The tax rates for 2001 are shown in Table 10.1.

Ref prb:

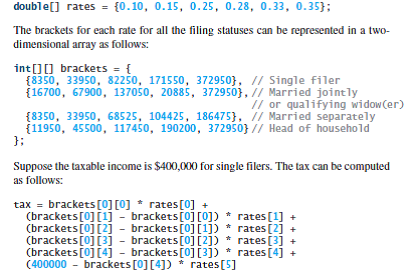

(Financial application: compute tax) Rewrite Listing 3.6, ComputeTax.java, using arrays. For each filing status, there are six tax rates. Each rate is applied to a certain amount of taxable income. For example, from the taxable income of $400,000 for a single filer, $8,350 is taxed at 10%, (33,950 – 8,350) at 15%, (82,250 – 33,950) at 25%, (171,550 – 82,550) at 28%, (372,550 – 82,250) at 33%, and (400,000 – 372,950) at 36%. The six rates are the same for all filing statuses, which can be represented in the following array:
