Problem

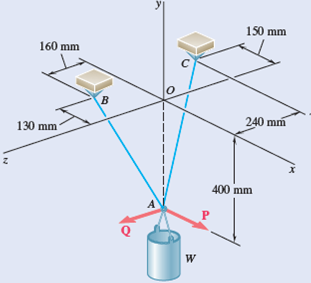

A container of weight W is suspended from ring A. Cable BAC passes through the ring and is...

A container of weight W is suspended from ring A. Cable BAC passes through the ring and is attached to fixed supports at B and C. Two forces P = Pi and Q = Qk are applied to the ring to maintain the container in the position shown. Knowing that W = 376 N, determine P and Q. (Hint: The tension is the same in both portions of cable BAC.)

Fig. P2.94
