Problem

A container of weight W is suspended from ring A, to which cables AC and AE are attached....

A container of weight W is suspended from ring A, to which cables AC and AE are attached. A force P is applied to the end F of a third cable that passes over a pulley at B and through ring A and that is attached to a support at D. Knowing that W = 1000 N, determine the magnitude of P. (Hint: The tension is the same in all portions of cable FBAD.)

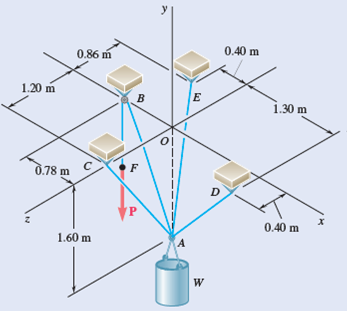

Fig. P2.98
