For the Darlington network of Fig. 5.181:a. Determine the dc levels of  and b. Find the cu...

For the Darlington network of Fig. 5.181:

a. Determine the dc levels of  and

b. Find the currents  and

c. Calculate Zi and Zo.

d. Determine the voltage gain Av = Vo/Vi and current gain Ai = Io/Ii.

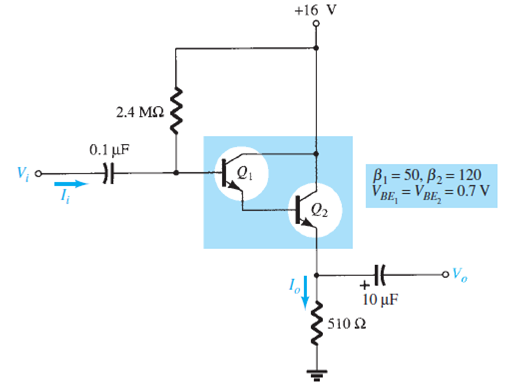

FIG. 5.181
