For the emitter-stabilized network of Fig. 5.174:a. Determine  Zi, and Zo.b. Sketch the tw...

For the emitter-stabilized network of Fig. 5.174:

a. Determine  Zi, and Zo.

b. Sketch the two-port model of Fig. 5.63 with the values determined in part (a).

c. Determine and

d. Change Rs to 1 kΩ. What is the effect on  Zi, and Zo?

e. Change Rs to 1 kΩ and determine and  What is the effect of increasing levels of Rs on and ?

f. Determine Ai = Io/Ii.

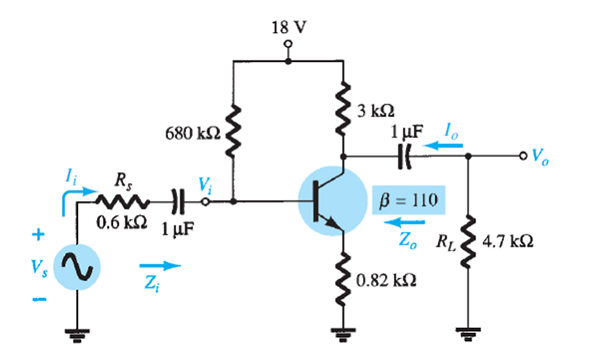

FIG. 5.173

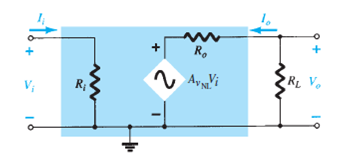

FIG. 5.63 Applying a load to the two-port system of Fig. 5.62.

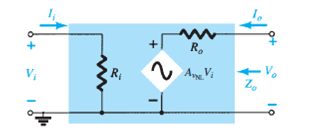

FIG. 5.62 Substituting the internal elements for the two-port system of Fig. 5.61.

FIG. 5.61 Two-port system.

Step-by-Step Solution

Request Professional Solution

Request Solution!

We need at least 10 more requests to produce the solution.

0 / 10 have requested this problem solution

The more requests, the faster the answer.

Request! (Login Required)

All students who have requested the solution will be notified once they are available.
Add your Solution
