Problem

Four weights, of masses m1 = 6.50 kg, m2 = 3.80 kg, m3 = 10.70 kg, and m4 = 4.20 kg, are h...

Four weights, of masses m₁ = 6.50 kg, m₂ = 3.80 kg, m₃ = 10.70 kg, and m₄ = 4.20 kg, are hanging from the ceiling as shown in the figure. They are connected with ropes. What is the tension in the rope connecting masses m₁ and m₂?

Step-by-Step Solution

Solution 1

Step #1 of 4

Think:

Think about the forces acting in between. And then calculate the net force acting on the system along y axis using Newton’s second law.

Step #2 of 4

Research:

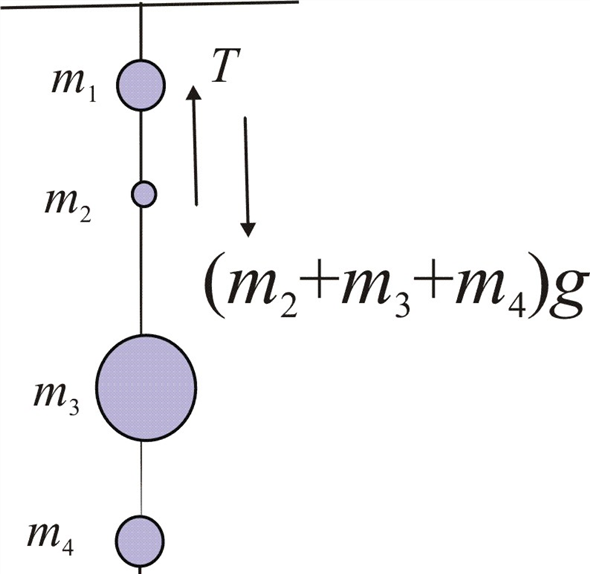

Taking the help of a free body diagram, we can identify the forces acting on the system at the given points. In this case, in between, the tension is directed in the upward direction and the weight of the three masses will be in the downward direction.
