Problem

The garden shears shown consist of two blades and two handles. The two handles are connect...

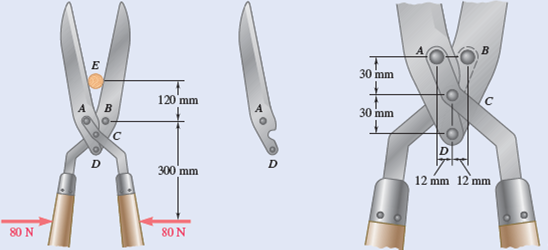

The garden shears shown consist of two blades and two handles. The two handles are connected by pin C and the two blades are connected by pin D. The left blade and the right handle are connected by pin A; the right blade and the left handle are connected by pin B. Determine the magnitude of the forces exerted on the small branch at E when two 80-N forces are applied to the handles as shown.

Fig. P6.87
