Problem

A 400-kg block may be supported by a small frame in each of the four ways shown. The diame...

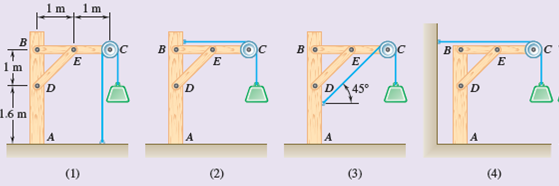

A 400-kg block may be supported by a small frame in each of the four ways shown. The diameter of the pulley is 250 mm. For each case, determine (a) the force components and the couple representing the reaction at A, (b) the force exerted at D on the vertical member.

Fig. P6.108
