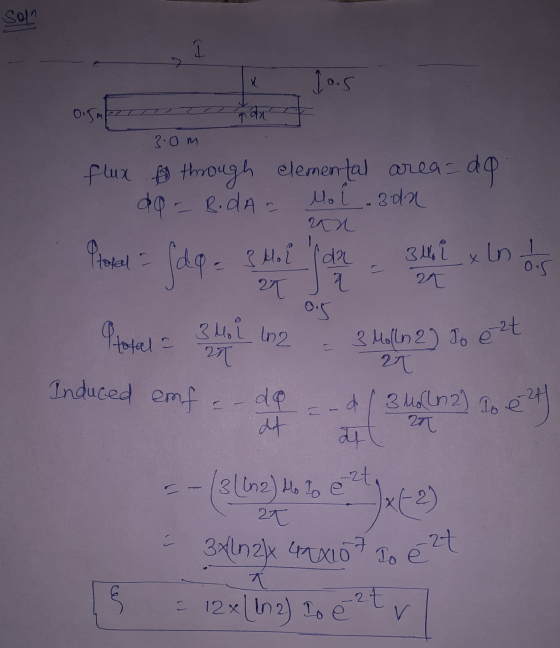

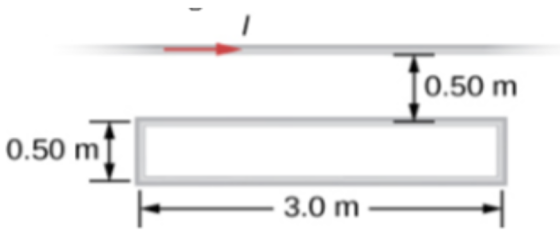

Shown in the following figure is a long, straight wire and a single-turn rectangular loop, both of which lie in the plane of the page.
Shown in the following figure is a long, straight wire and a single-turn rectangular loop, both of which lie in the plane of the page. The wire is parallel to the long sides of the loop and is 0.50 m away from the closer side. The time rate of change of the current in the wire is l=l0e-2t. What is the emf induced in the loop?
Homework Answers
Add Answer to:
Shown in the following figure is a long, straight wire and a single-turn rectangular loop, both of which lie in the plane of the page.
A long, straight wire carries a current and lies in the plane of a rectangular loops of wire, as shown in the figure.
A long, straight wire carries a current and lies in the plane of a rectangular loops of wire, as shown in the figure. Determine the maximum emf, |epsilon|, induced in the loop by the magnetic field created by the current in the straight wire.
A very long wire and a square loop of wire lie in the plane of the...
A very long wire and a square loop of wire lie in the plane of the page as shown. Each side of the square is 15 cm in length, the resistance of the loop is 0.6 Ω, and the near side of the loop is 3 cm from the long wire. The current in the long wire is to the right and is increasing. At the moment, the current in the long wire is 6.5 A. The magnetic flux through...
A long straight wire is in the same plane as a rectangular, conducting loop. The wire carries a constant current I as shown in the figure.
A long straight wire is in the same plane as a rectangular, conducting loop. The wire carries a constant current I as shown in the figure. a) If the wire is suddenly moved toward the loop, in which direction will the induced current be? b) If the current in the wire is suddenly increased, in which direction will the induced current be? EXPLAIN your answers!
A flat rectangular wire loop is positioned next to a long straight current-carrying wire
Problem 6: A flat rectangular wire loop is positioned next to a long straight current-carrying wire. Both the loop and the wire are in the plane of the page, and the direction of the current is clearly indicated in the figure.Part (a) Which image best indicates the direction of the magnetic field due to the current in the long straight wire at a point inside the loop? Part (b) How does the magnitude of the magnetic field change as the perpendicular...
A rectangular loop of dimensions / and w moves with a constant velocity v away from an infinitely long straight wire carrying a current I in the plane of the loop, as shown in Figure 10.9.6
Problem 2 (Current through Loop) A rectangular loop of dimensions / and w moves with a constant velocity v away from an infinitely long straight wire carrying a current I in the plane of the loop, as shown in Figure 10.9.6. Let the total resistance of the loop be R. What is the current in the loop at the instant the near side is a distance r from the wire? Figure 10.9.6 A rectangular loop moving away from a current-carrying wire
A long straight wire and rectangular thin wire loop shown in the figure below are in...
A long straight wire and rectangular thin wire loop shown in the figure below are in the same plane with the geometrical dimensions specified as a=0.444 cm, b=2.75 cm and c=80.5 cm. The total resistance of the wire loop R=1.95 1. The long wire is driven by a triangle-wave generator resulting in the time-dependent current waveform I(t) also depicted in the figure. The magnitude of the waveform Io=13.24 A and the frequency f=56 Hz (temporal period of the waveform T=1/f)....
A long, straight wire carries a current I. A rectangular loop with two sides parallel to...
A long, straight wire carries a current I. A rectangular loop with two sides parallel to the straight wire has sides a and b with its near side a distance d from the straight wire, as shown in Figure below. Compute the magnetic flux through the rectangular loop, and evaluate your answer for a = 0.042 cm, b = 0.096 cm, d = 0.019 cm, and I = 15 A.
A long straight wire is parallel to one edge and is in the of a single...
A long straight wire is parallel to one edge and is in the of a single turn conducting rectangular loop as shown below. Compute the magnetic flux through the rectangular loop due to the long wire at a time when the current in the long wire has a value 1 and flows in the direction indicated. (Express your answer in terms of a, b, d, I and fundamental constant (s).) Suppose that d = 2.0 cm, a 3.0 cm, and...
Long straight wire carries current to the right of the page. A rectangular loop is positioned...
Long straight wire carries current to the right of the page. A rectangular loop is positioned directly under the wire in the plane of the page and carries current in clockwise direction. The net force exerted by this loop on the straight wire with current is directed a. towards the loop b. away from the loop c. to the right of the page d. to the left of the page e. is zero
4. A long straight wire carrying a current is in the plane of a circular loop...
4. A long straight wire carrying a current is in the plane of a circular loop of wire. The current is decreasing. Both the loop and the wire are held in place by external forces. The loop has a resistance of 24. -Long wire Conducting loop a) In what direction does the induced current in the loop flow? Mint: first find the external magnetic field at the loop due to the long wire, figure out if the flux through the...
A very long wire and a square loop of wire lie in the plane of the page as shown. Each side of the square is 15 cm in length, the resistance of the loop is 0.6 Ω, and the near side of the loop is 3 cm from the long wire. The current in the long wire is to the right and is increasing. At the moment, the current in the long wire is 6.5 A. The magnetic flux through...
A long straight wire and rectangular thin wire loop shown in the figure below are in the same plane with the geometrical dimensions specified as a=0.444 cm, b=2.75 cm and c=80.5 cm. The total resistance of the wire loop R=1.95 1. The long wire is driven by a triangle-wave generator resulting in the time-dependent current waveform I(t) also depicted in the figure. The magnitude of the waveform Io=13.24 A and the frequency f=56 Hz (temporal period of the waveform T=1/f)....
A long straight wire is parallel to one edge and is in the of a single turn conducting rectangular loop as shown below. Compute the magnetic flux through the rectangular loop due to the long wire at a time when the current in the long wire has a value 1 and flows in the direction indicated. (Express your answer in terms of a, b, d, I and fundamental constant (s).) Suppose that d = 2.0 cm, a 3.0 cm, and...
4. A long straight wire carrying a current is in the plane of a circular loop of wire. The current is decreasing. Both the loop and the wire are held in place by external forces. The loop has a resistance of 24. -Long wire Conducting loop a) In what direction does the induced current in the loop flow? Mint: first find the external magnetic field at the loop due to the long wire, figure out if the flux through the...
