Charged Ring
Consider a uniformly charged ring in the xy plane, centered at the origin. The ring has radius a and positive charge q distributed evenly along its circumference.
What is the magnitude of the electric field along the positive z axis? Use k in your answer, where
.
Homework Answers
The electric fields in the xy plane cancel by symmetry, and thez-components from charge elements can be simply added.
Thus, Ez = kqz / (z^2+a^2)^3/2
Consider a uniformly charged ring in the xy plane,centered at the origin. The ring has radius...
Consider a uniformly charged ring in the xy plane, centered
at the origin. The ring has radius a and positive charge q distributed evenly along its circumference. PartAWhat is the direction of the electric fieldat
any point on the z axis?parallel to the x axisparallel to the y axisparallel to the z axisin a circle parallel to the xy planePartBWhat is the magnitude of the electric
fieldalong the positive z axis?Use k in your answer, where .E(z) =PartCImagine a small metal ball of mass m and negative charge -q0. The ball is released...

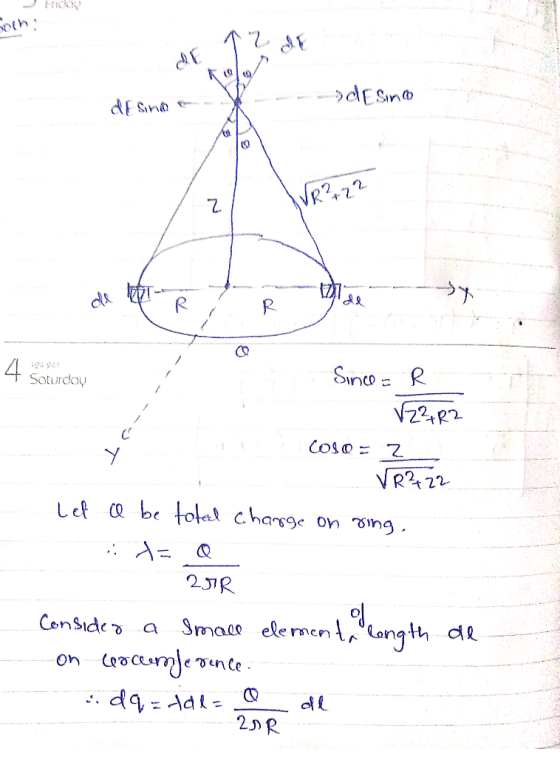

A ring with radius R and a uniformly distributed total charge Q lies in the xy plane, centered at the origin. (Figure 1)

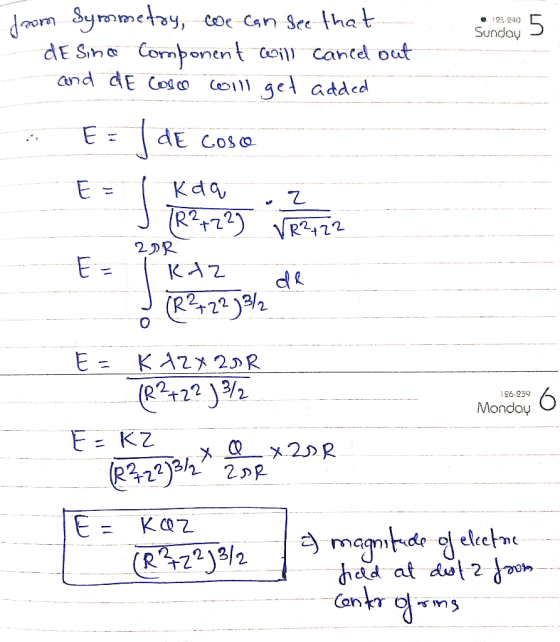

A ring with radius R and a uniformly distributed total charge Q lies in the xy plane, centered at the origin. (Figure 1) Part B What is the magnitude of the electric field E on the z axis as a function of z, for z >0?
potential of a charged ring
A ring with radius and a uniformlydistributed total charge lies inthe xy plane, centered at the origin.What is the potential due to the ring on the z axis as a function of ?Express your answer in terms of , , , and or .What is the magnitude of the electric field on the z axis as a function of , for ?Express your answer in terms of , , , and or .
A charged disk and a charged ring are centered at the origin in the free space...
A charged disk and a charged ring are centered at the origin in the free space as shown in figure 4. Bothe changed elements exists in the xy plane. The disk has a radius a and carries a uniform surface charge density of Ps. The ring has a radius 2a and carries a uniform line charge density Pe. Find the following: a) The electric field intensity on z-axis and determine where the electric field is zero b) The electric potential...
A ring of radius a carries a uniformly distributed positive total charge Q. Calculate the electric field due to the ring at a point P lying a distance & from its center along the central axis perpendicular to the plane of the ring.
A ring of radius a carries a uniformly distributed positive total charge Q. Calculate the electric field due to the ring at a point P lying a distance & from its center along the central axis perpendicular to the plane of the ring.
A positively charged disk of radius R and total charge Qdisk lies in the xz plane, centered on the y axis (see figure below)
A positively charged disk of radius R and total charge Qdisk lies in the xz plane, centered on the y axis (see figure below). Also centered on the y axis is a charged ring with the same radius as the disk and total charge Qring. The ring is a distance d above the disk. Determine the electric field at the point P on the y axis, where P is above the ring a distance y from the origin. (Use any...
MI.1. A thin circular plastic ring carries a net charge that is uniformly distributed throughout the...
MI.1. A thin circular plastic ring carries a net charge that is uniformly distributed throughout the ring with a linear density of λ = 3.4 × 10-6 C/m. This ring is positioned parallel to a neutrally- charged infinite conducting plane such that its distance from the plane equals the radius (a) of the ring Fig.1]. It can be shown that the magnitude of the electric field on the axis of the this ring is given by: 20 (a+r2)3/2 where x...
A uniformly charged ring with total charge q = 3.20 µC and radius R = 17.0...
A uniformly charged ring with total charge q = 3.20 µC and radius R = 17.0 cm is placed with its center at the origin and oriented in the xy plane. What is the difference between the electric potential at the origin and the electric potential at the point (0, 0, 35.5 cm)?
UN uniform ombs and ane, center A uniform circular ring of charge Q= 4.30 microCoulombs and...
UN uniform ombs and ane, center A uniform circular ring of charge Q= 4.30 microCoulombs and radius R= 1.10 cm is located in the x-y plane, centered on the origin as shown in the figure. What is the magnitude of the electric field E at point P, located at z= 3.90 cm? Submit Answer Tries 0/40 Consider other locations along the positive z-axis. At what value of z does E have its maximum value? Submit Answer Tries 0/40 What is...
Find an expression for the position y (along the positive axis perpendicular to the ring and...
Find an expression for the position y (along the positive axis perpendicular to the ring and passing through its center) where the electric field due to a charged ring is a maximum. Also find an expression for the electric field at that point. (Use the following as necessary: R for the radius of the ring, Q for the charge on the ring and k for Coulomb's constant. Enter the magnitudes. Assume Q is positive.) y = E =
Consider a uniformly charged ring in the xy plane, centered
at the origin. The ring has radius a and positive charge q distributed evenly along its circumference. PartAWhat is the direction of the electric fieldat
any point on the z axis?parallel to the x axisparallel to the y axisparallel to the z axisin a circle parallel to the xy planePartBWhat is the magnitude of the electric
fieldalong the positive z axis?Use k in your answer, where .E(z) =PartCImagine a small metal ball of mass m and negative charge -q0. The ball is released...
A charged disk and a charged ring are centered at the origin in the free space as shown in figure 4. Bothe changed elements exists in the xy plane. The disk has a radius a and carries a uniform surface charge density of Ps. The ring has a radius 2a and carries a uniform line charge density Pe. Find the following: a) The electric field intensity on z-axis and determine where the electric field is zero b) The electric potential...
MI.1. A thin circular plastic ring carries a net charge that is uniformly distributed throughout the ring with a linear density of λ = 3.4 × 10-6 C/m. This ring is positioned parallel to a neutrally- charged infinite conducting plane such that its distance from the plane equals the radius (a) of the ring Fig.1]. It can be shown that the magnitude of the electric field on the axis of the this ring is given by: 20 (a+r2)3/2 where x...
UN uniform ombs and ane, center A uniform circular ring of charge Q= 4.30 microCoulombs and radius R= 1.10 cm is located in the x-y plane, centered on the origin as shown in the figure. What is the magnitude of the electric field E at point P, located at z= 3.90 cm? Submit Answer Tries 0/40 Consider other locations along the positive z-axis. At what value of z does E have its maximum value? Submit Answer Tries 0/40 What is...
