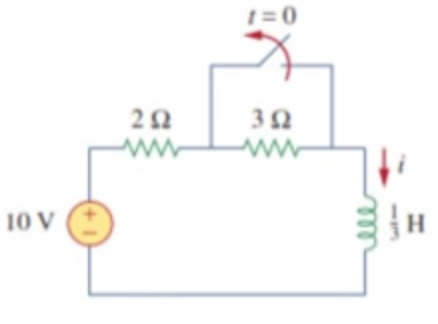

Find i(t) in the circuit for t > 0

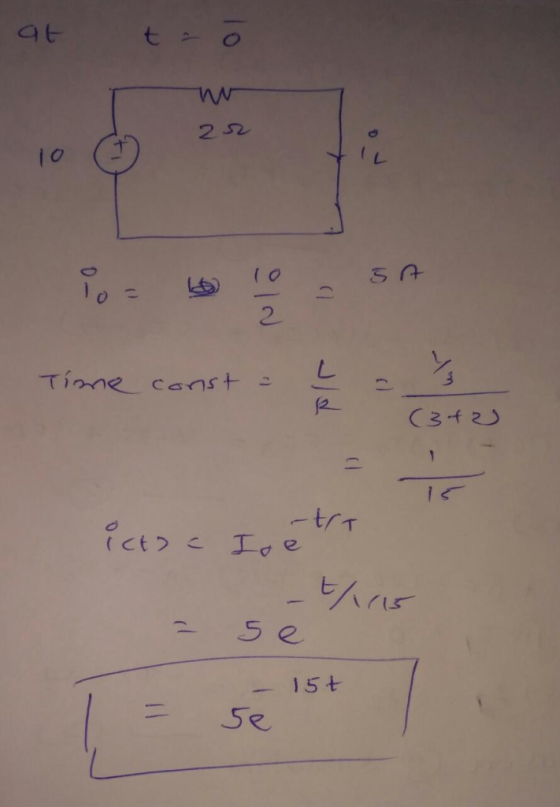

Find i(t) in the circuit for t > 0. Assume that the switch has been closed for a very long time, and opened at t = 0.
Homework Answers
Question 1: In the following circuit, find i() for t> 0. Assume that the switch has...
Question 1: In the following circuit, find i() for t> 0. Assume that the switch has been closed for a long time and is opened at t-0. 6Ω 1.5Ω 0.1 F io) 1.25H
Problem 4 = 20A Find i(t) and v(t) for t > 0 in the circuit below...
Problem 4 = 20A Find i(t) and v(t) for t > 0 in the circuit below if i(0) 2 H 202 5Ω v(t) 1Ω Problem 5 If the switch in circuit below has been open for a long time and is closed at t = 0, find vo(t) a. Suppose that the switch has been closed for a long time and is opened at t = 0. Find vo(t). b. t = 0 2Ω WW 3 F 4Ω 18 V
The switch in the circuit shown has been closed for a long time and is opened at t = 0. Find
The switch in the circuit shown has been closed for a long time and is opened at t = 0. Find a) The initial value of v(t), b) The time constant for t>0. c) The numerical expression for v(t) after the switch has been opened, d) The initial energy stored in the capacitor, and e) The length of time required to dissipate 75% of the initially stored energy.
In the circuit shown below, switch S has been closed for a very long time and it is opened at t = 0
Q3. In the circuit shown below, switch S has been closed for a very long time and it is opened at t = 0. Find the solution for the current i(t) passing through the inductor. Q4. In the circuit shown, the initial capacitor voltage is v(0) =5 V. (a) Find the capacitor voltage v(r) for t > 0. (b) Find the current io(t).
4. Find i(t) in the circuit shown in Figure 4 fort>0. Assume that the switch has...
4. Find i(t) in the circuit shown in Figure 4 fort>0. Assume that the switch has been open for a very long time when t < 0. (25 points) t=0 29) 2? 3? i(t) Figure 4
The switch in the circuit has been closed for a long time and is opened at t = 0.
The switch in the circuit has been closed for a long time and is opened at t = 0. a. Calculate the initial value of I b. Calculate the initial energy stored in the inductor. c. What is the time constant of the circuit for t ≥ 0? d. What is the numerical expression for i() for t20? e. What percentage of the initial energy stored has been dissipated in the 4 Ω resistor 5ms after the switch has been opened?
Problem 2:(20 points) Consider the RC circuit in Figure 2. You may assume that the switch...
Problem 2:(20 points) Consider the RC circuit in Figure 2. You may assume that the switch has been opened long enough for the voltages and currents to reach steady-state values. At time t = 0 the switch is closed. t-0 Figure 2: The switch in the RC circuit is closed at timet0 1. (6 points) Find the voltage v(0-) and the current i(0) just before the switch is closed. 2. (6 points) Find the voltage v(0+) and the current i(0+)immediately...
do not use s domain method ,use only differential equation 3. In the circuit shown, switch 1 has been closed for a long time before it is opened at t 0, and switch 2 has been opened for a long time b...
do not use s domain method ,use only differential equation
3. In the circuit shown, switch 1 has been closed for a long time before it is opened at t 0, and switch 2 has been opened for a long time before it is closed at t = 0. SW2 sw, 0.5Ω R2 1(2 A, 20 A i(t) 0.5 H a. Find the initial voltage v(O)- Vo across the capacitor and initial current through the inductor (0) lo at t...
Problem 1:(20 points) Consider the RL circuit in Figure 1. You may assume that the switch...
Problem 1:(20 points) Consider the RL circuit in Figure 1. You may assume that the switch has been closed long enough for the voltages and currents to reach steady-state values. At timet 0 the switch is opened. 1 0 Rs Ri Figure 1: The switch in the RL circuit is opened at time t 0 1. (6 points) Find the voltage v(0-) and the current i(0) just before the switch is opened. 2. (6 points) Find the voltage v(0+) and...
Determine the stored energy in the circuit at t = 0 and at t = 00....
Determine the stored energy in the circuit at t = 0 and at t = 00. Assume that the switch has been closed for a very long time and then it opens at t = 0 and remains open. to 12 AM- €2H
Question 1: In the following circuit, find i() for t> 0. Assume that the switch has been closed for a long time and is opened at t-0. 6Ω 1.5Ω 0.1 F io) 1.25H
Problem 4 = 20A Find i(t) and v(t) for t > 0 in the circuit below if i(0) 2 H 202 5Ω v(t) 1Ω Problem 5 If the switch in circuit below has been open for a long time and is closed at t = 0, find vo(t) a. Suppose that the switch has been closed for a long time and is opened at t = 0. Find vo(t). b. t = 0 2Ω WW 3 F 4Ω 18 V
4. Find i(t) in the circuit shown in Figure 4 fort>0. Assume that the switch has been open for a very long time when t < 0. (25 points) t=0 29) 2? 3? i(t) Figure 4
Problem 2:(20 points) Consider the RC circuit in Figure 2. You may assume that the switch has been opened long enough for the voltages and currents to reach steady-state values. At time t = 0 the switch is closed. t-0 Figure 2: The switch in the RC circuit is closed at timet0 1. (6 points) Find the voltage v(0-) and the current i(0) just before the switch is closed. 2. (6 points) Find the voltage v(0+) and the current i(0+)immediately...
do not use s domain method ,use only differential equation
3. In the circuit shown, switch 1 has been closed for a long time before it is opened at t 0, and switch 2 has been opened for a long time before it is closed at t = 0. SW2 sw, 0.5Ω R2 1(2 A, 20 A i(t) 0.5 H a. Find the initial voltage v(O)- Vo across the capacitor and initial current through the inductor (0) lo at t...
Problem 1:(20 points) Consider the RL circuit in Figure 1. You may assume that the switch has been closed long enough for the voltages and currents to reach steady-state values. At timet 0 the switch is opened. 1 0 Rs Ri Figure 1: The switch in the RL circuit is opened at time t 0 1. (6 points) Find the voltage v(0-) and the current i(0) just before the switch is opened. 2. (6 points) Find the voltage v(0+) and...
Determine the stored energy in the circuit at t = 0 and at t = 00. Assume that the switch has been closed for a very long time and then it opens at t = 0 and remains open. to 12 AM- €2H
