Determine the stored energy in the circuit at t = 0 and at t = 00....

Question

Question

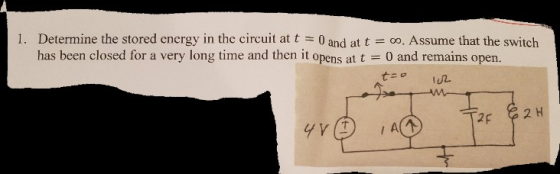

Determine the stored energy in the circuit at t = 0 and at t = 00. Assume that the switch has been closed for a very long tim

engineering Electrical-Engineering

Answer 1

Answer #1

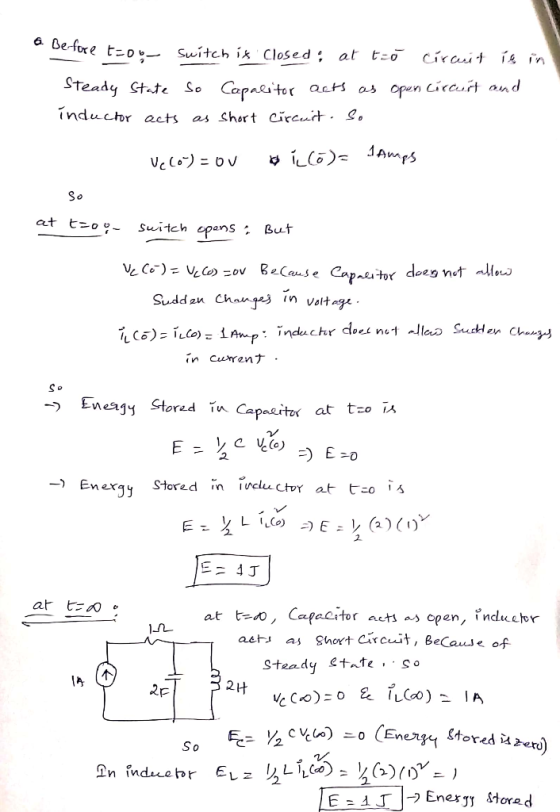

Before to- Switch is Closed : at tzo cirait is in Steady State So Capaeitor acts as opun Ciccurt and induchr ects as short Ci

Answer 2
