A block of mass 3.00 kg is pressed against a spring (k=3,100N/m) near the bottom of a board inclined at θ = 28.0°

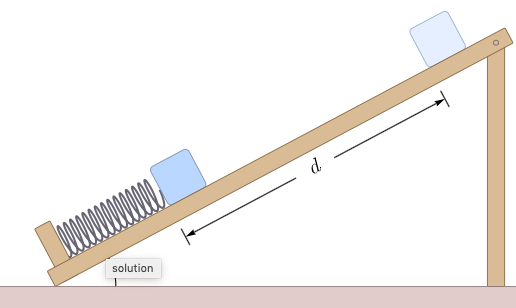

A block of mass 3.00 kg is pressed against a spring (k=3,100N/m) near the bottom of a board inclined at θ = 28.0°, as shown in Figure A2.08. When released, the block is projected up the incline and the spring expands by 14.0 cm to its normal length. Using the law of conservation of energy, determine the maximum distance (d) traveled by the block up the incline,

(a) in the absence of friction.

(b)when the coefficient of kinetic friction between the block and the board is 0.200.



science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

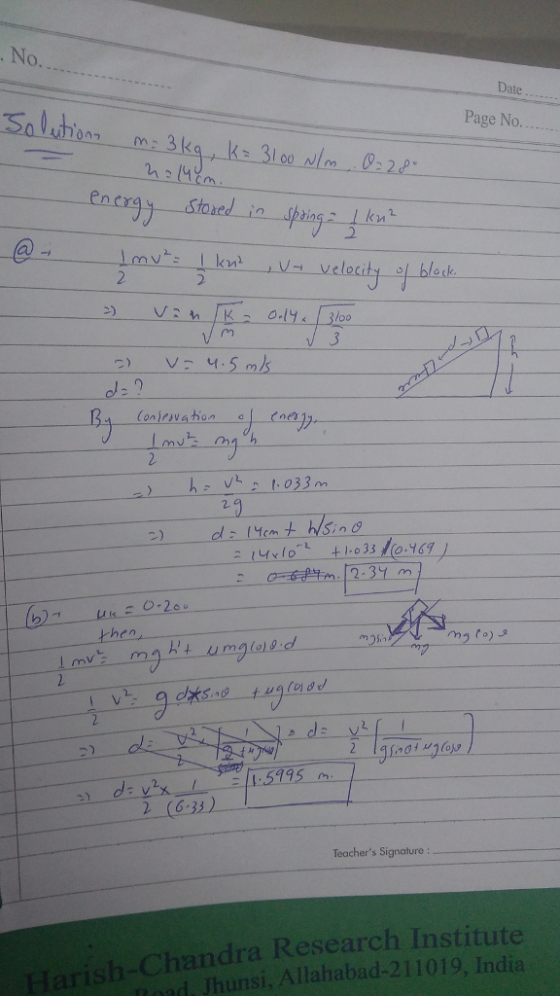

The solution is given in the attached image.

All the final answers are boxed. Energy conservation and work energy theorem is applied.

0 0
Add a comment
Know the answer?
Add Answer to:
A block of mass 3.00 kg is pressed against a spring (k=3,100N/m) near the bottom of a board inclined at θ = 28.0°
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • 6. A 5-kg block is pressed against a spring near the bottom of a 30° inclined...

    6. A 5-kg block is pressed against a spring near the bottom of a 30° inclined plane. The spring, (spring constant 450 N/m) is compressed by 0.50 m.When released, the spring projects the block toward the top of the incline. The coefficient of kinetic friction between the block and the inclined plane is 0.3. (a) What is the speed of the block at the instant the block first returns to its equilibrium length? ans [3.9 m/s] (b) Calculate the speed...

  • A wooden block with mass 1.95 kg is placed against a compressed spring at the bottom...

    A wooden block with mass 1.95 kg is placed against a compressed spring at the bottom of a slope inclined at an angle of 35.0degree (point A). When the spring is released, it projects the block up the incline. At point B, a distance of 4.00 m up the incline from A, the block is moving up the incline at a speed of 6.15 m/s and is no longer in contact with the spring. The coefficient of kinetic between the...

  • A wooden block with mass 1.50 kg is placed against a compressed spring at the bottom...

    A wooden block with mass 1.50 kg is placed against a compressed spring at the bottom of a slope inclined at an angle of 29.0 ∘ (point A). When the spring is released, it projects the block up the incline. At point B, a distance of 7.15 m up the incline from A, the block is moving up the incline at a speed of 7.50 m/s and is no longer in contact with the spring. The coefficient of kinetic friction...

  • A 195 g block is pressed against a spring of force constant 1.60 kN/m until the block compresses the spring 10.0 cm.

    A 195 g block is pressed against a spring of force constant 1.60 kN/m until the block compresses the spring 10.0 cm. The spring rests at the bottom of a ramp inclined at 60.0° to the horizontal. Using energy considerations, determine how far up the incline in m) the block moves from its initial position before it stops under the following conditions. (a) if the ramp exerts no friction force on the block (b) if the coefficient of kinetic friction is 0.360...

  • A 195 g block is pressed against a spring of force constant 1.50 kN/m until the...

    A 195 g block is pressed against a spring of force constant 1.50 kN/m until the block compresses the spring 10.0 cm. The spring rests at the bottom of a ramp inclined at 60.0° to the horizontal. Using energy considerations, determine how far up the incline (in m) the block moves from its initial position before it stops under the following conditions. (a) if the ramp exerts no friction force on the block m (b) if the coefficient of kinetic...

  • A block of mass m is placed in a smooth-bored spring gun at the bottom of an inclined plane

    A block of mass m is placed in a smooth-bored spring gun at the bottom of an inclined plane, such that it compresses the spring by an amount xc, as shown in the figure below. The spring has a spring constant k. The incline makes an angle θ with the horizontal and the coefficient of friction between the block and the inclined plane is μ. The block is released, exits the muzzle of the gun, and slides up the incline...

  • A block of mass m is pushed against an ideal spring of constant of k, compressing...

    A block of mass m is pushed against an ideal spring of constant of k, compressing it over a distance x with respect to its natural length. When the block is released, it moves up a rough ramp of inclination θ and coefficient of friction μk.What is the maximum distance (d) that the block travels up the incline? You MUST use conservation of energy to solve this problem. Epress your answers in term of m, g, k, μk and θ.

  • A 12 kg block is pressed against a spring with spring constant k = 1424 N/m....

    A 12 kg block is pressed against a spring with spring constant k = 1424 N/m. The spring is normally 65 cm long but the block is pressed against it to compress the spring until it is only 27 cm long. The block is then released and the spring pushes it forward onto a frictionless surface. a)How fast is the block moving immediately after it leaves the spring? b) The mass then slides across a 2.5 m wide surface with...

  • 7, A block of mass 4.00 kg is released from rest near the top of an...

    7, A block of mass 4.00 kg is released from rest near the top of an inclined plane, where θ 30.00. It slides with friction down the incline and then contacts and compresses an ideal spring that is rigidly mounted parallel to the incline near the bottom. The spring has a force constant of 500.0 N/m and it compresses a maximum distance x. If d = 200 meters and 0.300 meter, what is the coefficient of friction between the block...

  • You push a 2.5 kg block against a spring, compressing the spring by 35 cm. Then...

    You push a 2.5 kg block against a spring, compressing the spring by 35 cm. Then you release the block, and the spring sends it sliding up the inclined plane. The spring constant is. k = 197 N/m and the coefficient of kinetic friction is, mu_k = 0.31, theta = 38 degree. How far along the incline does the block slide from the compressed position when it is released?
