Homework Answers

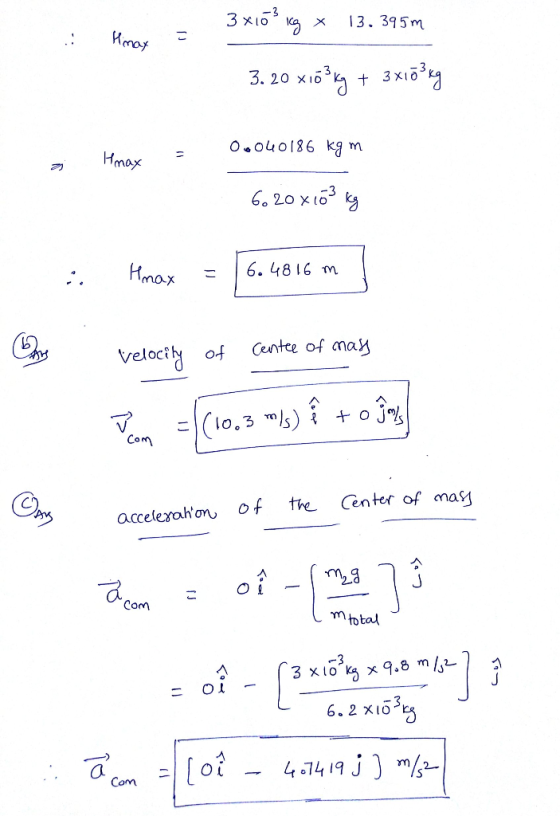

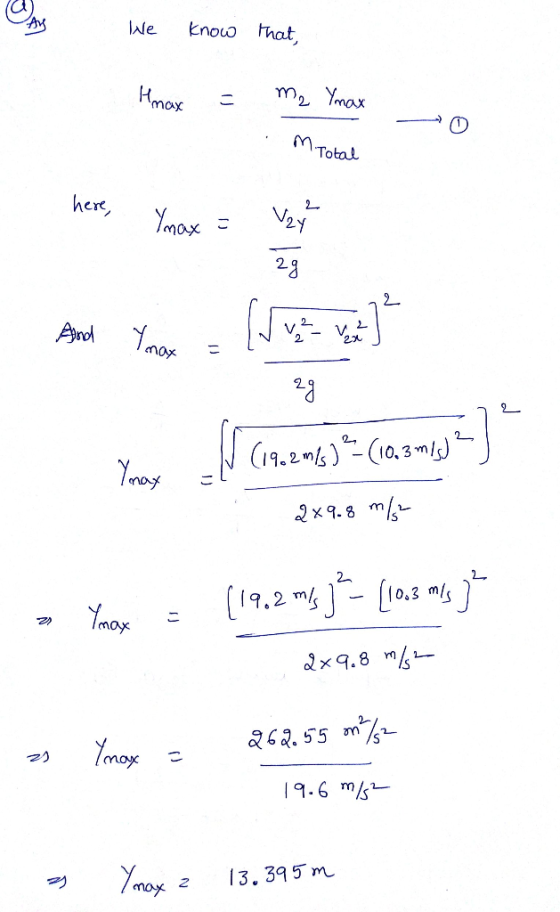

The answer for above problem is explained below.
![3 x103 kg x 13. 395m Himay 3. 20 x103 ky + 3x103kg 0040186 kg m Hmax 6. 20x163 kg : Hmax = [6 4816 m] Ar velocity of centre o](http://img.homeworklib.com/questions/d9f55ce0-6e46-11ea-ba38-bdff345d7869.png?x-oss-process=image/resize,w_560)
Add Answer to:
In the figure, two particles are launched from the origin of the coordinate system at time...
In the figure, two particles are launched from the origin of the coordinate system at time...
In the figure, two particles are launched from the origin of the
coordinate system at time t = 0. Particle 1 of mass
m1 = 5.80 g is shot directly along the
x axis (on a frictionless floor), where it moves with a
constant speed of 10.7 m/s. Particle 2 of mass
m2 = 1.80 g is shot with a velocity of
magnitude 25.0 m/s, at an upward angle such that it always stays
directly above particle 1 during its...
Question 1 In the figure, two particles are launched from the origin of the coordinate system...
Question 1 In the figure, two particles are launched from the origin of the coordinate system at time t = 0. Particle 1 of mass my - 5.20 g is shot directly along the x axis (on a frictionless floor), where it moves with a constant speed of 10.4 m/s. Particle 2 of mass m2 - 3.80 g is shot with a velocity of magnitude 17.0 m/s, at an upward angle such that it always stays directly above particle 1...
Three particles are located in a coordinate system as shown in the figure below. The acceleration...
Three particles are located in a coordinate system as shown in
the figure below. The acceleration of gravity is 9.8 m/s 2 . The
mass 8 kg is located at the origin, the mass 8 kg is located on the
x coordinate, and the mass 7 kg is located on the y coordinate.Find
the distance of the center of gravity from the origin. Answer in
units of m.
7 kg 8 kg 8 k g 12 m
help please Two dimensions. In the figure, three point particles are fixed in place in an...
help please
Two dimensions. In the figure, three point particles are fixed in place in an xy plane. Particle A has mass MA-7 g. particle Bhas mass 2.00mA, and particle Chas mass 3.00mA. A fourth particle D, with mass 4.00mA. is to be placed near the other three particles. What (a) x coordinate and (b) y coordinate should particle D be placed so that the net gravitational force on particle Afrom particles B, C, and Dis zero id - 19...
The drawing shows three particles that are moving with different velocities. Two of the particles have...
The drawing shows three particles that are moving with different velocities. Two of the particles have mass m, and the third has a mass 2m. The third particle has a velocity of V3 = +5.0 m/s. At the instant shown, the center of mass (cm) of the three particles is at the coordinate origin. What is the velocity Vem (magnitude and direction) of the center of mass? +4.0 m's -8.0 m/s cm vam = ? V3 Velocity of center of...
Three point particles are fixed in position in an xy plane. Two of them, particle A...
Three point particles are fixed in position in an xy plane. Two of them, particle A of mass 5 g and particle B of mass 11 g, are shown in the figure with a separation of dAB = 0.461 m at angle θ = 30% Particle C, with mass 7 g, is not shown. The net gravitational force acting on particle A due to particles B and C is 2.74 x 1014 N at an angle of -163.8°. from the...
One dimension. In the figure, two point particles are fixed on an x axis separated by...
One dimension. In the figure, two point particles are fixed on an x axis separated by distance d. Particle A has mass mA and particle B has mass 3.00 mA. A third particle C, of mass 75.0 mA, is to be placed on the x axis and near particles A and B. In terms of distance d, at what x coordinate should C be placed so that the net gravitational force on particle A from particles B and C is...
The figure shows a three-particle system, with masses m1 = 1.1 kg, m2 = 4.1 kg, and m3 = 7.1 kg. What are (a) the x coo...
The figure shows a three-particle system, with masses m1 = 1.1 kg, m2 = 4.1 kg, and m3 = 7.1 kg. What are (a) the x coordinate and (b) the y coordinate of the system's center of mass? y (in) 023 - x (m) (a) Number (b) Number Units Units
Two particles are located on the z axis of a Cartesian coordinate system. Particle 1 carries...
Two particles are located on the z axis of a Cartesian coordinate system. Particle 1 carries a charge of +4.0 nC and is at z =-40 mm and particle 2 carries a charge of-4.0 nC and is at z 40 m m Particle 3, which carries a charge of +7.0 μC is located on the positive y axis 80 mm from the origin. Part A What is the magnitude of the vector sum of the electric forces exerted on particle...
A system consists of two particles of mass mi and m2 interacting with an interaction potential...
A system consists of two particles of mass mi and m2 interacting with an interaction potential V(r) that depends only on the relative distancer- Iri-r2l between the particles, where r- (ri,/i,21) and r2 22,ひ2,22 are the coordinates of the two particles in three dimensions (3D) (a) /3 pointsl Show that for such an interaction potential, the Hamiltonian of the system H- am▽ri _ 2m2 ▽22 + V(r) can be, put in the form 2M where ▽ and ▽ are the...
In the figure, two particles are launched from the origin of the
coordinate system at time t = 0. Particle 1 of mass
m1 = 5.80 g is shot directly along the
x axis (on a frictionless floor), where it moves with a
constant speed of 10.7 m/s. Particle 2 of mass
m2 = 1.80 g is shot with a velocity of
magnitude 25.0 m/s, at an upward angle such that it always stays
directly above particle 1 during its...
Question 1 In the figure, two particles are launched from the origin of the coordinate system at time t = 0. Particle 1 of mass my - 5.20 g is shot directly along the x axis (on a frictionless floor), where it moves with a constant speed of 10.4 m/s. Particle 2 of mass m2 - 3.80 g is shot with a velocity of magnitude 17.0 m/s, at an upward angle such that it always stays directly above particle 1...
Three particles are located in a coordinate system as shown in
the figure below. The acceleration of gravity is 9.8 m/s 2 . The
mass 8 kg is located at the origin, the mass 8 kg is located on the
x coordinate, and the mass 7 kg is located on the y coordinate.Find
the distance of the center of gravity from the origin. Answer in
units of m.
7 kg 8 kg 8 k g 12 m
help please
Two dimensions. In the figure, three point particles are fixed in place in an xy plane. Particle A has mass MA-7 g. particle Bhas mass 2.00mA, and particle Chas mass 3.00mA. A fourth particle D, with mass 4.00mA. is to be placed near the other three particles. What (a) x coordinate and (b) y coordinate should particle D be placed so that the net gravitational force on particle Afrom particles B, C, and Dis zero id - 19...
The drawing shows three particles that are moving with different velocities. Two of the particles have mass m, and the third has a mass 2m. The third particle has a velocity of V3 = +5.0 m/s. At the instant shown, the center of mass (cm) of the three particles is at the coordinate origin. What is the velocity Vem (magnitude and direction) of the center of mass? +4.0 m's -8.0 m/s cm vam = ? V3 Velocity of center of...
Three point particles are fixed in position in an xy plane. Two of them, particle A of mass 5 g and particle B of mass 11 g, are shown in the figure with a separation of dAB = 0.461 m at angle θ = 30% Particle C, with mass 7 g, is not shown. The net gravitational force acting on particle A due to particles B and C is 2.74 x 1014 N at an angle of -163.8°. from the...
The figure shows a three-particle system, with masses m1 = 1.1 kg, m2 = 4.1 kg, and m3 = 7.1 kg. What are (a) the x coordinate and (b) the y coordinate of the system's center of mass? y (in) 023 - x (m) (a) Number (b) Number Units Units
Two particles are located on the z axis of a Cartesian coordinate system. Particle 1 carries a charge of +4.0 nC and is at z =-40 mm and particle 2 carries a charge of-4.0 nC and is at z 40 m m Particle 3, which carries a charge of +7.0 μC is located on the positive y axis 80 mm from the origin. Part A What is the magnitude of the vector sum of the electric forces exerted on particle...
A system consists of two particles of mass mi and m2 interacting with an interaction potential V(r) that depends only on the relative distancer- Iri-r2l between the particles, where r- (ri,/i,21) and r2 22,ひ2,22 are the coordinates of the two particles in three dimensions (3D) (a) /3 pointsl Show that for such an interaction potential, the Hamiltonian of the system H- am▽ri _ 2m2 ▽22 + V(r) can be, put in the form 2M where ▽ and ▽ are the...
