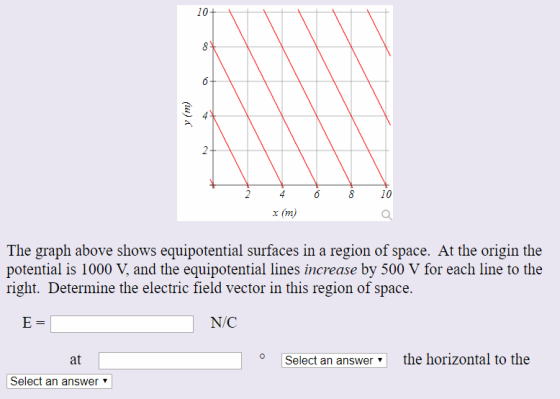

10+ 2 4 8 10 x (m) The graph above shows equipotential surfaces in a region...
(Figure 1) shows a region of space with an electric field. Vertical lines indicate equipotential surfaces....
(Figure 1) shows a region of space with an electric field.
Vertical lines indicate equipotential surfaces. A particle with
charge q = -4.8 nC is initially at the location of the -20-V
equipotential line. At time t = 0 the particle is released from
rest. Ignore the force exerted by Earth on the particle.
Part A: Estimate the magnitude of force exerted by the electric
field on the particle when it passes the 0-V equipotential
line.
Part B: Estimate the...
The drawing shows a cross-sectional view of two spherical equipotential surfaces and two electric field lines...
The drawing shows a cross-sectional view of two spherical
equipotential surfaces and two electric field lines that are
perpendicular to these surfaces. When an electron moves from point
A to point B (against the electric field), the
electric force does +3.2 x 10-19 J of work. What are the
electric potential differences (a) VB -
VA, (b) VC -
VB, and (c) VC -
VA?
Electric field lines Equipotential surfaces Cross-sectional view) O (a) o V, (b) 0 V, (c)...
Question 8 The drawing shows a cross-sectional view of two spherical equipotential surfaces and two electric...
Question 8 The drawing shows a cross-sectional view of two spherical equipotential surfaces and two electric field lines that are perpendicular to these surfaces. When an electron moves from point A to point B (against the electric field), the electric force does +3.2 x 10-19 J of work. What are the electric potential differences (a) VB- VA, (b) VC - VB, and (c) VC - VA?
04 m 5. The sketch below shows cross sections of equipotential surfaces between two charged conductors...
04 m 5. The sketch below shows cross sections of equipotential surfaces between two charged conductors that are shown in solid grey. Various points on the equipotential surfaces near the conductors are labeled A, B, CI. 70 V -60 V At which of the labeled points will the electric field have the greatest magnitude? A) G -30V -20V B) I C) A D) H E) D At which of the labeled points will an electron have the greatest potential energy?...
If a small particle with electric charge q = - 3.5 times 10^-4 Coulombs is placed...
If a small particle with electric charge q = - 3.5 times 10^-4 Coulombs is placed at the point with coordinates (-4.0m, 2.1m, 2 2m) where the x, y and z components of the electric field vector are E_x = -10.5 Newtons/Coulomb. E_y = 10 5 Newtons/Coulomb, E_z = - 8 0 Newtons/Coulomb. what is the force acting on the particle? How is the electric potential energy of a charged particle with charge q at a given point related to...
The drawing shows a cross-sectional view of two spherical equipotential surfaces and two electric field lines...
The drawing shows a cross-sectional view of two spherical equipotential surfaces and two electric field lines that are perpendicular to these surfaces. When a proton with charge e moves from point B to point A the electric force does a positive work W (measured in joule). What is the electric potential differential V_B - V_A? W e W/e 0 Equal to V_C - V_B -W/e For the same problem above, what is the electric potential difference V_C - V_B? W...
1· The sketch shows cross sections of equipotential surfaces between two charged conductors that are shown...
1· The sketch shows cross sections of equipotential surfaces between two charged conductors that are shown in solid black 20V 40 V (a) What is the potential difference between points B and E? (b) At which of the labeled points will the electric field have the greatest magnitude? (c) what is the electric field at point A (magnitude and direction)? 2. The sketch on the back of this page shows cross sections of two conducting spherical sbells. (a -5.0 cm,...
Two parallel plates Equipotential Lines represent for us on a graph the same thing Elevation Line...
Two parallel plates
Equipotential Lines represent for us on a graph the same thing
Elevation Lines do for us on a map: They represent a line where the
Electric or Gravitational potential is a constant. Maps and voltage
graphs have even spacing between values (1V or 500ft or 100m etc)so
they can be read easier. These potentials were at 3V, 6V, 9V, 12V,
and 15V. In the figure are 5 lines of electric potential drawn from
positive charge at left...
diagram above each unit on the horizontal axis is 3.00 cm and each unit on the...
diagram above each unit on the horizontal axis is 3.00 cm and
each unit on the vertical axis is 3.00 cm. The equipotential lines
in a region A) Determine the magnitude of the electric field in
this region. V/m B)Determine the shortest distance for which the
change in potential is 3 V.
The figure below shows equipotentials from an unknown charge distribution. The innermost equipotential is 50 V,...
The figure below shows equipotentials from an unknown charge distribution. The innermost equipotential is 50 V, the next one is 40 V and each succeeding equipotential is 10 V lower in potential. The grid lines are spaced 20 cm apart. Find the electric field components at the indicated points within about 20% a. At point A: E b.At point B:E c.At point C:E N/Ci+ INC i + N/C i + N/C j N/C j N/C j
(Figure 1) shows a region of space with an electric field.
Vertical lines indicate equipotential surfaces. A particle with
charge q = -4.8 nC is initially at the location of the -20-V
equipotential line. At time t = 0 the particle is released from
rest. Ignore the force exerted by Earth on the particle.
Part A: Estimate the magnitude of force exerted by the electric
field on the particle when it passes the 0-V equipotential
line.
Part B: Estimate the...
The drawing shows a cross-sectional view of two spherical
equipotential surfaces and two electric field lines that are
perpendicular to these surfaces. When an electron moves from point
A to point B (against the electric field), the
electric force does +3.2 x 10-19 J of work. What are the
electric potential differences (a) VB -
VA, (b) VC -
VB, and (c) VC -
VA?
Electric field lines Equipotential surfaces Cross-sectional view) O (a) o V, (b) 0 V, (c)...
04 m 5. The sketch below shows cross sections of equipotential surfaces between two charged conductors that are shown in solid grey. Various points on the equipotential surfaces near the conductors are labeled A, B, CI. 70 V -60 V At which of the labeled points will the electric field have the greatest magnitude? A) G -30V -20V B) I C) A D) H E) D At which of the labeled points will an electron have the greatest potential energy?...
If a small particle with electric charge q = - 3.5 times 10^-4 Coulombs is placed at the point with coordinates (-4.0m, 2.1m, 2 2m) where the x, y and z components of the electric field vector are E_x = -10.5 Newtons/Coulomb. E_y = 10 5 Newtons/Coulomb, E_z = - 8 0 Newtons/Coulomb. what is the force acting on the particle? How is the electric potential energy of a charged particle with charge q at a given point related to...
The drawing shows a cross-sectional view of two spherical equipotential surfaces and two electric field lines that are perpendicular to these surfaces. When a proton with charge e moves from point B to point A the electric force does a positive work W (measured in joule). What is the electric potential differential V_B - V_A? W e W/e 0 Equal to V_C - V_B -W/e For the same problem above, what is the electric potential difference V_C - V_B? W...
1· The sketch shows cross sections of equipotential surfaces between two charged conductors that are shown in solid black 20V 40 V (a) What is the potential difference between points B and E? (b) At which of the labeled points will the electric field have the greatest magnitude? (c) what is the electric field at point A (magnitude and direction)? 2. The sketch on the back of this page shows cross sections of two conducting spherical sbells. (a -5.0 cm,...
Two parallel plates
Equipotential Lines represent for us on a graph the same thing
Elevation Lines do for us on a map: They represent a line where the
Electric or Gravitational potential is a constant. Maps and voltage
graphs have even spacing between values (1V or 500ft or 100m etc)so
they can be read easier. These potentials were at 3V, 6V, 9V, 12V,
and 15V. In the figure are 5 lines of electric potential drawn from
positive charge at left...
diagram above each unit on the horizontal axis is 3.00 cm and
each unit on the vertical axis is 3.00 cm. The equipotential lines
in a region A) Determine the magnitude of the electric field in
this region. V/m B)Determine the shortest distance for which the
change in potential is 3 V.
The figure below shows equipotentials from an unknown charge distribution. The innermost equipotential is 50 V, the next one is 40 V and each succeeding equipotential is 10 V lower in potential. The grid lines are spaced 20 cm apart. Find the electric field components at the indicated points within about 20% a. At point A: E b.At point B:E c.At point C:E N/Ci+ INC i + N/C i + N/C j N/C j N/C j
