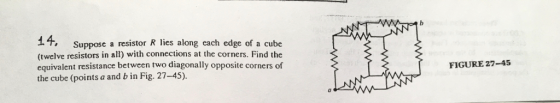

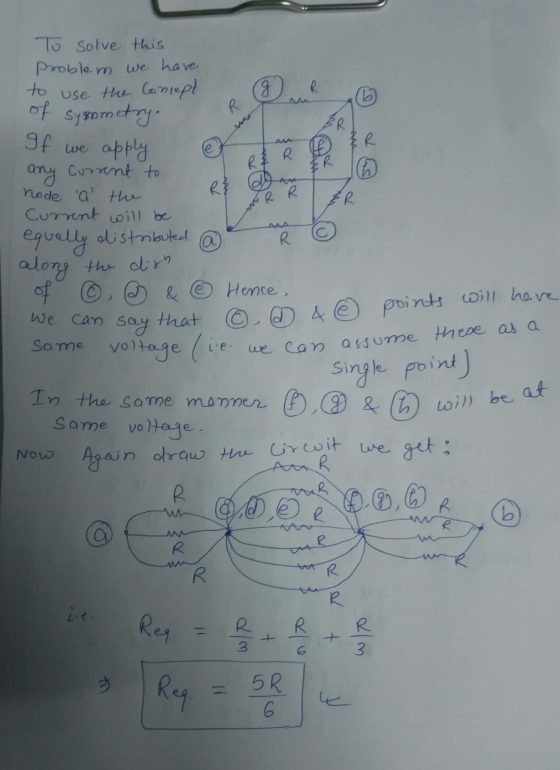

14, Suppose a resistor R lies along each edge of a cube (twelve resistors in all)...
3. The circuit consists of twelve identical 6 Q2 resistors on the edges of a cube....
3. The circuit consists of twelve identical 6 Q2 resistors on the edges of a cube. Determine the equivalent resistance of the cube across diagonally opposite corners. WW-
In the circuit on the bottom, all six resistors share the same value, R. Calculate the...
In the circuit on the bottom, all six resistors share the
same value, R. Calculate the equivalent resistance between points A
and B when switch S is closed as a percentage of the equivalent
resistance when switch S is open.
= _____________ %
If each resistor has a resistance R = 34.3 Ω, calculate
the resistance between points A and B after switch S is
closed.
= ___________ Ω
11. The figure shows a network of resistors, all having the same resistance R. Find the...
11. The figure shows a network of resistors, all having the same resistance R. Find the equivalent resistance, measured between points a and b. A) None of the other choices B) 5R/2 C) R/4 D) 10R/2 E) R a R
If both questions can be answeredthanks!Find the Equivalent Resistance Four resistors are connected as...
Find the Equivalent ResistanceFour resistors are connected as shown in figure (a), below. (Let R=3.00 Ω.)The original network of resistors is reduced to a single equivalent resistance.(a) Find the equivalent resistance between points \(a\) and \(\mathrm{c}\).solutionConceptualize Imagine charges flowing into and through this combination from the left. All charges must pass from a to \(b\) through the first two resistors, but the charges split at \(b\) into Categorize Because of the simple nature of the combination of resistors in the...
28) What different resistances can be obtained by using two 2.0-2 resistors and one 4.0-22 resistor?...
28) What different resistances can be obtained by using two 2.0-2 resistors and one 4.0-22 resistor? You must use all three of them in each possible combination. 31) What is the equivalent resistance between points A and B of the network shown in the figure? T 12 12 3 4. 02 36.00 38.012 35) What is the equivalent resistance in the circuit shown in the figure? R = 101 SP-200 Rz=2022 R2=3 2023 W R4 = 30 12 A) 802...
Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A...
Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A potential difference of 12.0V is maintained between points a and b. Three resistors connected in parallel. The Another circuit with three resistors and a voltage across each resistor is 12.0 V. battery. Is it equivalent to the circuit in (a)? a Ž 3.00 6.00 9.00 3.00 6.00 09.00 (a) Calculate the equivalent resistance of the circuit. SOLUTION Conceptualize Figure (a) shows that we are...
QUESTION 17 We have a set of resistors, they have all the same resistance R=1.00 ....
QUESTION 17 We have a set of resistors, they have all the same resistance R=1.00 . Which of the following two combinations (A) and (B). gives an equivalent resistance Re - 1.50 between points a and b? R R w R R R w R (A) (B) Only (B) None of them. Both (A) and (B). Only (A).
Question 3. (10 points) Four resistors are connected as shown in Figure 28.9a Find the equivalent resistance between a and c. R1-16 and R4-12 Ω R2-13 R3-4 (a) (b) What is the current in each resistor...
Question 3. (10 points) Four resistors are connected as shown in Figure 28.9a Find the equivalent resistance between a and c. R1-16 and R4-12 Ω R2-13 R3-4 (a) (b) What is the current in each resistor if a potential difference of 0.64 V is maintained between a and c. Calculate the current in each resistor I (for Ri resistor)- I (for R2 resistor)- I (for R3 resistor) I (for R4 resistor)- Which resistor uses more power, R or R4? Which...
Learning Goal: To learn to calculate the equivalent resistance of the circuits combining series and parallel...
Learning Goal:
To learn to calculate the equivalent resistance of the circuits
combining series and parallel connections.
Resistors are often connected to each other in electric
circuits. Finding the equivalent resistanceof
combinations of resistors is a common and important task.
Equivalent resistance is defined as the single resistance that can
replace the given combination of resistors in such a manner that
the currents in the rest of the circuit do not change.
Finding the equivalent resistance is relatively straighforward if...
Vladimirkezerashvili, Ph.D. Student's name ase show all your work. Answers without adequate work will receive no...
Vladimirkezerashvili, Ph.D. Student's name ase show all your work. Answers without adequate work will receive no credits Carry out all the units throughout the lations. Show the numeric answers with the appropriate number of significant figures and units. Box the final answers. 15 points). A wire, in a plane, has the shape shown in figure. The radii of the semicircular segments are 20.0 cm and 30.0 cm. Current I 60.0 A. Find (a) (10 points) magnitude and (a) (5 points)...
3. The circuit consists of twelve identical 6 Q2 resistors on the edges of a cube. Determine the equivalent resistance of the cube across diagonally opposite corners. WW-
In the circuit on the bottom, all six resistors share the
same value, R. Calculate the equivalent resistance between points A
and B when switch S is closed as a percentage of the equivalent
resistance when switch S is open.
= _____________ %
If each resistor has a resistance R = 34.3 Ω, calculate
the resistance between points A and B after switch S is
closed.
= ___________ Ω
11. The figure shows a network of resistors, all having the same resistance R. Find the equivalent resistance, measured between points a and b. A) None of the other choices B) 5R/2 C) R/4 D) 10R/2 E) R a R
28) What different resistances can be obtained by using two 2.0-2 resistors and one 4.0-22 resistor? You must use all three of them in each possible combination. 31) What is the equivalent resistance between points A and B of the network shown in the figure? T 12 12 3 4. 02 36.00 38.012 35) What is the equivalent resistance in the circuit shown in the figure? R = 101 SP-200 Rz=2022 R2=3 2023 W R4 = 30 12 A) 802...
Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A potential difference of 12.0V is maintained between points a and b. Three resistors connected in parallel. The Another circuit with three resistors and a voltage across each resistor is 12.0 V. battery. Is it equivalent to the circuit in (a)? a Ž 3.00 6.00 9.00 3.00 6.00 09.00 (a) Calculate the equivalent resistance of the circuit. SOLUTION Conceptualize Figure (a) shows that we are...
QUESTION 17 We have a set of resistors, they have all the same resistance R=1.00 . Which of the following two combinations (A) and (B). gives an equivalent resistance Re - 1.50 between points a and b? R R w R R R w R (A) (B) Only (B) None of them. Both (A) and (B). Only (A).
Question 3. (10 points) Four resistors are connected as shown in Figure 28.9a Find the equivalent resistance between a and c. R1-16 and R4-12 Ω R2-13 R3-4 (a) (b) What is the current in each resistor if a potential difference of 0.64 V is maintained between a and c. Calculate the current in each resistor I (for Ri resistor)- I (for R2 resistor)- I (for R3 resistor) I (for R4 resistor)- Which resistor uses more power, R or R4? Which...
Learning Goal:
To learn to calculate the equivalent resistance of the circuits
combining series and parallel connections.
Resistors are often connected to each other in electric
circuits. Finding the equivalent resistanceof
combinations of resistors is a common and important task.
Equivalent resistance is defined as the single resistance that can
replace the given combination of resistors in such a manner that
the currents in the rest of the circuit do not change.
Finding the equivalent resistance is relatively straighforward if...
Vladimirkezerashvili, Ph.D. Student's name ase show all your work. Answers without adequate work will receive no credits Carry out all the units throughout the lations. Show the numeric answers with the appropriate number of significant figures and units. Box the final answers. 15 points). A wire, in a plane, has the shape shown in figure. The radii of the semicircular segments are 20.0 cm and 30.0 cm. Current I 60.0 A. Find (a) (10 points) magnitude and (a) (5 points)...
