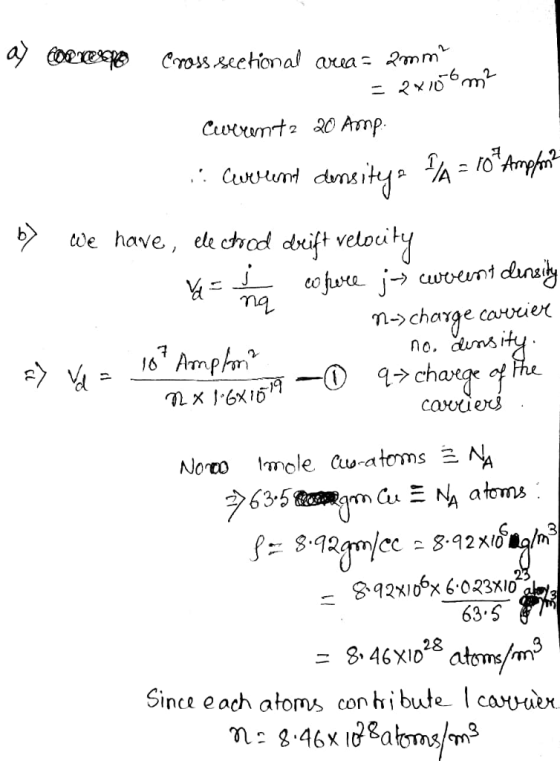

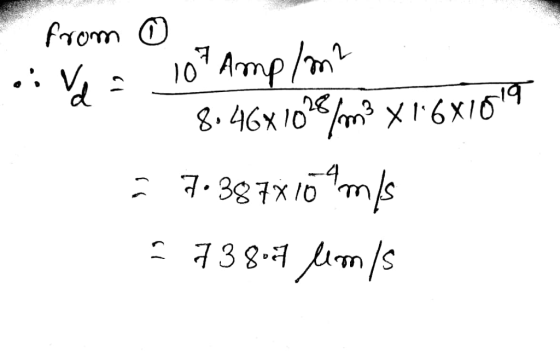

The maximum rated current for a copper wire of cross-sectional area 2 mm^2 is 20A. (a) What is the corresponding current density in A/m^2? (b) On the assumption that each copper atom contributes one conduction electron, calculate the electronic drift velocity corresponding to this current density. (Avogadro's number = 6.02E10^23 atoms per mole; atomic weight of copper = 63.5; density of copper = 8.92 g/cm^3.) (c) Use the observed conductivity to calculate the average collision time for an electron in copper.
Please make sure to write legibly so I can read it.
Homework Answers
Add Answer to:
The maximum rated current for a copper wire of cross-sectional
area 2 mm^2 is 20A. (a)...
the 12 gauge copper wire in a typical residential building has a cross-sectional area of 3.31e-6...
the 12 gauge copper wire in a typical residential building has a cross-sectional area of 3.31e-6 m^2. it carries a constant current of 10 A. What is the drift speed of the electrons in the wire? Assume each copper atom contributes one free electron to the current. The density of copper is 8.92 g/cm^3
An iron wire has a cross-sectional area of 6.90 ✕ 10−6 m2. Carry out steps (a)...
An iron wire has a cross-sectional area of 6.90 ✕ 10−6 m2. Carry out steps (a) through (e) to compute the drift speed of the conduction electrons in the wire. (a) How many kilograms are there in 1 mole of iron? kg/mol (b) Starting with the density of iron and the result of part (a), compute the molar density of iron (the number of moles of iron per cubic meter). mol/m3 (c) Calculate the number density of iron atoms using...
An iron wire has a cross-sectional area of 7.50 ✕ 10−6 m2. Carry out steps (a)...
An iron wire has a cross-sectional area of 7.50 ✕ 10−6 m2. Carry out steps (a) through (e) to compute the drift speed of the conduction electrons in the wire. (a) How many kilograms are there in 1 mole of iron? kg/mol (b) Starting with the density of iron and the result of part (a), compute the molar density of iron (the number of moles of iron per cubic meter). mol/m3 (c) Calculate the number density of iron atoms using...
Consider a copper wire with circular cross section with radius 0.5 mm, where the conduction electrons...
Consider a copper wire with circular cross section with radius 0.5 mm, where the conduction electrons in the wire have drift velocity 1 mm/s. Copper has a density of 8960 kg/m3, and copper atoms have a mass of 63.5 amu (where 1 amu = 1.67 x 10−27 kg). (a) How many copper atoms are in one cubic meter of copper wire? (b) Assume each copper atom provides one conduction electron (that is, for each copper atom, one electron is able...
2. A copper wire carrying a current of 5.00 A has a cross-sectional area of 5.00...
2. A copper wire carrying a current of 5.00 A has a cross-sectional area of 5.00 x 106 m2. Find the drift speed of the electrons in the wire. The density of copper is 8.96 g/cm3. (Assume that each copper atom supplies one free electron.)
An iron wire has a cross-sectional area of 5.80 ✕ 10−6 m2. Carry out steps (a) through (e) to compute the drift speed of...
An iron wire has a cross-sectional area of 5.80 ✕ 10−6 m2. Carry out steps (a) through (e) to compute the drift speed of the conduction electrons in the wire. (a) How many kilograms are there in 1 mole of iron? kg/mol (b) Starting with the density of iron and the result of part (a), compute the molar density of iron (the number of moles of iron per cubic meter). mol/m3 (c) Calculate the number density of iron atoms using...
A 0.68-mm-diameter copper wire carries a tiny current of 2.4 μA . The molar mass of...
A 0.68-mm-diameter copper wire carries a tiny current of 2.4 μA . The molar mass of copper is 63.5 g/mole and its density is 8900 kg/m3. NA=6.02×1023. Estimate the electron drift velocity. Assume one free electron per atom.
An aluminum wire having a cross-sectional area of 2.50 ✕ 10−6 m2 carries a current of...
An aluminum wire having a cross-sectional area of 2.50 ✕ 10−6 m2 carries a current of 3.00 A. The density of aluminum is 2.70 g/cm3. Assume each aluminum atom supplies one conduction electron per atom. Find the drift speed of the electrons in the wire.
An aluminum wire having a cross-sectional area of 4.70 ✕ 10−6 m2 carries a current of...
An aluminum wire having a cross-sectional area of 4.70 ✕ 10−6 m2 carries a current of 4.50 A. The density of aluminum is 2.70 g/cm3. Assume each aluminum atom supplies one conduction electron per atom. Find the drift speed of the electrons in the wire. mm/s
An aluminum wire having a cross-sectional area of 6.00 ✕ 10-6 m2 carries a current of...
An aluminum wire having a cross-sectional area of 6.00 ✕ 10-6 m2 carries a current of 8.00 A. Find the drift speed of the electrons in the wire. The density of aluminum is 2.70 g/cm3. Assume each aluminum atom supplies one conduction electron. mm/s
2. A copper wire carrying a current of 5.00 A has a cross-sectional area of 5.00 x 106 m2. Find the drift speed of the electrons in the wire. The density of copper is 8.96 g/cm3. (Assume that each copper atom supplies one free electron.)
