= 425 Je slit of width 0.320 mm way. Determine the distance fringe. (Draw the diagram...

Question

Question

= 425 Je slit of width 0.320 mm way. Determine the distance fringe. (Draw the diagram of Problem 4) (5pts) Light of wavelengt

science physics

Answer 1

Answer #1

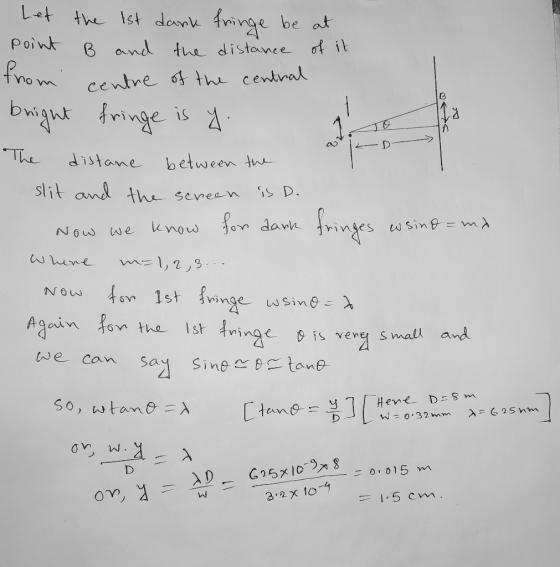

la To L-D Let the 1st dark fringe be at point B and the distance of it from centre of the central bnight fringe is y The dist

Answer 2
