[4] R1 = 600 kQ, and R2 = 200 kΩ are connected in series with each...

Question

Question

science physics

Answer 1

Answer #1

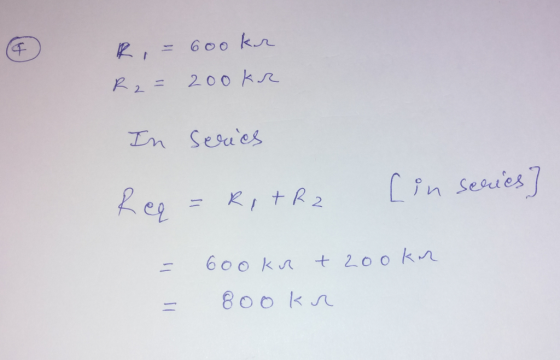

千 Kt = 600 kn. In Sesu in Sedies = 800 kn

Answer 2

Similar Homework Help Questions

[2] RI of this combination will be: i-5.0 kQ, and R2-4.0 kΩ are connected in parallel...

[2] RI of this combination will be: i-5.0 kQ, and R2-4.0 kΩ are connected in parallel with each other. The equivalent resistance (1) Greater than 5.0 kQ. (2) Less than 4.0 kS2. (3) Between 5.0 kΩ and 4.0 kQ. (4) Other
How much is REQ in Fig. 5-26 if R1-1 kQ, R2 4 kΩ, R3 = 200...

How much is REQ in Fig. 5-26 if R1-1 kQ, R2 4 kΩ, R3 = 200 Ω, and R4 240 Ω? Figure 5-26 REO
Resistors R1 = 1.2 kΩ and R2 = 6.8 kΩ are connected in series with a...

Resistors R1 = 1.2 kΩ and R2 = 6.8 kΩ are connected in series with a 1.5 V cell in a single circuit loop. Find (a) the current through R1, (b) the voltage across R1, (c) the wattage of the resistor that dissipates the most energy. Answers: (a. 0.19 mA, b. 0.23 V, c. 0.24 mW (R2))

Two resistors, R1 and R2, are connected in series. a) calculate the single resistance equivalent (in...

Two resistors, R1 and R2, are connected in series. a) calculate the single resistance equivalent (in Ω) to the series combination. b) Repeat the calculation for a parallel combination of R1 and R2. (Enter your answer in Ω.)
Two resistors, R1 = 10-ohm and R2 = 20-ohm, are connected in series to each other,...

Two resistors, R1 = 10-ohm and R2 = 20-ohm, are connected in series to each other, and this series combination is connected across a 30-V source of emf. The current through the resistor R2 is:
A 1.40 kΩ resistor is connected in series with a 0.800 kΩ resistor. This pair of...

A 1.40 kΩ resistor is connected in series with a 0.800 kΩ resistor. This pair of resistors is connected in parallel with a 7.00 kΩ resistor. That combination is then connected in series with a 0.700 kΩ resistor and a 9.0-V ideal battery (no internal resistance of course). A) sketch this circuit B) Determine the total equivalent resistance of this circuit's arrangement C) Determine the amount of current that flows through the battery D) Determine the voltage drop across the...

Three resistors, R1 = 3.00 ohm, R2 = 4.00 ohm, R3 = 5.00 ohm, are connected...

Three resistors, R1 = 3.00 ohm, R2 = 4.00 ohm, R3 = 5.00 ohm, are connected in series. With what single equivalent resistance Req could the series combination be replaced? If the series combination is connected to a 12.0 V battery, what is the voltage across each resistor?
e circuit below includes 3 resistors in parallel, R1 = 1 kQ, R2 = 2 kQ,...

e circuit below includes 3 resistors in parallel, R1 = 1 kQ, R2 = 2 kQ, and R,-4kD ta) Dmine the equivalent resistance (Req), (b) use Ohm's Law to determine the circuit current, a use Ohm's law to determine the current through each resistor R1 R2 R3
Two identical resistors, R1 and R2, are connected in parallel, and this parallel combination is then...

Two identical resistors, R1 and R2, are connected in parallel, and this parallel combination is then connected in series with a 100 Ω resistor, R3 as shown below If the total resistance of the circuit is 300 Ω what must be the resistance of R1 and R2? If the circuit is connected to a 30V battery, what would the current through R1? What voltage is a dropped across R3? 100 S

Task 1 The equivalent resistance Req of four resistors R1, R2, R3 and R4 connected in series is g...

Use MATLAB to solve these problems, thank u Task 1 The equivalent resistance Req of four resistors R1, R2, R3 and R4 connected in series is given as eq.series R1 R2 R3 R4. The equivalent resistance Req of four resistors R1, R2, R3 and R4 connected in parallel is given as q.parallel K1R2R3 R Write an m-file that does the following in order: Prompt the user for the type of connection (e.g. user should enter "1" for series and "2"...
