How much is REQ in Fig. 5-26 if R1-1 kQ, R2 4 kΩ, R3 = 200...

Question

Question

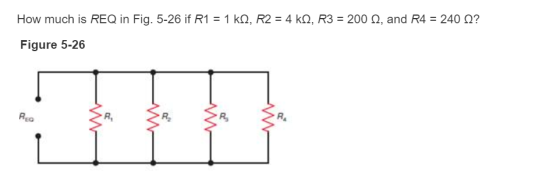

How much is REQ in Fig. 5-26 if R1-1 kQ, R2 4 kΩ, R3 = 200 Ω, and R4 240 Ω? Figure 5-26 REO

science physics

Answer 1

Answer #1

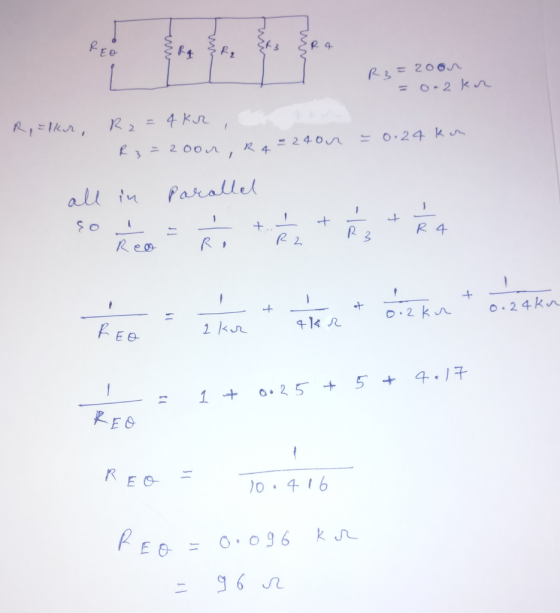

E e =0-2 kn 4 R 4 E O 0.416 96

Answer 2

Similar Homework Help Questions

5. Consider the next circuit with R1 1 kQ, R2 2.2 kQ, R3 3.3 kQ, R4 4.7 kQ and E 10V Using the Oh...

5. Consider the next circuit with R1 1 kQ, R2 2.2 kQ, R3 3.3 kQ, R4 4.7 kQ and E 10V Using the Ohm's law, determine the currents through each of the four resistors and record the values in the next table under the Theory column. Note that the larger the resistor, the smaller the current should be. Also determine and record the total supplied current and the current IX Note that this current should equal the sum of the...
[4] R1 = 600 kQ, and R2 = 200 kΩ are connected in series with each...

[4] R1 = 600 kQ, and R2 = 200 kΩ are connected in series with each other. Compute the equivalent resistance of this combination 4.
For the circuit shown below: In terms of Vo, R1, R2, R3, R4, C1, t, and s what is the time domain...

For the circuit shown below: In terms of Vo, R1, R2, R3, R4, C1, t, and s what is the time domain equation for the voltage at node out? Preview In terms of Vo, R1, R2, ,R3, R4, C1, t, and s what is the s-domain equation for voltage at node out? In terms of Vo, RI, R2, R3, R4, CI, t, and s what is the equation for τ? If the voltage V1 at time-0 is 1 V R1-1...

In the circuit below. R1 = 58 Ω R2 = 200 Ω R3 = 220 Ω...

In the circuit below. R1 = 58 Ω R2 = 200 Ω R3 = 220 Ω R4 = 22 Ω. An ohmmeter is an instrument that gives a value for the resistance seen between two terminals. What is the correct reading if the instrument is attached to the network in the figure given at points: (a) AD (b) BD (c) CD? R2 R1 50Ω 100 Ω 75 Ω R4 R3 D 25 Ω 200 Ω 2013 Paul Hummel (a) RAD...
1)What is the output voltage V0 if op-amp is ideal? R1= 2 KΩ, R2=8 KΩ, R3=3.2...

1)What is the output voltage V0 if op-amp is ideal? R1= 2 KΩ, R2=8 KΩ, R3=3.2 KΩ, R4=6 KΩ, R5=19 KΩ, R6=4.6 KΩ, RL=9.6 KΩ, V1=1V, I2=0.5 mA and V3=2.5 V. 2) for the same circuit, R1= 2 KΩ R2=8 KΩ, R3=3.6 KΩ, R4=6 KΩ, R5=16.9 KΩ, R6=15 KΩ, RL=10 KΩ, V1=1V, I2=0.5mA and V3=2V. What is the input impedance as seen by source V3? + | R1 ہی ہے۔ ۸۸۸ ة -(1+ R5 | + ابرها -
In the circuit shown in (Figure 1), R1=3 Ω , R2=5 Ω , R3=4 Ω ,...

In the circuit shown in (Figure 1), R1=3 Ω , R2=5 Ω , R3=4 Ω , R4=9 Ω , and R5=9 Ω . Part A: What is the current flowing through resistor R1 (A)? Part B: What is the current flowing through resistor R2 (A)? Part C: What is the current flowing through resistor R3 (A)? Part D: What is the total power supplied by the battery (W)? ㄱ

For the circuit shown below: Preview In terms of Vo, R1, R2, R3, R4 C1, t, and s what is the time domain equation for the voltage at node out? Preview and s what is the s-domain equation the voltage...

For the circuit shown below: Preview In terms of Vo, R1, R2, R3, R4 C1, t, and s what is the time domain equation for the voltage at node out? Preview and s what is the s-domain equation the voltage at node out? In terms of Vo, RI, R2, R3,R4, C1, t, Preview and s what is the equation for τ? In terms ofVo, RI, R2, R3, R4, Cl, t, Ifthe voltage V1 at time-0 is 3 V RI=4 kQ,...
Assuming an ideal op-amp (1)find the 3dB frequency of the circuit, if R1=1.5 KΩ, R2=13.2 KΩ,...

Assuming an ideal op-amp (1)find the 3dB frequency of the circuit, if R1=1.5 KΩ, R2=13.2 KΩ, R3=20 KΩ, and C=5 nF 2)Consider the above circuit with the component values: R1=13.2 KΩ, R2= 795.77 Ω, R3=20 KΩ, and C=100 nF. Find the angle of the transfer function in degrees at 2KHz . - C R2 R1 + Vi(jw) Vo R3 H HI-
R1 = 12 kΩ , R2 = 14 kΩ , R3 = 12 kΩ , and...

R1 = 12 kΩ , R2 = 14 kΩ , R3 = 12 kΩ , and VA = 7 V in the circuit shown. a) Write the KVL equation for node 1. b) Find Io 0 +12 V R2

e circuit below includes 3 resistors in parallel, R1 = 1 kQ, R2 = 2 kQ,...

e circuit below includes 3 resistors in parallel, R1 = 1 kQ, R2 = 2 kQ, and R,-4kD ta) Dmine the equivalent resistance (Req), (b) use Ohm's Law to determine the circuit current, a use Ohm's law to determine the current through each resistor R1 R2 R3
