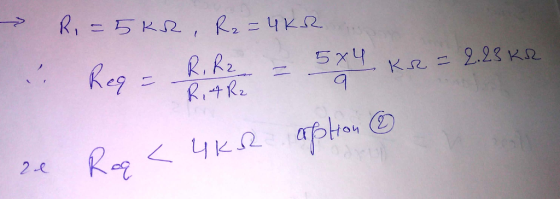

![[2] RI of this combination will be: i-5.0 kQ, and R2-4.0 kΩ are connected in parallel with each other. The equivalent resistance (1) Greater than 5.0 kQ. (2) Less than 4.0 kS2. (3) Between 5.0 kΩ and 4.0 kQ. (4) Other](http://img.homeworklib.com/questions/53f56b00-6f0a-11ea-a24c-859c3e5dc9ec.png?x-oss-process=image/resize,w_560)
Homework Answers
Add Answer to:
[2] RI of this combination will be: i-5.0 kQ, and R2-4.0 kΩ are connected in parallel...
[4] R1 = 600 kQ, and R2 = 200 kΩ are connected in series with each...
[4] R1 = 600 kQ, and R2 = 200 kΩ are connected in series with each other. Compute the equivalent resistance of this combination 4.
2l The resistors Ri and R2 are connected in parallel. R2 For this cireuit a. What...
2l The resistors Ri and R2 are connected in parallel. R2 For this cireuit a. What is the equivalent resist ance of the combination Ri and R2? b. What is the current through the battery? c. What is the voltage drop across the resistor Ra? d. What is the current through the resistor R2? e. What choice of Ri and Re would give the same current passing through the two resistors?
e circuit below includes 3 resistors in parallel, R1 = 1 kQ, R2 = 2 kQ,...
e circuit below includes 3 resistors in parallel, R1 = 1 kQ, R2 = 2 kQ, and R,-4kD ta) Dmine the equivalent resistance (Req), (b) use Ohm's Law to determine the circuit current, a use Ohm's law to determine the current through each resistor R1 R2 R3
Two 4.0-12 resistors are connected in parallel, and this combination is connected in series with 3.0...
Two 4.0-12 resistors are connected in parallel, and this combination is connected in series with 3.0 22. What is the equivalent resistance of this system? Ο ΠΩ Ο 7.0Ω Ο 5.0Ω Ο 1.2 Ω
(a) The equivalent resistance of a group of resistors connected in parallel is (i) greater than...
(a) The equivalent resistance of a group of resistors connected in parallel is (i) greater than any of the resistors in the group, (ii) less than any of the resistors in the group, or (iii) neither of the above. (b) The equivalent resistance of a group of resistors connected in series is (i) greater than any of the resistors in the group, (ii) less than any of the resistors in the group, or (iii) neither of the above. Justify your...
A circuit has three resistors. R2 and R3 are in parallel. This combination is then connected...
A circuit has three resistors. R2 and R3 are in parallel. This combination is then connected in series with resistor R1. It is known that R1=1 ohm, R2= 2 ohms, and R3= 3 ohms. Find the current through R2. The battery has 12 V. Ignore the internal resistance.
Three resistors R, -4.002, R2 = 8.00 2. & R = 12.0 are connected in parallel....
Three resistors R, -4.002, R2 = 8.00 2. & R = 12.0 are connected in parallel. a) Find the equivalent resistance for the parallel combination. Rog- b) If the parallel combination is connected to a 2.00 V power supply, find the total power dissipated by the resistors. c) If the same 3 resistors are connected in series and then connected to the same power supply, find the total power dissipated by the resistors.
11. [4 pts] A circuit consists of two resistors in parallel, Ri and R2, connected to...
11. [4 pts] A circuit consists of two resistors in parallel, Ri and R2, connected to a battery with emf of 12 V. The conventional current passing through the battery is 5 A. The conventional current through resistor R2 is 2 A. You may assume the connecting wires and the battery have negligible resistance. a) What is the resistance R1? B.4.0 Ω C. 2.4 Ω Answer D. 3.6 Ω E. 3.0 Ω A.6.0 Ω How much power is delivered by...
1. A circuit has three resistors connected to a 3.00-V battery in series: Ri -15.0, R2-10.02,...
1. A circuit has three resistors connected to a 3.00-V battery in series: Ri -15.0, R2-10.02, and Rs 25.02 Find the equivalent resistance, Roxy the total current in the circuit, Iin, and the voltage across EACH rsistor Vi. Vo and V.(10 pts total - 2 pts. each) E-so 2110.0-0 5.o.n total current in the circuit, Itot, and the current through EACH resistor, I, 1, and l. (10 pts. total - 2 pts. each) 2. The same resistors are now connected...
A 1 Ω RESISTANCE and a variable resistance R2 are connected (a) inseries, (b) In parallel....
A 1 Ω RESISTANCE and a variable resistance R2 are connected (a) inseries, (b) In parallel. For each Case draw a graph of the combination Resistance R vs R2 for 0<R<Infinity
[4] R1 = 600 kQ, and R2 = 200 kΩ are connected in series with each other. Compute the equivalent resistance of this combination 4.
2l The resistors Ri and R2 are connected in parallel. R2 For this cireuit a. What is the equivalent resist ance of the combination Ri and R2? b. What is the current through the battery? c. What is the voltage drop across the resistor Ra? d. What is the current through the resistor R2? e. What choice of Ri and Re would give the same current passing through the two resistors?
e circuit below includes 3 resistors in parallel, R1 = 1 kQ, R2 = 2 kQ, and R,-4kD ta) Dmine the equivalent resistance (Req), (b) use Ohm's Law to determine the circuit current, a use Ohm's law to determine the current through each resistor R1 R2 R3
Two 4.0-12 resistors are connected in parallel, and this combination is connected in series with 3.0 22. What is the equivalent resistance of this system? Ο ΠΩ Ο 7.0Ω Ο 5.0Ω Ο 1.2 Ω
Three resistors R, -4.002, R2 = 8.00 2. & R = 12.0 are connected in parallel. a) Find the equivalent resistance for the parallel combination. Rog- b) If the parallel combination is connected to a 2.00 V power supply, find the total power dissipated by the resistors. c) If the same 3 resistors are connected in series and then connected to the same power supply, find the total power dissipated by the resistors.
11. [4 pts] A circuit consists of two resistors in parallel, Ri and R2, connected to a battery with emf of 12 V. The conventional current passing through the battery is 5 A. The conventional current through resistor R2 is 2 A. You may assume the connecting wires and the battery have negligible resistance. a) What is the resistance R1? B.4.0 Ω C. 2.4 Ω Answer D. 3.6 Ω E. 3.0 Ω A.6.0 Ω How much power is delivered by...
1. A circuit has three resistors connected to a 3.00-V battery in series: Ri -15.0, R2-10.02, and Rs 25.02 Find the equivalent resistance, Roxy the total current in the circuit, Iin, and the voltage across EACH rsistor Vi. Vo and V.(10 pts total - 2 pts. each) E-so 2110.0-0 5.o.n total current in the circuit, Itot, and the current through EACH resistor, I, 1, and l. (10 pts. total - 2 pts. each) 2. The same resistors are now connected...
