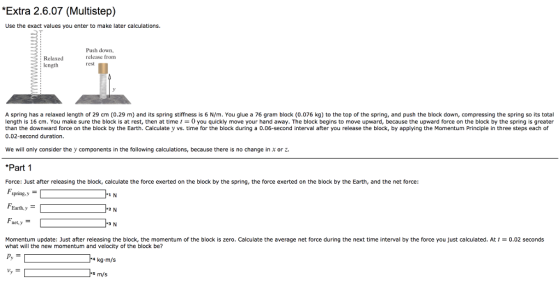

Extra 2.6.07 (Multistep) Use the exact values you enter to make later calculations. Push down, Relaxed ; length release from rest A spring has a relaxed length of 29 cm (0.29 m) and its spring stiffness is 6 N/m. You glue a 76 gram block (0.076 kg) to the top of the spring, and push the block down, compressing the spring so its total length is 16 cm. You make sure the block is at rest, then at time t 0 you quickly move your hand away. The block begins to move upward, because the upward force on the block by the spring is greater than the downward force on the block by the Earth. Calculate y vs. time for the block during a 0.06-second interval after you release the block, by applying the Momentum Principle in three steps each of 0.02-second duration We will only consider the y components in the following calculations, because there is no change in x or z Part 1 Force: Just after releasing the block, calculate the force exerted on the block by the spring, the force exerted on the block by the Earth, and the net force: spring.y FEarth..y- Fnet, y Momentum update: Just after releasing the block, the momentum of the block is zero. Calculate the average net force during the next time interval by the force you just calculated. At 0.02 seconds what will the new momentum and velocity of the block be? 4 kg-m/s -s m/sPosition update: Initially the bottom of the block is aty time t0.02 seconds? 0.16 m. Calculating the average velocity in the first time interval by the final velocity, what will be the new position of the bottom of the block at Answer * 1: the tolerance is +/-596 Answer * 2: the tolerance is +/-5% Answer *3: the tolerance is +/-5% Answer *4: the tolerance is +/-5% Answer *5: the tolerance is +/-596 Answer *6: the tolerance is +/-596 Attempts: o of 10 used *Part 2 Force: At the new position, calculate the force exerted on the block by the spring, the force exerted on the block by the Earth, and the net force (remember near the Earths surface, the gravitational force due to the Earth is very nearly constant): spring,y Earth,y net,y Momentum update: Calculate the average net force during the next time interval by the force you just calculated. At time t block be? 2 × 0.02 0.04 seconds, what will the new momentum and velocity of the kg.m/s s m/s Position update: Calculating the average velocity in the second time interval by the final velocity, what will be the new position of the bottom of the block at time t = 2 × 0.02 = 0.04 seconds?

0 0
Add a comment Improve this question Transcribed image text
Know the answer?
Add Answer to:
"Extra 2.6.07 (Multistep) Use the exact values you enter to make later calculations. Push down, Relaxed...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • Extra 2.6.07 (Multistep) Use the exact values you enter to make later calculations. Push down, from...

    Extra 2.6.07 (Multistep) Use the exact values you enter to make later calculations. Push down, from Relaxed length rest A spring has a relaxed length of 27 cm (0.27 m) and its spring stiffness is 6 N/m. You glue a 83 gram block (0.083 kg) to the top of the spring, and push the block down, compressing the spring so its total length is 17 cm. You make sure the block is at rest, then at time t0 you quickly...

  • A spring has a relaxed length of 36 cm (0.36 m) and its spring stiffness is...

    A spring has a relaxed length of 36 cm (0.36 m) and its spring stiffness is 9 N/m. You glue a 83 gram block (0.083 kg) to the top of the spring, and push the block down, compressing the spring so its total length is 19 cm. You make sure the block is at rest, then at time t = 0 you quickly move your hand away、The block begins to move upward, because the upward forc.e on th€ block by...

  • STEP 1 Force: Just after releasing the block, calculate the force exerted on the block by...

    STEP 1 Force: Just after releasing the block, calculate the force exerted on the block by the spring, the force exerted on the block by the Earth, and the net force: spring,r# 2.64 Earthy-6769 net.y - 1.96 0.676N 1.96 N Momentum update: Just after releasing the block, the momentum of the block is zero. Approximate the average net force during the next timel by the force you just calculated. At t0.07 seconds, what will the new momentum and velocity of...

  • Using a time step of 0.02 seconds, find the momentum and position of the block 0.04...

    Using a time step of 0.02 seconds, find the momentum and position of the block 0.04 seconds. Show all your work! Problem: A block of mass M 10 kg is attached by a spring with stiffness ks 120 N/m to the wall at the top of a slippery ramp as shown in the figure. The spring's relaxed length is Lo 1 m. Use g 10 m/s2, if it is needed. At time t 0 the spring's length is L 2...

  • Use the approximation that v→avg=p→f/m for each time step. A spring with a relaxed length of...

    Use the approximation that v→avg=p→f/m for each time step. A spring with a relaxed length of 25 cm and a stiffness of 17 N/m stands vertically on a table. A block of mass 75 g is attached to the top of the spring. You pull the block upward, stretching the spring until its length is now 30.9 cm, hold the block at rest for a moment, and then release it. Using a time step of 0.1 s, predict the position...

  • Use the approximation that v→avg=p→f/m for each time step. A spring with a relaxed length of...

    Use the approximation that v→avg=p→f/m for each time step. A spring with a relaxed length of 25 cm and a stiffness of 16 N/m stands vertically on a table. A block of mass 89 g is attached to the top of the spring. You pull the block upward, stretching the spring until its length is now 30.3 cm, hold the block at rest for a moment, and then release it. Using a time step of 0.1 s, predict the position...

  • Use the approximation that v→avg=p→f/m for each time step. A spring with a relaxed length of...

    Use the approximation that v→avg=p→f/m for each time step. A spring with a relaxed length of 25 cm and a stiffness of 16 N/m stands vertically on a table. A block of mass 89 g is attached to the top of the spring. You pull the block upward, stretching the spring until its length is now 30.3 cm, hold the block at rest for a moment, and then release it. Using a time step of 0.1 s, predict the position...

  • Use the exact values you enter to make later calculations. A group of students performed the...

    Use the exact values you enter to make later calculations. A group of students performed the same "Newton's Second Law" experiment that you did in class. For this lab, assume g = 9.81 m/s2. They obtained the following results: m1(kg) t1(s) v1(m/s) t2(s) v2(m/s) 0.050 1.2000 0.2500 1.7279 0.5177 0.100 1.2300 0.3240 1.6064 0.7186 0.150 1.1500 0.3820 1.4591 0.9120 0.200 1.1100 0.4240 1.3806 1.0839 where m1 is the value of the hanging mass (including the mass of the hanger), v1...

  • Use the exact values you enter to make later calculations. A group of students performed the...

    Use the exact values you enter to make later calculations. A group of students performed the same "Newton's Second Law" experiment that you did in class. For this lab, assume g = 9.81 m/s2. They obtained the following results: m1(kg) t1(s) v1(m/s) t2(s) v2(m/s) 0.050 1.2000 0.2500 1.8108 0.3849 0.100 1.2300 0.3240 1.6360 0.6412 0.150 1.1500 0.3820 1.4768 0.8120 0.200 1.1100 0.4240 1.3935 1.0067 where m1 is the value of the hanging mass (including the mass of the hanger), v1...

  • Use the approximation that for each time step. A spring with a relaxed length of 25...

    Use the approximation that for each time step. A spring with a relaxed length of 25 cm and a stiffness of 16 N/m stands vertically on a table. A block of mass 78 g is attached to the top of the spring. You pull the block upward, stretching the spring until its length is now 29.5 cm, hold the block at rest for a moment, and then release it. Using a time step of 0.1 s, predict the position and...
