A 3.85-kHz tone is being produced by a speaker with a diameter of 0.259 m. The...

A 3.85-kHz tone is being produced by a speaker with a diameter of 0.259 m. The air temperature changes from 0 to 28 oC. Assuming air to be an ideal gas, find the change in the diffraction angle θ.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

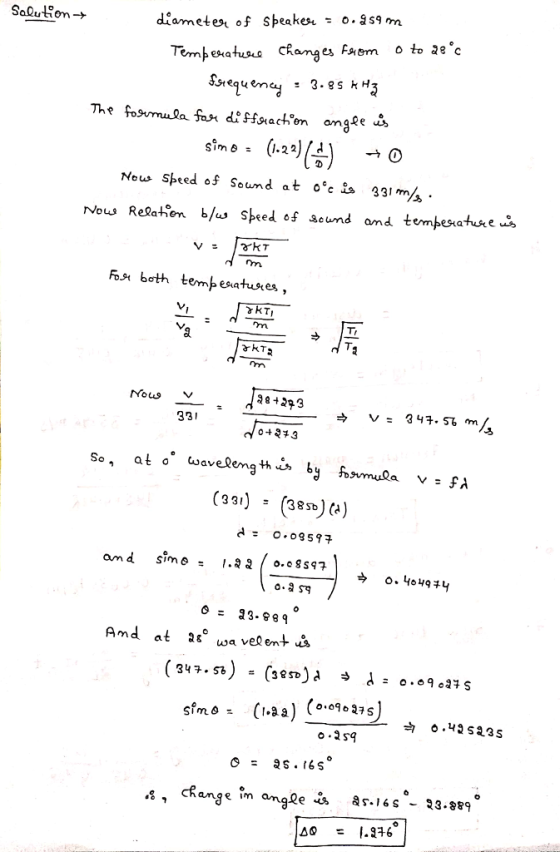

Answer #1

diametes of Speakesi - o. 3s9 m simo: (1.23/4) Neus Speed o Sound t 331 m/s Now Re2atoen b/w speed of sc und and tem+esatuke

0 0
