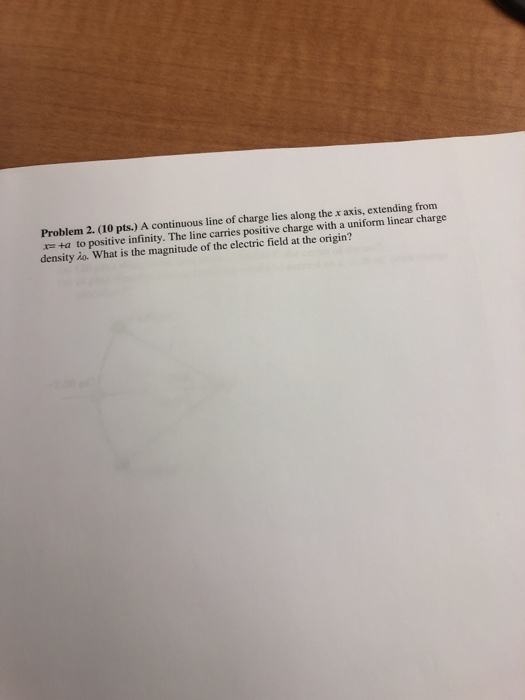

Problem 2. (10 pts.) A continuous line of charge lies along the x axis, extending from...

Question

Question

science physics

Answer 1

Answer #1

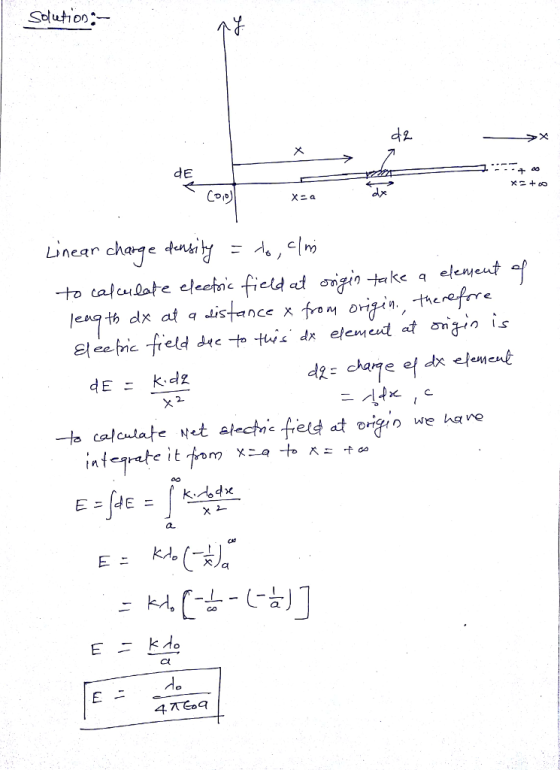

Solution de E - k do

Answer 2

Similar Homework Help Questions

LC-3 A line of positive charge lies along the x axis extending from x-0 to x-L....

LC-3 A line of positive charge lies along the x axis extending from x-0 to x-L. The total charge Q on the lines is evenly distributed along the length L. Find the net electric field at point P, which is a distance 'a' from the origin on the x axis as shown in the figure to the right. Follow the steps in the "Procedure for Applying Coulomb's Law" that is in the "Worksheets" handed out the first day of class....
5.(10 points) A uniform line charge with a charge density +24.5 nC/m runs along the x-axis...

5.(10 points) A uniform line charge with a charge density +24.5 nC/m runs along the x-axis from the origin to "infinity". An observer is located on the x-axis at x- -15.0 cm. What is the electric field at the location of this observer (due to the line charge)? [Include magnitude and direction in your answer.] [minor Hint: the solution to this problem does involve integration; if your solution does not, then it is not a correct solution.] Ans.
A line of charge with uniform density of 32.0 nC/m lies along the line y =...

A line of charge with uniform density of 32.0 nC/m lies along the line y = -15.0 cm, between the points with coordinates x = 0 and x = 48.0 cm. Find the electric field it creates at the origin. Magnitude N/C Direction ° (counterclockwise from the +x axis)

A charge of uniform density (0.86nC / m) is distributed along the x axis from the...

A charge of uniform density (0.86nC / m) is distributed along the x axis from the origin to the polnt x = 10 cm What is the electric potential (relative to zero at Infinity) at a point, x = 22 cm on the x axis? Hint: Use Calculus to solve this problem. the answer is not 5.364 nor 5.3649 A charge of uniform density (0.86nc/m) is distributed along the x axis from the origin to the point - 10 cm....
LC-4 A vertical line of linear charge density λ 5.00x10-6cm y 0.750m lies on the y...

LC-4 A vertical line of linear charge density λ 5.00x10-6cm y 0.750m lies on the y axis extending from the origin down to y-0.750m. a) Find the magnitude of Eneto the x component of the electric field at point P produced by the line of charge. Point P lies on the x axis at x=+0.750m. 750m b) Find the magnitude of Enety, the y component of the electric field at point P produced by the line of charge.
Will thumbs up. Please show all work and explain A semi-infinite line charge, extending from x...

Will thumbs up. Please show all work and explain A semi-infinite line charge, extending from x = 0 to x = ∞, carries a uniform charge density λ C/m. Calculate the electric field at the point along the x-axis with coordinate x = -1 m.

2. A line of charge with uniform density of 38.0 nC/m lies along the line y...

2. A line of charge with uniform density of 38.0 nC/m lies along the line y 12.0 cm between the points x 5.0 cm and 40.0 cm. Calculate the electric field (both the magnitude and direction) at the origin due to this charge distribution. (2436 N/C, 137.9°)
A thin rod of length L lies along the x-axis. It has a uniform linear charge distribution λ0.

A thin rod of length L lies along the x-axis. It has a uniform linear charge distribution λ0. a) What is the value of the electric potential at a given point x located to the right of the rod? Take V=0 at infinity.b) What is the strength of the electric field at the point x?
An infinite line of uniform positive charge runs along the x axis and has a line...

An infinite line of uniform positive charge runs along the x axis and has a line charge density of λ= 24.7mnC. Consider the point (0 m, 3.42 m) which is located 3.42 meters above the infinite line. What is the magnitude of the electric field at this point?

An infinite line of uniform positive charge runs along the x axis and has a line...

An infinite line of uniform positive charge runs along the x axis and has a line charge density of λ=24.9 m / nC . Consider the point (0 m, 6.99 m) which is located 6.99 meters above the infinite line. What is the magnitude of the electric field at this point?
