Find the magnification for an object that is 40 cm in front of a thin concave...

Find the magnification for an object that is 40 cm in front of a thin concave lens formed by cutting two spherical segments (radii 20 cm and 40 cm ) out of glass with an index of refraction of 1.8.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

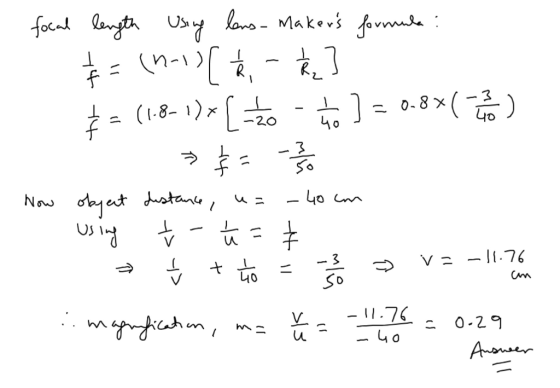

Answer #1

너o 0 CAn

0 0
Add a comment
Know the answer?
Add Answer to:
Find the magnification for an object that is 40 cm in front of a thin concave...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • An object placed 20 cm in front of a lens results in an image being formed...

    An object placed 20 cm in front of a lens results in an image being formed 24 cm behind the lens. Each surface of the lens is convex (bulging away from the optical plane) with the same radius of curvature, and the index of refraction of the glass composing the lens is Tiens =1.4. What is the radius of curvature of either side of this lens (to the nearest tenth of a cm)? Note, once again, the focal length of...

  • 1.) A double-concave lens focal length -20 cm has an object placed at a distance of...

    1.) A double-concave lens focal length -20 cm has an object placed at a distance of 30 cm in front of it. How far from the mirror is the image formed? On what side of the lens is the image formed? What is the magnification? Is the image real or virtual? Upright or inverted? 2.) The second order fringe is located 5-cm from the central fringe when formed by a 10 lines/mm diffraction grating on a screen 5 meters away....

  • The figure below shows a thin converging lens for which the radii are R1 = 9.70...

    The figure below shows a thin converging lens for which the radii are R1 = 9.70 cm and R2 = -10.7 cm. The lens is in front of a concave spherical mirror of radius R = 7.32 cm. If its focal points F1 and F2 are 4.96 cm from the vertex of the lens: a) Determine its index of refraction. b) If the lens and mirror are 21.3 cm apart and an object is placed 8.63 cm to the left...

  • The figure below shows a thin converging lens for which the radii are R1 = 9.32...

    The figure below shows a thin converging lens for which the radii are R1 = 9.32 cm and R2 = -11.4 cm. The lens is in front of a concave spherical mirror of radius R = 7.92 cm. If its focal points F1 and F2 are 4.60 cm from the vertex of the lens: a) Determine its index of refraction. b) If the lens and mirror are 19.7 cm apart and an object is placed 8.21 cm to the left...

  • An object is placed 50 cm in front of a thin lens with a focal length...

    An object is placed 50 cm in front of a thin lens with a focal length of +18 cm. Where is the image formed Please explain in details Light reáects from the surface of an object and the reáected light is found to be completely polarized when the angle of incidence is 67 degrees. What is the index of refraction of the object

  • An object is placed in front of a concave mirror with a focal length of 5...

    An object is placed in front of a concave mirror with a focal length of 5 cm . The image formed is at a distance of 7.5 cm behind the mirror. The magnification factor m= An object is placed in front of a concave mirror with a focal length of 10 cm . The image formed is at a distance of 20 cm on the same side of the mirror. The magnification factor m= An object is placed in front...

  • An object is placed 9.10 cm in front of the cornea. (The cornea is thin ans...

    An object is placed 9.10 cm in front of the cornea. (The cornea is thin ans has approximately parallel sides so that the reflection that occurs as light travels from air to cornea to aqueous humor is essentially the same as though the aqueous humor were directly in contact with the air. The aqueous humor has index of refraction n = 1.34 and the radius of curvature of cornea is 7.8 mm.) (a) What is the image distance for the...

  • An object is placed 10.6 cm in front of the cornea. (The cornea is thin ans...

    An object is placed 10.6 cm in front of the cornea. (The cornea is thin ans has approximately parallel sides so that the reflection that occurs as light travels from air to cornea to aqueous humor is essentially the same as though the aqueous humor were directly in contact with the air. The aqueous humor has index of refraction n = 1.34 and the radius of curvature of cornea is 7.8 mm.) (a) What is the image distance for the...

  • A concave lens has a focal length of -36 cm. Find the image distance and magnification...

    A concave lens has a focal length of -36 cm. Find the image distance and magnification that results when an object is placed 19 cm in front of the lens. (Use the proper sign convention for both quantities.) When an object is located 61 cm to the left of a lens, the image is formed 25 cm to the right of the lens. What is the focal length of the lens? An object with a height of 2.22 cm is...

  • *Question 214: Thin Convex Lens/Magnification A thin convex lens has focal length 20 cm. An object...

    *Question 214: Thin Convex Lens/Magnification A thin convex lens has focal length 20 cm. An object is placed 40 cm from the lens. What is the magnification of the image? Select one: O a. 1 (the object stays the same size and is not inverted.) O b.-1 (The object stays the same size and is inverted.) O c. 40 cm O d. -40cm o e.-2 *Question 183: Light Properties Which of the following is not true: Select one: O a....
