Exercise 4 Tek Run: 10MS/sSample . Exercise What is the volts per division? What is the time per division? .Which Channel is active? Measure the peak-to-peak voltage (Vpp) what is the 10%-90% Rise-time . Your Answer Volts per vertical division: What is the time per horizontal division: V/div= t/div- . Which Channel is active: CH . Vpp: . Rise-time: Vpp- Rt Schoelen, Rev B

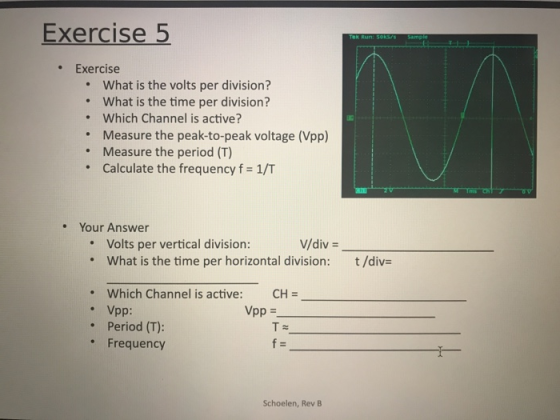

Exercise 5 . Exercise What is the volts per division? What is the time per division? Which Channel is active? Measure the peak-to-peak voltage (Vpp) Measure the period (T) Calculate the frequency f = 1/T . . · . Your Answer Volts per vertical division: what is the time per horizontal division: V/div- t /div= . Which Channel is active: Vpp: Period (T): CH- . Vpp = . Frequency Schoelen, Rev B

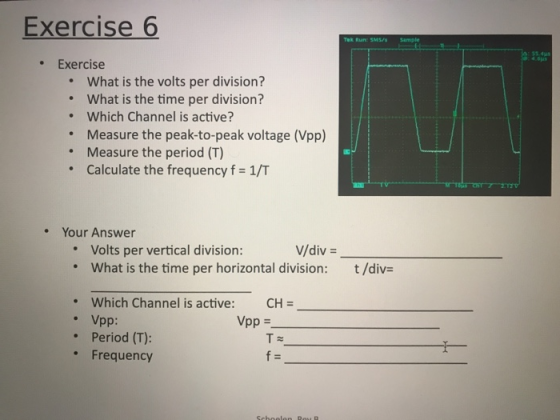

Exercise 6 55 41s 4 0μι .Exercise What is the volts per division? What is the time per division? Which Channel is active? Measure the peak-to-peak voltage (Vpp) Measure the period (T) Calculate the frequency f 1/T . . . . Your Answer V/div- Volts per vertical division: . what is the time per horizontal division: t/div= Which Channel is active: CH- Vpp: Period (T): Vpp = . Frequency f=
0 0
Add a comment Improve this question Transcribed image text
Answer #1

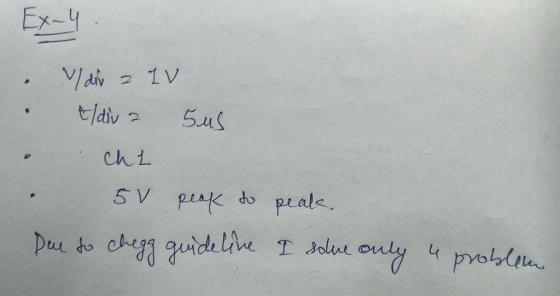

dv Su chi

Add a comment
Know the answer?
Add Answer to:
Exercise 4 Tek Run: 10MS/sSample . Exercise What is the volts per division? What is the...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • Analog Oscilloscope Setup: 1. Turn on the power to the oscilloscope. 2. Connect the function gene...

    Analog Oscilloscope Setup: 1. Turn on the power to the oscilloscope. 2. Connect the function generator to the Channel 1 input on the oscilloscope 3. In the Vertical Control Group, set the Channel 1 AC/GND/DC switch to AC. 4. Set the Volts-per-Division knob 5. Intensity knob: adjust the signal intensity and focus to a comfortable level by using the intensity and focus knobs, respectively Set the seconds-per-division knob 6. Assignment Procedures: 1. Using the settings completed above, answer the following...

  • Problems 1 through 8 refer to the sinusoidal waveforms on the right, which are displayed on...

    Problems 1 through 8 refer to the sinusoidal waveforms on the right, which are displayed on an oscilloscope having the following settings: Channel 1 Vertical Axis: 1 V/Division Channel 2 Vertical Axis: 50 mV/Division Horizontal Axis: 1 ms/Division The zero-volt level is at the center of the screen for both channels. Consider the left edge of the screen to be the t=0 axis. Consider the waveform displayed on Channel 1 as the output voltage of a function generator. In ze...

  • *USE Multisim( Provide Pictures of work on Multisim for each step) and Fill the Tables Below...

    *USE Multisim( Provide Pictures of work on Multisim for each step) and Fill the Tables Below PROCEDURE: Review the front panel controls in each of the major groups. Then turn on the oscilloscope, select Chl, set the SEC/DIV to 0.1 ms/div, select AUTO triggering, and obtain a line across the face of the CRT. Although many of the measurements described in this experiment are automated in newer scopes, it is useful to learn to make these measurements manually. Turn on...

  • The oscilloscope display below is connected to a sine wave of 100 Hz frequency and 4...

    The oscilloscope display below is connected to a sine wave of 100 Hz frequency and 4 volt amplitude, 100 us seconds/div, and 2 volts/div. What control(s) on the oscilloscope need to be adjusted to bring this signal into focus so that it displays a sine wave? The oscilloscope display below is connected to a sine wave of 150 Hz frequency , 2 ms seconds/div, and 1 volts/div. What control(s) on the oscilloscope need to be adjusted to bring this signal...

  • #6 table 2 8 LABORATORY REPORT 1C. TIME/DIV-S IC VOLTS/DIV-SV A VOLTS/DIV V ov o v...

    #6 table 2 8 LABORATORY REPORT 1C. TIME/DIV-S IC VOLTS/DIV-SV A VOLTS/DIV V ov o v 0 s 2A. TIME/DIN-S2B. TIME/DIV 2C TIME/DIV-mS 2C. VOLTS/DIV o V 0 s 60033 0 s 3A. TIME/DIV-m 3A, VOLTS/DIV=-, 3B. TIME/DIV-1m 3B. VOLTS/DIV o v 0 s 0 s 388 Physics Laboratory Mamual Loyd A. TIME/DIV- ms 4A. VOLTS/DIV-LV o v ov 0 s 0 s 0 s Data Table 1 X Data Table 2 Voltmeter (V Voltmeter V 1.00 2.00 3.00 4.00...

  • hy I need answers of these questions according to data sheet. thank you DATA SHEET PARTI...

    hy I need answers of these questions according to data sheet. thank you DATA SHEET PARTI TIME/DIV ims VOLTS/DIV=_IV PEAK VOLTAGE V_47 toms TIME/DIV=_ms VOLTS/DIV-5V PEAK VOLTAGE V_42 PERIOD TO_loms PERIOD T- PART 1 SINEWAVE Vrms (VOLTS) VP (VOLTS) (Voltmeter) (oscilloscope) 7:07 10 3.57 5 2: 78 4 2.10 3 2 Slope=0.707V TIME/DIV=_ams VOLTS/DIVE PEAK VOLTAGE V=_41_ PERIOD T=_toms PART III SQUAREWAVE VAMS (VOLTS) VP (VOLTS) (Voltmeter) (oscilloscope) 10.9 do 542 S 4.4 4 3:3 고 2-2 Slope 0-92-1v PART...

  • What is the value for t if you take this circuit and assume R = 4,7...

    What is the value for t if you take this circuit and assume R = 4,7 kg and C = 100 uF. What is the resonance frequency of the circuit? Ru Hout Rv = 2200 R = 1 ko L = 680 mH C = 1 uF What is the RMS voltage of the shown signal if the vertical scale is 1 V/div and the horizontal scale is 50 ms/div? What is the period of the shown signal if the...

  • NI ELVISmx Basic Settings Advanced Settings Sample Rate: 200.00iS Oane10 Settings Channel 1 Settings Source AI 1 At 0 Enabled Probe Scale Volts,01, Poston pv) 100 mV 200 mV Trigger Type Sope Level M...

    NI ELVISmx Basic Settings Advanced Settings Sample Rate: 200.00iS Oane10 Settings Channel 1 Settings Source AI 1 At 0 Enabled Probe Scale Volts,01, Poston pv) 100 mV 200 mV Trigger Type Sope Level M Horizontal positon (%) 50 200 us T: 250.00 umeout Ci: 489.99 C284.13 mV CHO Meas RMS:345.95 mV Freq: 999.998 Hz Vpp: 979.42 m CH1 Meas: RMS: 59.46 mV Freq: 999.928 Hz pp: 168.31 m Instrument Control Acquiation Mode Print Log Help Autoscale Cursors OnCi CHO Fig....

  • 5,6,7 5- Theoretical Part: For the same above circuit (Part B), First, change Rx to 2.2K....

    5,6,7 5- Theoretical Part: For the same above circuit (Part B), First, change Rx to 2.2K. What is the maximum peak input voltage before Vout just saturates? Assume the dc input is still at 1.5V (unchanged) (Assume Vsat = 10Volts ) Vin(pk) maximum = ......................-Volts 6- Verify the theoretical result in 5 by slowly varying the amplitude of the input signal until Vout just saturates (about to saturate). What is the corresponding Vin(pk)? Vin(pk) maximum = ................. Volts 7. If...

  • Question 4) (a) In an experiment to measure the capacitance of a capacitor an oscilloscope was...

    Question 4) (a) In an experiment to measure the capacitance of a capacitor an oscilloscope was connected across the capacitor. The diagram below shows an AC waveform that is displayed on the oscilloscope's screen. The oscilloscope settings are: Y-axis is the voltage 4.0 V per division, X- axis is the time base 1.0 ms per division. For the waveform shown, (0) What is the peak voltage across the capacitor? (1) (ii) Calculate the r.m.s voltage across the capacitor. (2) (iii)...
