Question

For the following circuit:

1

At t=0 the voltage drop on the capacitor is V_{c}=0 and points s and 1 are connected.

1) Which of the following statement describe what will happen in the circuit ? (select one)

a. The capacitor will be charged to a final voltage of E-IR , with I being the current in the circuit

b. The capacitor will disconnect the circuit so no current will exist

c. The voltage will oscillate at an angular frequency of (LC)-12

d. The voltage will oscillate at an angular frequency of of (RC)-1

e. The capacitor will be charged to a final voltage of E

2) After a long period, we connect s-2. What will happen to the circuit now?

a. There will be oscillations in the current (voltage) at a frequency of (RC)-1

b. There is no voltage source in the circuit, so no current will exist.

c. The capacitor will discharge through the coil in an exponential manner, with a time constant of RC

d. There will be oscillations in the current (voltage) at a frequency of (LC)-12

e. The capacitor will discharge through the coil in an exponential manner, with a time constant of LC)1/2

3) We choose the connection moment of s-2 to be t=0.

For the following values : V = 8.8V. R = 5.562. C = 2.311 F. L = 5.2m. H . What is the closest time that the connection can be switched back to s-1, so that no current will flow in the upper circuit ?

0 0
Add a comment Improve this question Transcribed image text
Answer #1

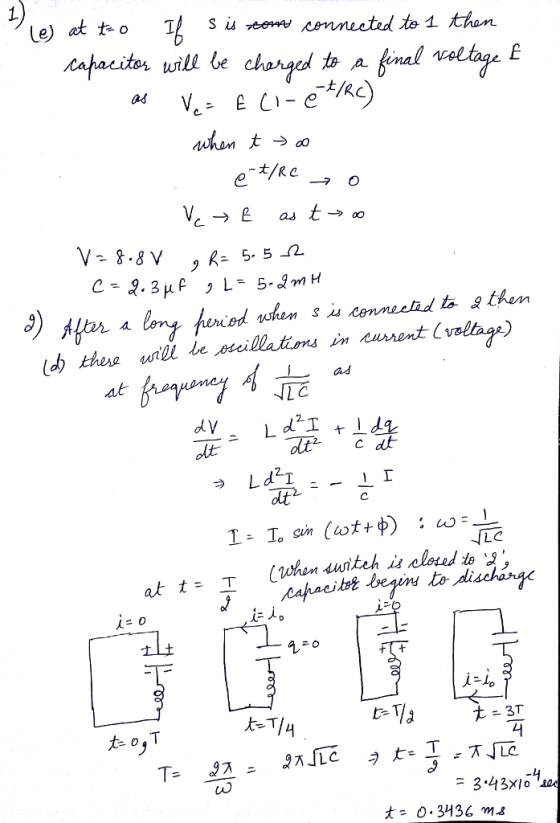

0s -t/RC as V-8.8V ,R, 5, 5」 d V 2 olt LC た。, = 3.4 3x10m 丈= 0.3436

please rate it up thanks :)
